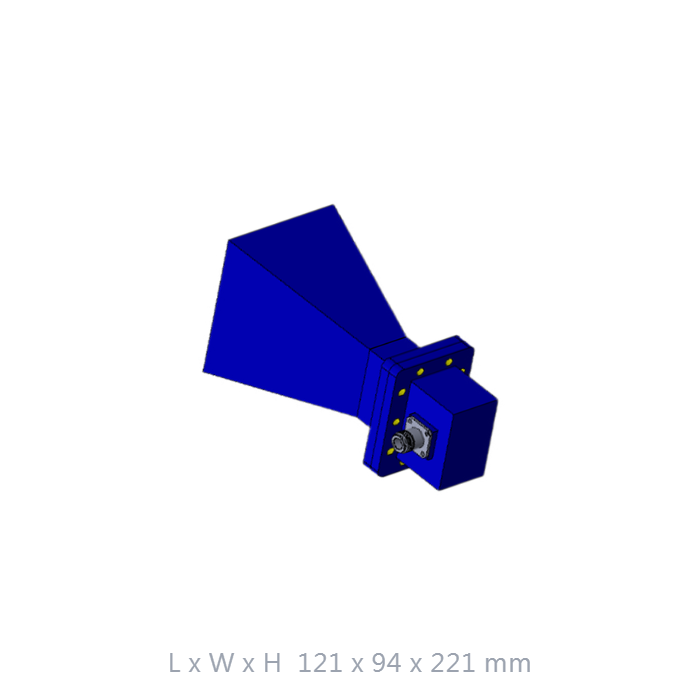

WR229 3.3GHz to 4.9GHz 10dbi Standard Gain Waveguide Horn Antenna, UDR Flange, N-Female Connector

WR229 3.3GHz to 4.9GHz 10dbi Standard Gain Waveguide Horn Antenna, UDR Flange, N-Female Connector

Model No: HS-229-UDR-10A-NF

Mechanical Drawing: Download

  • Waveguide Type: WR-229
  • Frequency: 3.3 GHz to 4.9 GHz
  • Waveguide Coaxial Adapter Model: WC-187-UDR-NF
  • Waveguide input Mode: WI-187-UDR-20
  • Connector: N-Female(SUS)
  • V.S.W.R: 1.25
  • Gain: 10 dBi
  • Wieght(g): 6700
  • Size (mm): 121x94x221
Quantity:
INQUIRY

  • Description & Specification

  • Model: HS-229-UDR-10A-NF
  • Waveguide: WR-229
  • Frequency: 3.3 GHz to 4.9 GHz
  • Gain: 10 dBi
  • Max Power (W): 300
  • -3dbi beamwidth H-plane: 56 deg
  • -3dbi beamwidth E-Plane: 54 deg
  • Size (mm): 121x94x221
  • Weight (g): 6700
  • Waveguide Flange: CPR 229F/ G(UDR)
  • V.S.W.R: 1.25
  • Body Material: Aluminium
  • Connector: N-Female(SUS)
