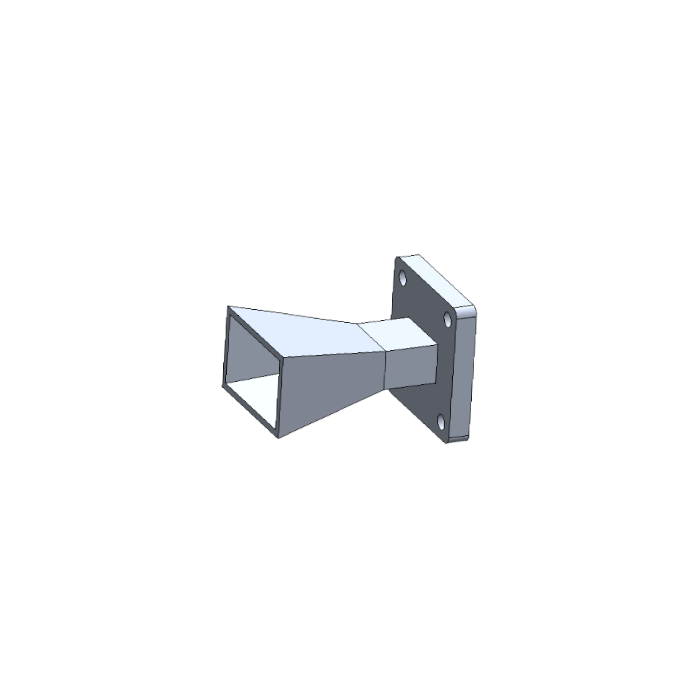

15.0 GHz to 22.0 GHz WR-51 K-Band Standard Gain Horn Antenna
10 dBi Gain Precision | Direct Waveguide Input | Model: WI-51-UBR-10
The WI-51-UBR-10 is a high-precision K-Band Standard Gain Waveguide Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for definitive electromagnetic measurements and high-frequency communication operations within the continuous 15.0 GHz to 22.0 GHz spectrum. Designed as an uncompromised calibration standard, this premium radiator provides a highly predictable and consistent nominal gain profile of 10 dBi combined with perfectly symmetric 54° horizontal and vertical radiation envelopes. Featuring a Direct Waveguide Input equipped with a standardized UBR Style square interface flange, it completely eliminates transition insertion losses from external coaxial adapters to achieve peak signal fidelity and low return loss metrics. Precision CNC machined from high-grade aerospace structural aluminum alloy in Taiwan, the robust housing effortlessly sustains continuous wave power loads up to 500 Watts (CW). It stands as the essential choice for automated anechoic chamber testing, satellite sub-system evaluation, precision antenna characterization ranges, and mission-critical Signal Defense infrastructure deployments requiring outstanding electrical integrity.
Electrical & RF Performance
| Frequency Range Class | 15.0 GHz to 22.0 GHz (Continuous Spectral Optimization) |
| Waveguide Standard Size | EIA WR-51 / R180 / WG19 Layout Geometry Architecture |
| Nominal Gain (Typical) | 10 dBi (Calibrated Reference Profile) |
| V.S.W.R Profile (Max) | ≤ 1.3 : 1 (Precision Minimal Reflection Performance) |
| Maximum Power Handling | 500 Watts (CW Continuous Wave Thermal Limit) |
| -3dB Beamwidth (H/E Plane) | 54° / 54° (Symmetric Pattern Optimization) |
| Nominal System Impedance | 50 Ohms |
Mechanical & Material Specs

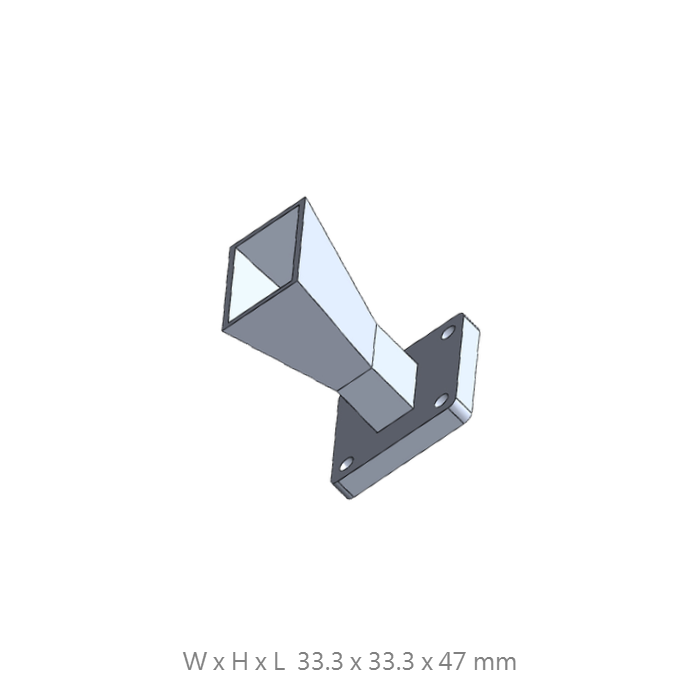

| Physical Dimensions (W x H x L) | 33.3 x 33.3 x 47 mm |

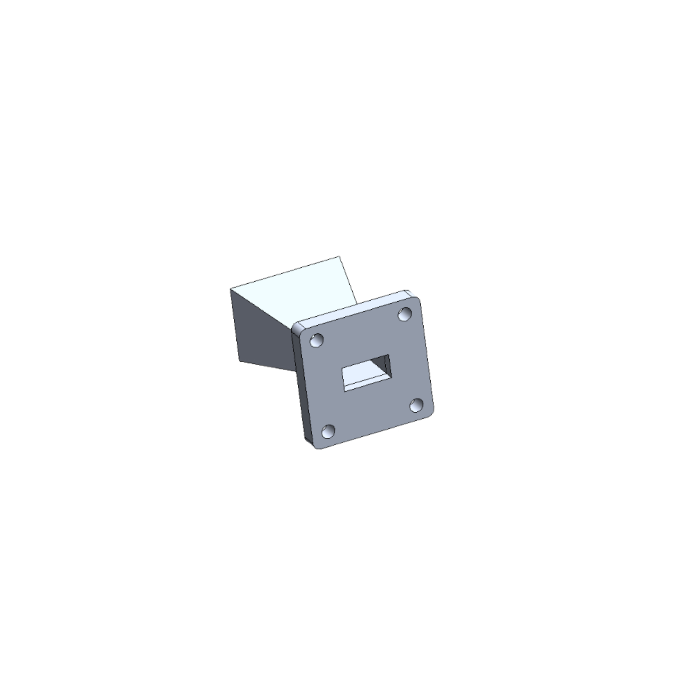

| Waveguide Interface Flange | Standardized UBR Style Square Flange Layout Interface |
| Input Interface Launcher | Direct Waveguide Input (No Adapter Power Loss) |
| Structural Body Material | High-Grade Aerospace-Grade Machined Aluminum Core |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Professional Grade) |
Symmetric Beam Precision
Equipped with matched 54° E/H plane beamwidths, providing the ultra-stable radiation pattern necessary for repeatable laboratory measurements and high-fidelity chamber calibration.
Signal Defense Radiator
Capable of managing up to 500W of input power while maintaining structural integrity, making it suitable for both sensitive receiving and high-intensity defense operations.
Industrial Grade Architecture
Fully machined from high-quality aerospace aluminum for maximum structural rigidity and environmental durability in tactical field deployments or lab infrastructures.
Adaptive Deployment
Supports custom mounting designs, including PTZ controlling functions and specialized tripod adapters for mobile monitoring sub-systems or specialized research setups.
Contact FT-RF Engineering Team
Contact our technical engineering division today to request official quote sheets, individual radiation patterns, customized waterproof builds, or specialized tripod mounting interfaces.
