Description & Specification

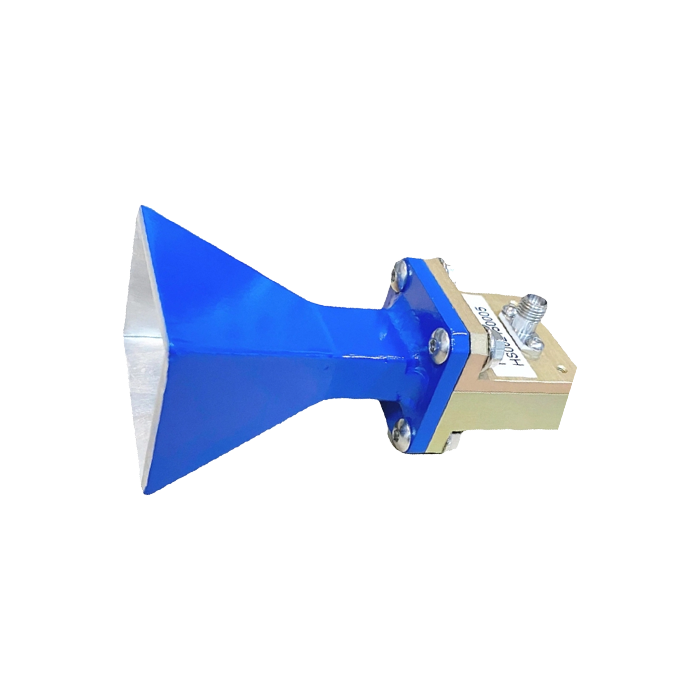

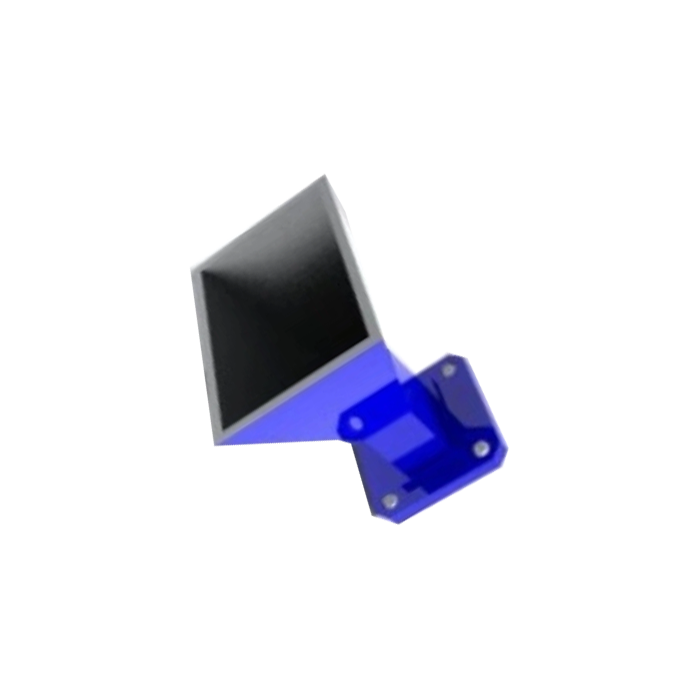

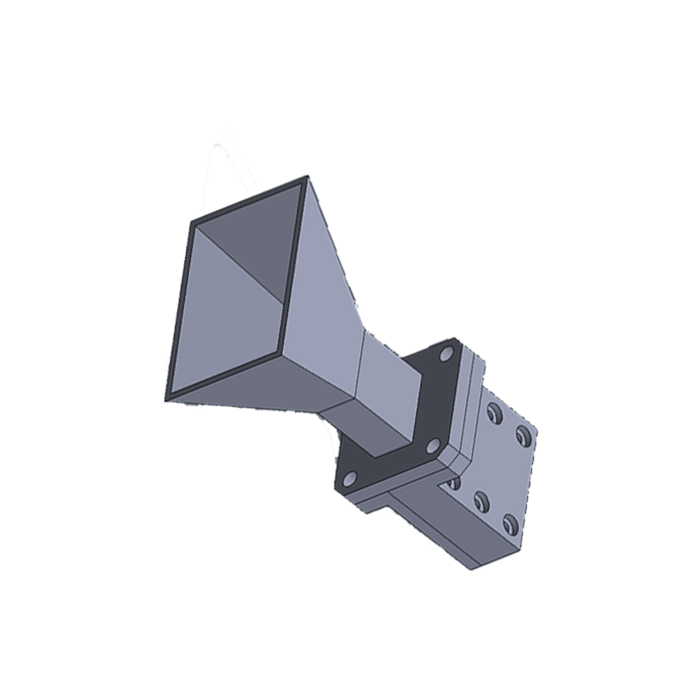

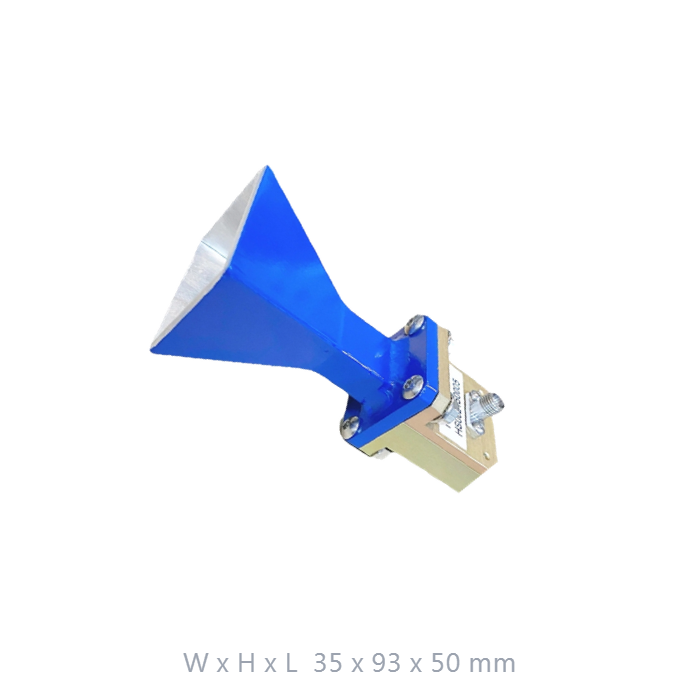

Ku-Band High Precision Horn
WR-62 Waveguide | 12.4 GHz – 18 GHz | 13 - 17 dBi
The HS-062-UBR-10-SF is a laboratory-grade standard gain horn antenna professionally engineered for Ku-band microwave measurement and calibration. Spanning the 12.4 GHz to 18 GHz spectrum, it delivers a stable gain profile of 13-17 dBi with a specialized UG-599/U flange interface. Constructed from high-grade aluminum alloy with a stainless steel SMA-Female connector, this antenna is an indispensable instrument for Signal Integrity verification, antenna gain measurements, and professional EMI/EMC testing where traceable results and structural reliability are paramount.
Technical Specifications
Electrical RF Performance
[Image of standard gain horn antenna radiation pattern]
| Frequency Range | 12.4 GHz - 18 GHz (Ku-Band) |
| Antenna Type | Directional Horn |
| Nominal Gain | 13 dBi to 17 dBi |
| V.S.W.R | < 1.5 : 1 |
| Antenna Factor | 38 - 41 dB/m |
| -3dB Beamwidth | Horizontal: 30° | Vertical: 32° |
| Max Power Handling | 250 Watts |
