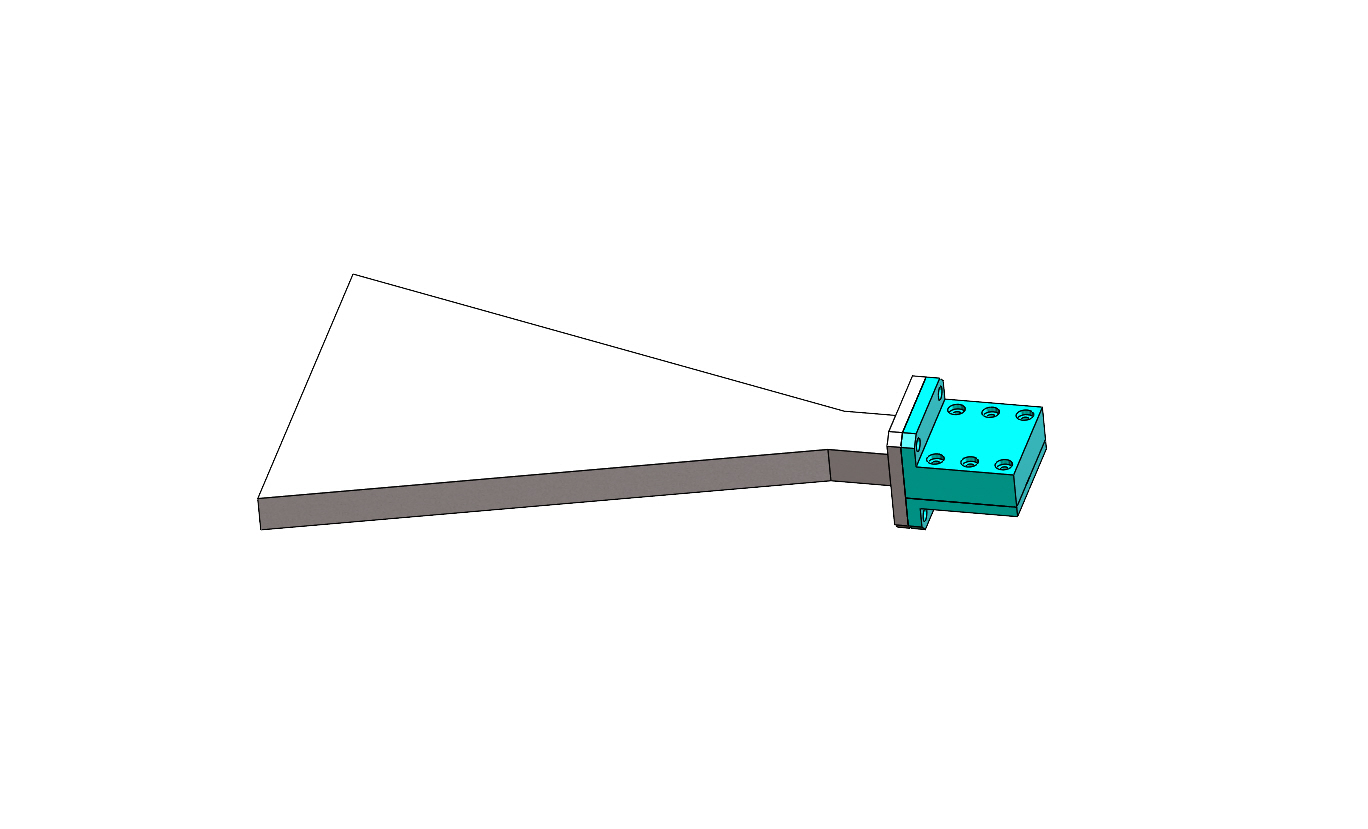

HS-062-UBR-10H-SF
WR62 Ku-Band H-Plane Sector Waveguide Horn Antenna | 12.4 to 18.0 GHz
The HS-062-UBR-10H-SF is a high-performance WR62 H-Plane Sector Waveguide Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for specialized microwave measurements and high-frequency testing environments. Operating within the Ku-Band spectrum across the continuous 12.4 to 18.0 GHz frequency range, this premium sectoral antenna is expertly flared in the H-plane to deliver a highly accurate nominal gain of 10 dBi. Featuring a standard UG-2664/U (UBR Style) flange interface layout paired with a precision stainless steel SMA-Female coaxial transition adapter, it ensures flawless structural impedance integration and low-loss power transfer. Safely managing continuous wave power loads up to 300 Watts, this robust radiator is precision structured from high-grade aluminum alloy in Taiwan. Weighing a compact 40g with an ultra-lightweight profile, it exhibits exceptional mechanical reliability and low reflection metrics paired with a maximum V.S.W.R threshold of 1.25, making it the definitive choice for radar instrumentation, satellite tracking networks, and broad-spectrum EMI/EMC compliance validation setups.
Electrical & RF Performance
| Frequency Range Class | 12.4 to 18.0 GHz (Continuous Ku-Band Spectral Optimization) |
| Waveguide Standard Size | EIA WR-62 / WG18 / R140 Layout Geometry |
| Nominal Gain (Typical) | 10 dBi (H-Plane Sector Optimization) |
| V.S.W.R Profile (Max) | 1.25 : 1 (Precision Minimal Reflection Performance) |
| Maximum Power Handling | 300 Watts (CW Continuous Wave Thermal Limit) |
| Nominal System Impedance | 50 Ohms |
Mechanical & Material Specifications

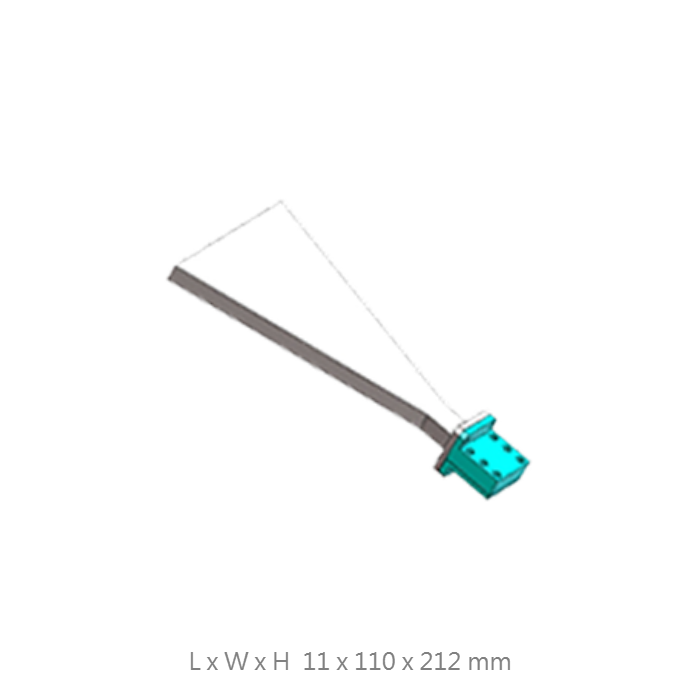

| Physical Dimensions (W x H x L) | 33.4 x 33.3 x 32.5 mm |
| Antenna Net Weight Profile | 40 g (Ultra-Lightweight Precision Footprint) |
| Waveguide Flange Interface | Standardized UG-2664/U (UBR Style Flange Layout face) |
| Coaxial Connector Type | SMA-Female Interface Port |
| Material Architecture Composition | Aluminum Body with Stainless Steel Coaxial Adapter |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Professional Grade) |
H-Plane Sector Optimization
Specialized sectoral flare yields accurate asymmetric radiation patterns in the H-plane, making it ideally suited for directional emission scanning and radar calibration.
Ultra-Compact & Lightweight Profile
Weighing only 40g with an exceptionally compact outline, this radiator delivers industrial-strength performance without adding load burdens to positioner fixtures.
Stainless Steel Connector Durability
Equipped with a premium stainless steel connector interface layout, ensuring superior mechanical connection durability across intensive lab duty cycles.
300W CW Power Stability
Robust aluminum frame architecture handles high continuous wave inputs up to 300W safely while maintaining long-term pattern integrity metrics.
