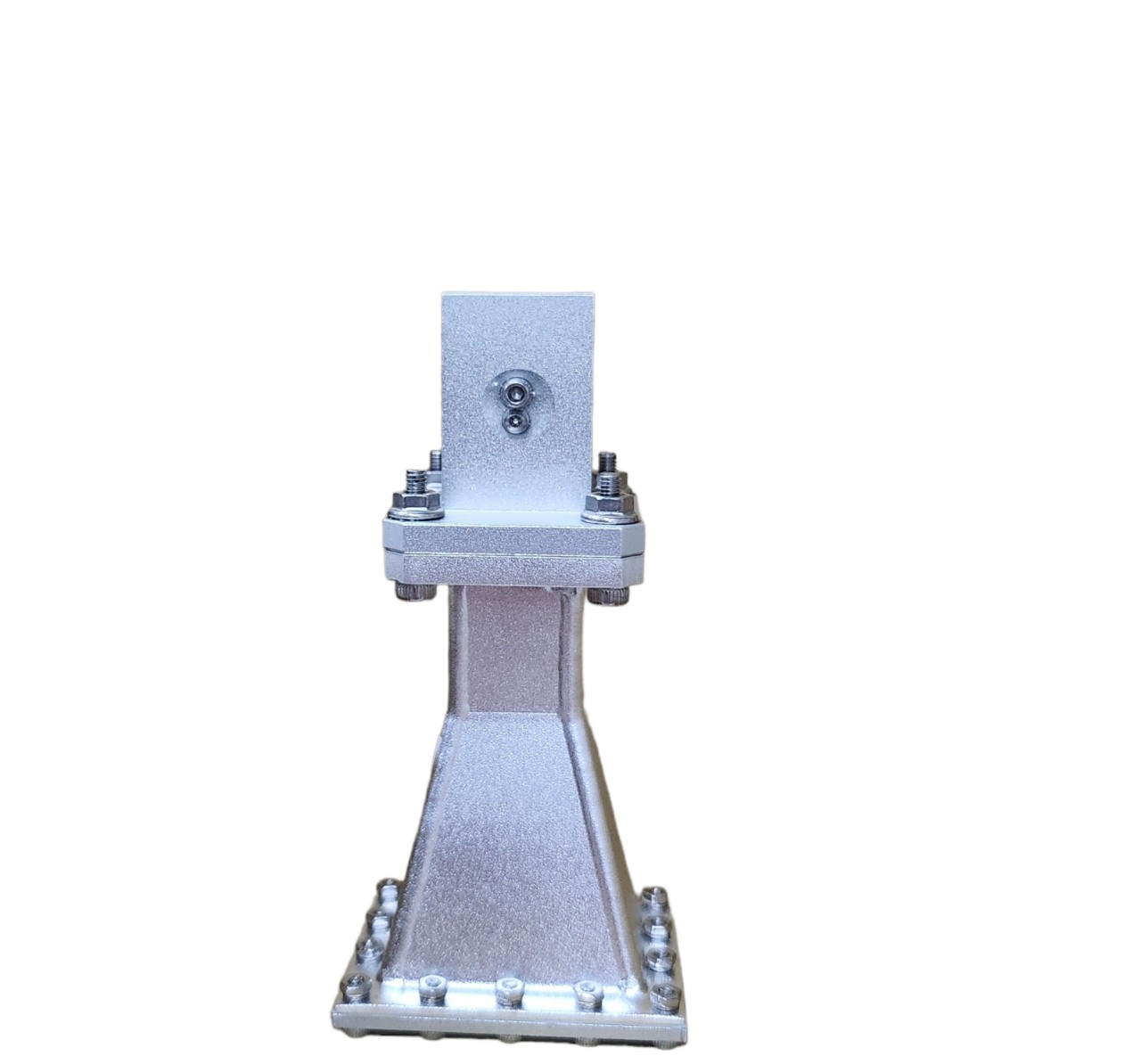

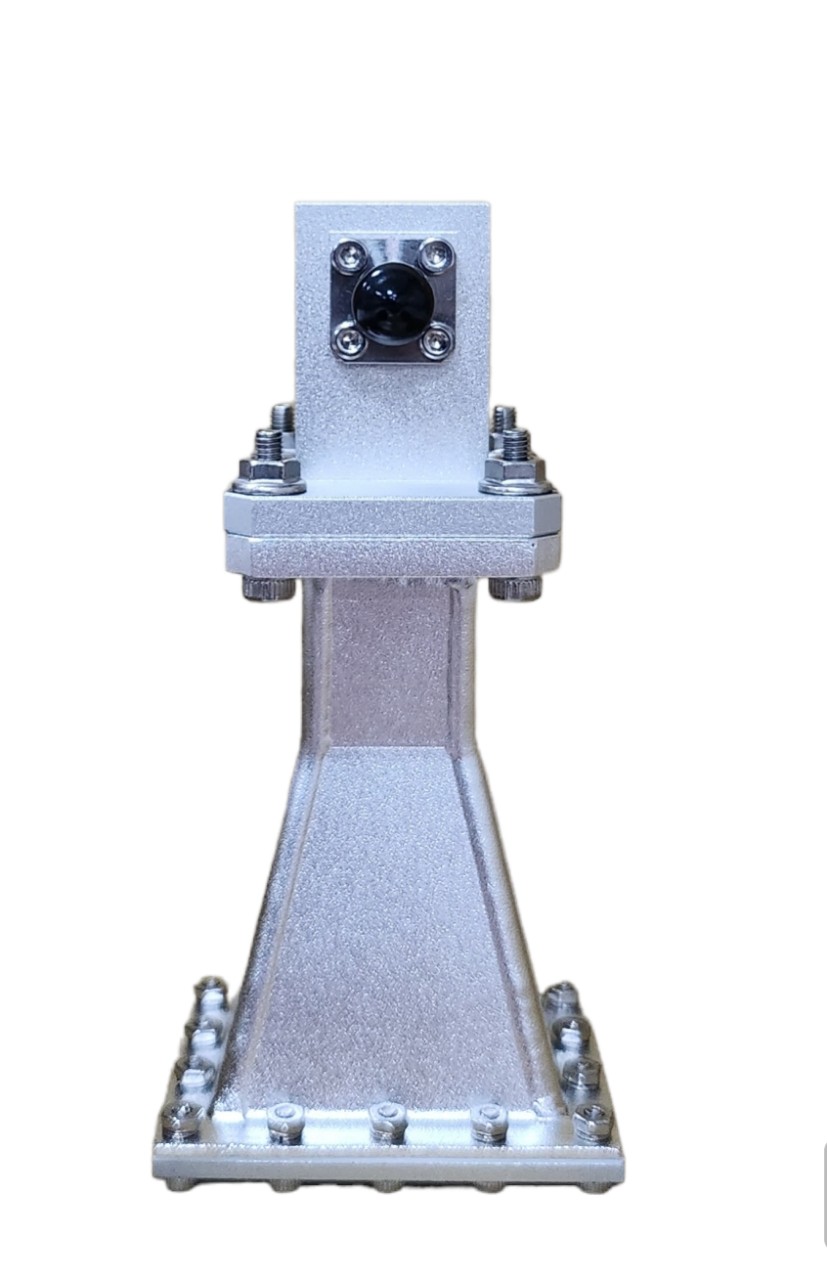

WR62 12.4 GHz to 18 GHz 10dbi 標準增益波導喇叭天線 SMA-Female 連接器法蘭:UDR WR62 12.4 GHz to 18 GHz 10dbi Standard Gain Waveguide Horn Antenna SMA-Female Connector Flange: UDR WR62 12.4 GHz to 18 GHz 10dbi Ăng ten ống dẫn sóng đạt độ lợi tiêu chuẩn đầu nối SMA-Female Mặt bích: UDR

Model No: HS-062-UBR-10A-SF

Mechanical Drawing: Download

  • Original Model No.: HS-06210A-SF
  • Frequency: 12GHz to 18GHz
  • Waveguide input Model: WI-062-UDR-10
  • Connector: Stainless steel SMA-Female
  • Waveguide Flange: UDR 140/ UG-419/U
  • Waveguide Type: WR62/ WG18/ R140

Quantity:
INQUIRY

Applications:

  • EMI/EMC testing, direction finding, surveillance, and antenna gain measurements.
  • Calibration devices that measure the gain of other antennas

Features:

  • Uniform Gain
  • Aluminum metal alloy
  • Consolidated performance database
  • Stainless steel SMA-Female

Mechanical & Electrical Specifications

  • Waveguide: WR-62
  • Frequency:12.4 to 18GHz
  • Gain: 10 dbi
  • Max Power(W): 200W
  • H-plane(-3db): 54 deg
  • E-plane(-3db): 54 deg
  • Size(mm): 33x36x93
  • Weight (g): 67
  • Waveguide Flange: UG-2664/U
  • Connector: SMA-Female
  • V.S.W.R: 1.25
