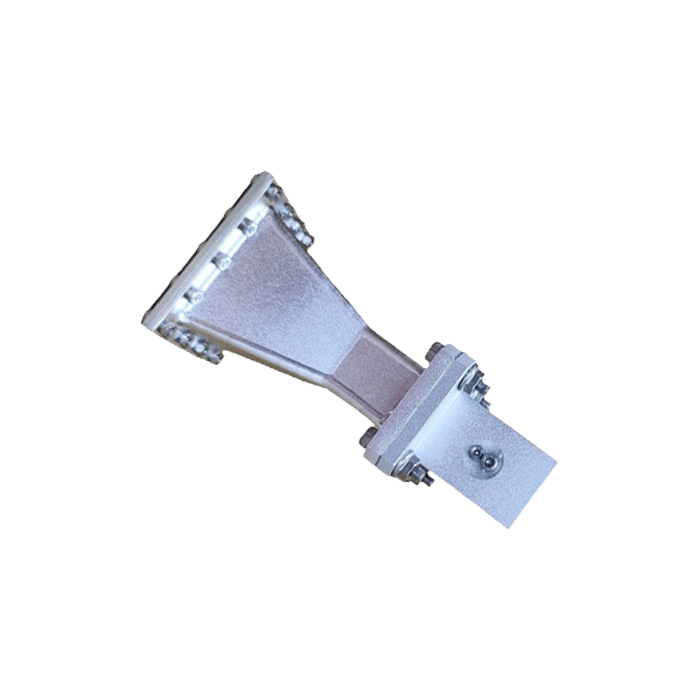

HS-062-UBR-10A-SF Standard Gain Waveguide Horn Antenna
WR62 12.4 GHz to 18 GHz 10dBi UBR Flange SMA-Female Connector
The HS-062-UBR-10A-SF is a high-performance standard gain waveguide horn antenna designed to operate across the frequency range from 12.4 GHz to 18 GHz. With its excellent VSWR characteristics (1.5:1) and uniform gain performance, it is ideal for EMI/EMC testing, direction finding, surveillance, and antenna gain measurements. Also serves as calibration devices for measuring the gain of other antennas. Built with aluminum metal alloy and featuring stainless steel SMA-Female connector. Taiwan Design, Made in Taiwan.
Technical Specifications
Electrical Specifications
| Frequency Range | 12.4 GHz - 18 GHz |
| V.S.W.R. | 1.5:1 |
| Antenna Type | Waveguide Horn (WR-62) |
| Radiation | Directional |
| Gain | 10 dBi (Typical) |
| Polarization | Vertical or Horizontal |
| Maximum Power | 200 Watts |
| Vertical Beamwidth (-3dB) | 41° (Average) |
| Horizontal Beamwidth (-3dB) | 39° (Average) |
| Impedance | 50 Ohm |
| Antenna Design | WR-62 |
| Connector | SMA-Female (Stainless Steel) |
Mechanical Specifications
| Dimensions (L×W×H) | 33 × 36 × 93 mm |
| Antenna Weight (NW) | 67 g |
| Parts Material | Aluminum Alloy |
| Connector Material | Stainless Steel |
| Application | Indoor |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +80°C |
| Operating Humidity | 10% - 70% non-condensing |
| Storage Humidity | 5% - 50% non-condensing |
| Design & Manufacturing | Taiwan Design, Made in Taiwan |
| Compliance | RoHS, WEEE, CE, FCC, ISO 9001:2015, ISO 14001:2015 |
Key Features
Precision Calibration Device
Ideal for antenna gain measurements and calibration of other antennas
Ideal for antenna gain measurements and calibration of other antennas
Excellent VSWR Performance
1.5:1 VSWR ensures optimal signal transmission with minimal reflection
1.5:1 VSWR ensures optimal signal transmission with minimal reflection
Uniform Gain Characteristics
Consistent 10 dBi gain across the entire 12.4-18 GHz frequency range
Consistent 10 dBi gain across the entire 12.4-18 GHz frequency range
Compact & Lightweight Design
Only 33×36×93 mm dimensions and 67g weight for easy integration
Only 33×36×93 mm dimensions and 67g weight for easy integration
Dual Polarization Support
Vertical or Horizontal polarization for flexible deployment
Vertical or Horizontal polarization for flexible deployment
Full Certification
Compliant with RoHS, WEEE, CE, FCC, and ISO 9001/14001 standards
Compliant with RoHS, WEEE, CE, FCC, and ISO 9001/14001 standards
Applications
EMI/EMC Testing
Direction Finding
Surveillance Systems
Antenna Gain Measurement
Calibration Reference
