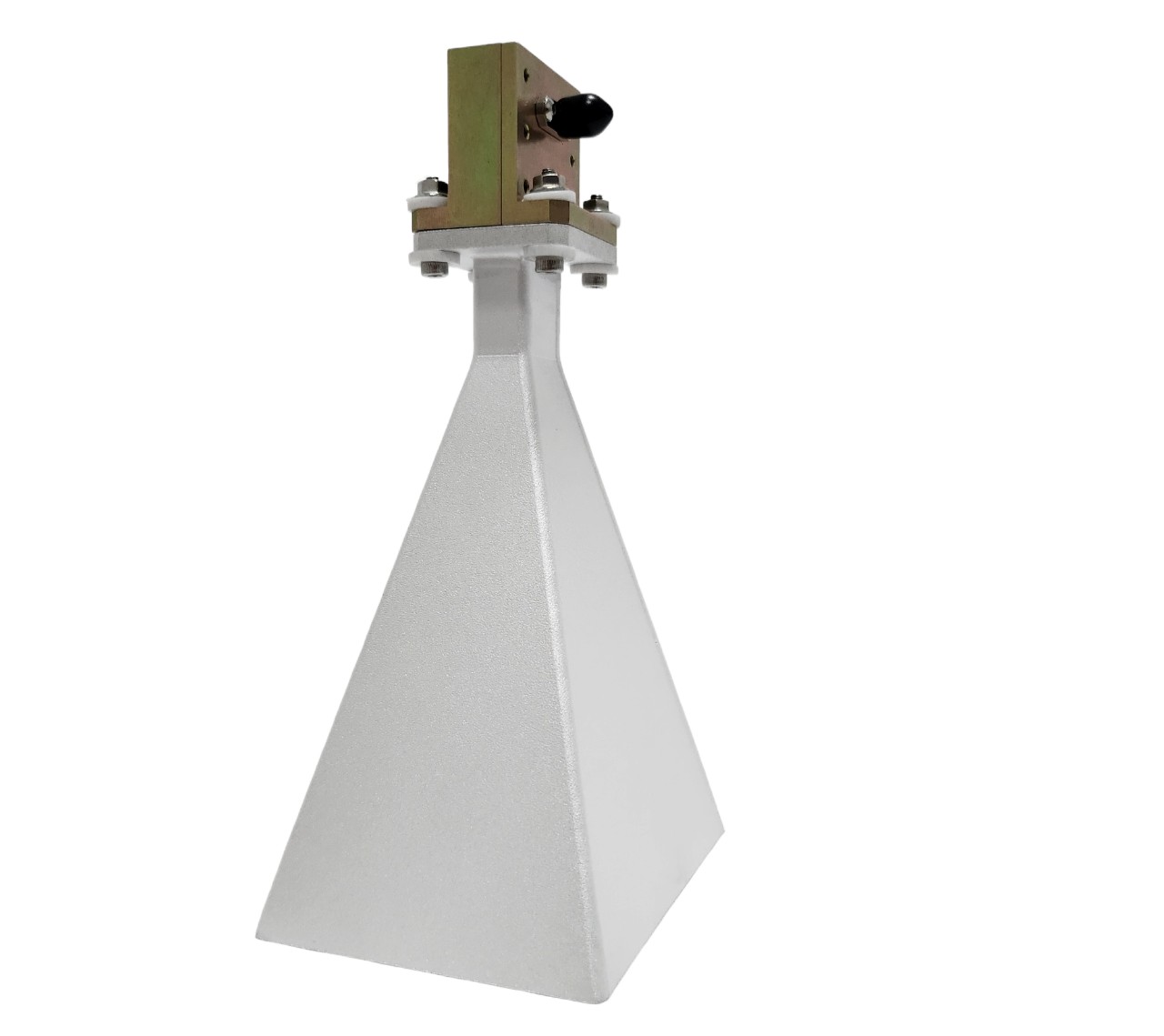

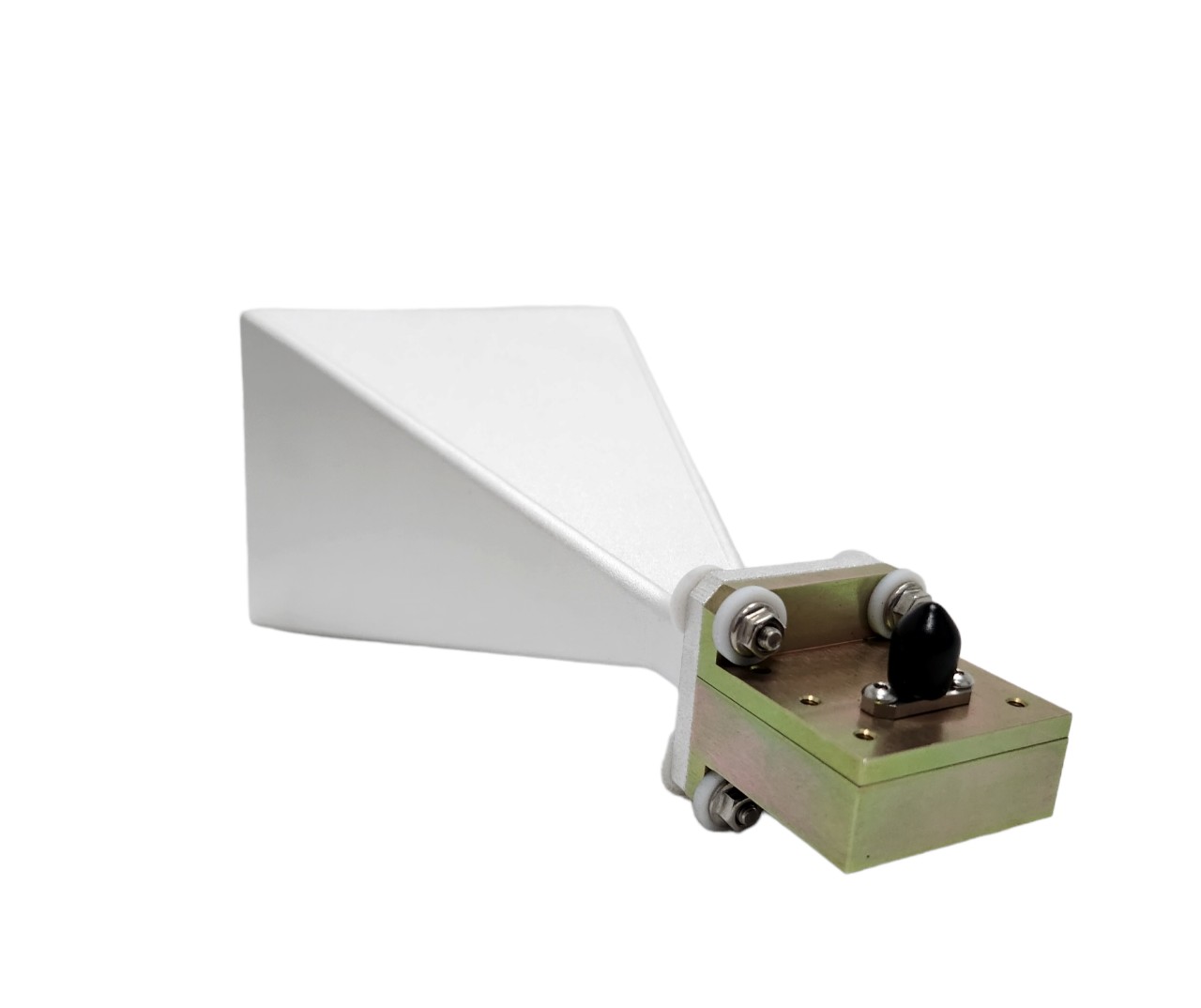

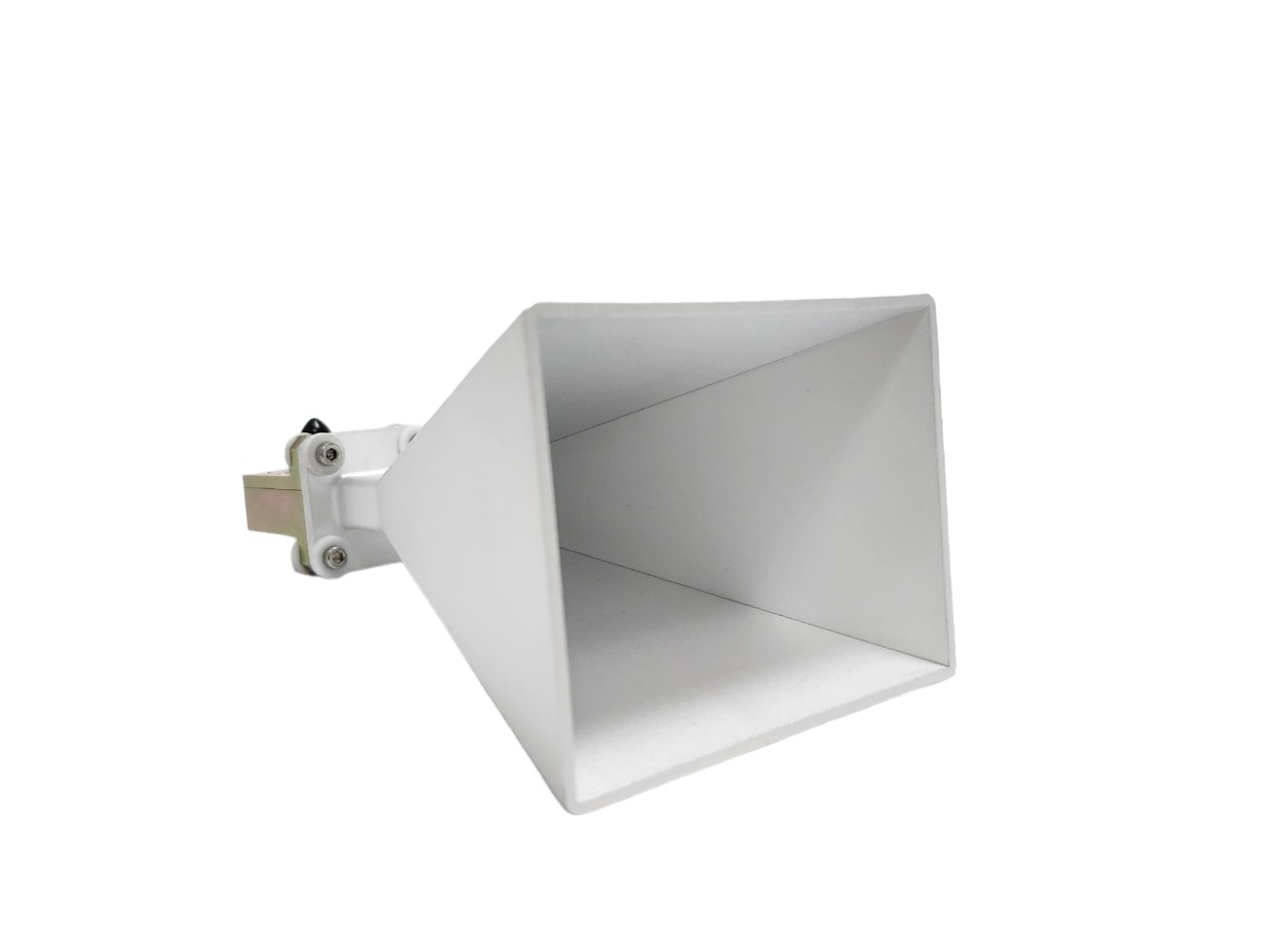

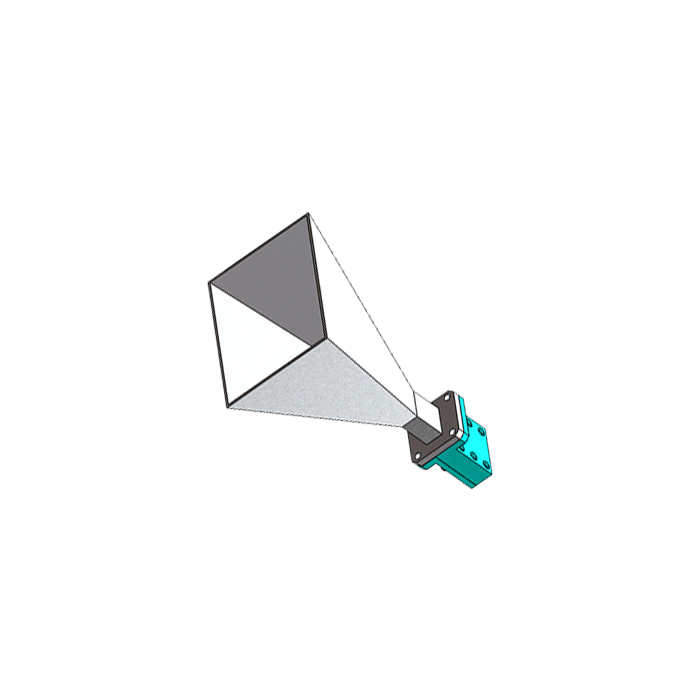

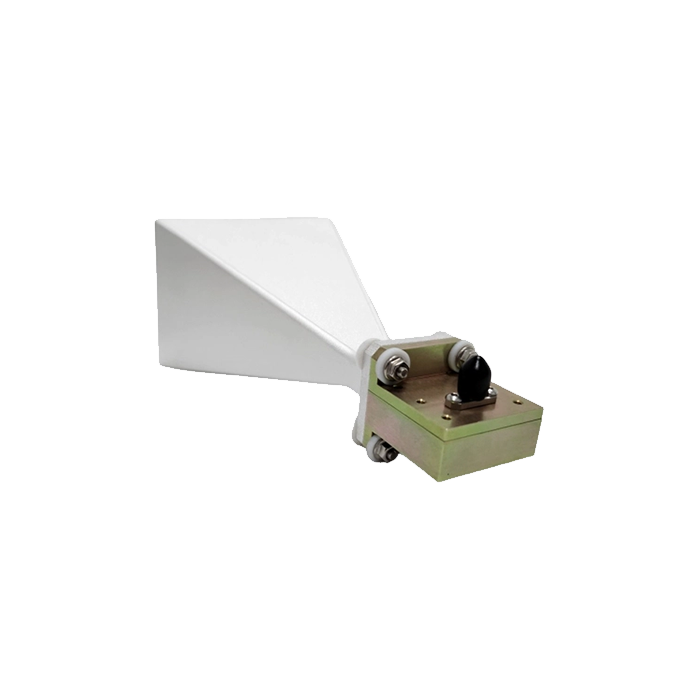

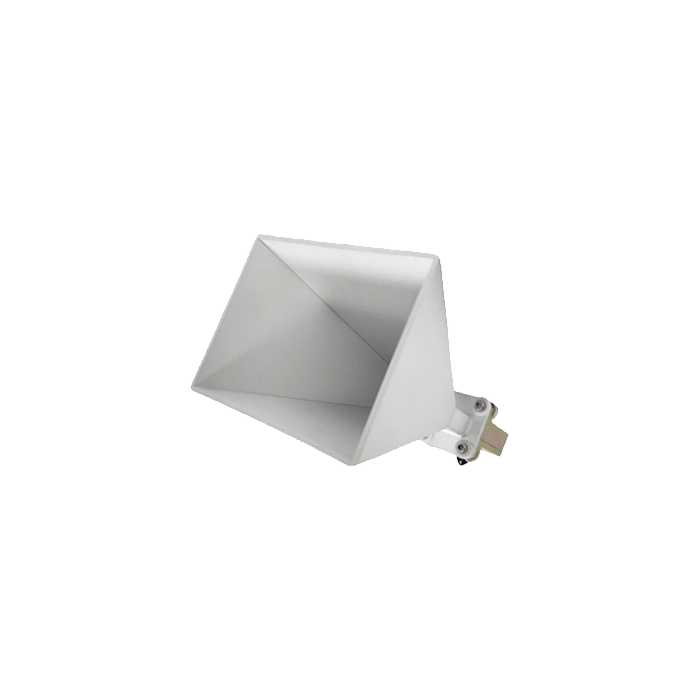

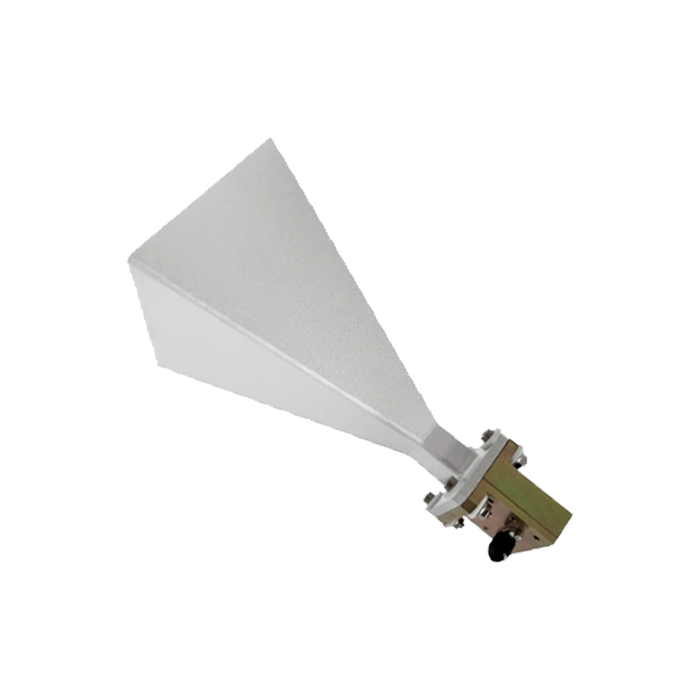

WR62 12.4 GHz to 18 GHz 20dbi Standard Gain Waveguide Horn Antenna SMA-Female Connector Flange: UBR
FT-RF Horn Antenna
10 out of
10
-
Description & Specification
Ku-Band Standard Gain Horn
WR-62 Waveguide | 12.4 GHz – 18 GHz | 20 dBi
The HS-062-UBR-20A-SF is a high-precision Ku-band standard gain horn antenna professionally engineered for versatile microwave measurement and laboratory applications. Operating across the 12.4 GHz to 18 GHz spectrum, it features a standardized WR-62 waveguide interface with UBR flange compatibility. Delivering a stable 20 dBi gain with excellent radiation symmetry, this antenna is an essential instrument for Signal Integrity verification, antenna gain calibration, and professional EMI/EMC testing requiring industrial-grade reliability.
Technical Specifications
Electrical RF Performance
| Frequency Range | 12.4 GHz - 18 GHz (Ku-Band) |
| Antenna Type | Standard Gain Horn |
| Nominal Gain | 20 dBi |
| V.S.W.R | 1.25 : 1 (Typical) |
| -3dB Beamwidth | Horizontal: 19° | Vertical: 18° |
| Maximum CW Power | 250 Watts |
Mechanical & Interface Data
| Connector Type | Stainless Steel SMA-Female |
| Waveguide / Flange | WR-62 / UBR (UG/599U Compatible) |
| Dimensions (L x W x H) | 168 x 92.6 x 33.4 mm |
| Antenna Weight | 142 g (Precision Aluminum Alloy) |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Professional Tactical Features
Ku-Band Waveguide Precision
Designed for the 12.4-18 GHz spectrum, ensuring low insertion loss and high mechanical alignment accuracy for critical Signal Integrity measurements.
Superior Gain Consistency
Delivers a uniform gain profile across the bandwidth, making it an ideal reference device for measuring the gain of secondary microwave systems.
High-Durability Stainless Interface
Equipped with a precision stainless steel SMA-Female connector to ensure reliable mating cycles and performance stability in laboratory environments.
Consolidated Performance Data
Backed by a consolidated database to ensure traceable results for EMI/EMC testing, direction finding, and advanced spectrum surveillance.
Inquire About Ku-Band Solutions
Contact our engineering team for specialized gain calibration data, custom mounting options, or technical support regarding microwave measurement setups.
