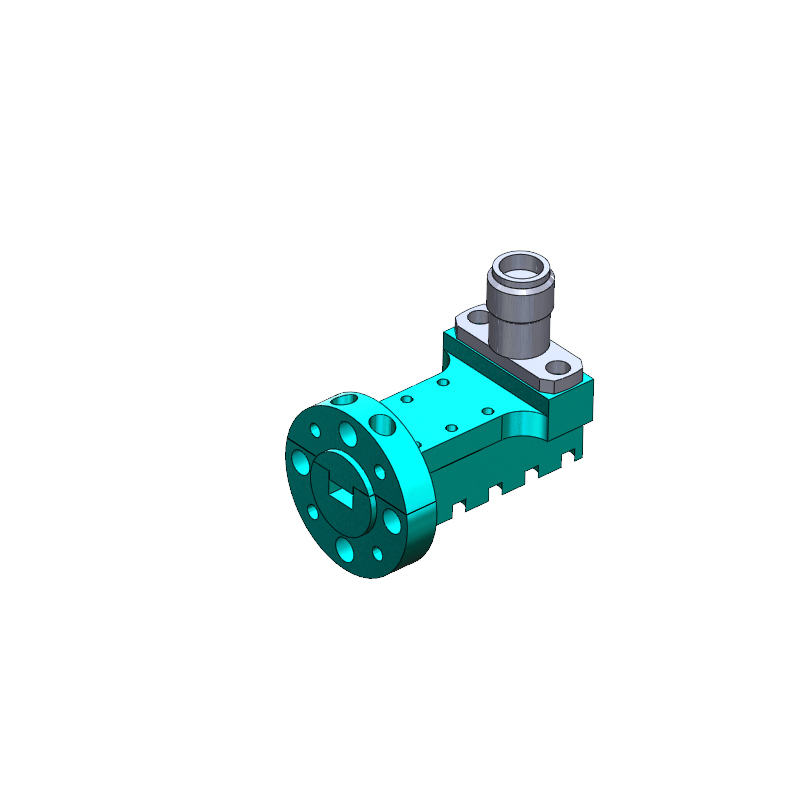

WC-15-UG-A1-VF Waveguide Adapter
HIGH-FREQUENCY V-BAND INTERCONNECT | Precision WR-15 Profile | 50.0 - 70.0 GHz
The WC-15-UG-A1-VF is a professional-grade Waveguide to Coaxial Adapter meticulously engineered for seamless high-frequency transitions within the 50.0 GHz to 70.0 GHz V-band spectrum. This premium component directly bridges a standard rectangular WR-15 waveguide architecture with millimeter-wave coaxial networks via a high-performance V-Female (1.85mm) connector interface. Delivering an exceptional maximum VSWR profile of 1.35 : 1, it guarantees pure Signal Integrity and minimal return loss, making it an ideal choice for next-generation 6G communication research, automotive radar testing, and high-capacity wireless backhaul systems. Expertly manufactured in Taiwan, it is built to satisfy ultra-precise industrial and scientific measurement standards.
Electrical RF Performance
| Frequency Range | 50.0 - 70.0 GHz |
| V.S.W.R (Max) | 1.35 : 1 |
| Maximum Power Handling | 25 Watts (CW) |
Mechanical & Material Data
| Waveguide Standard | WR-15 (V-Band) |
| Waveguide Flange | UG Style Flange |
| Coaxial Connector Interface | V-Female (1.85mm) |

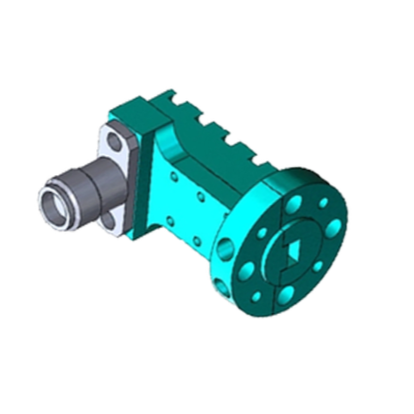

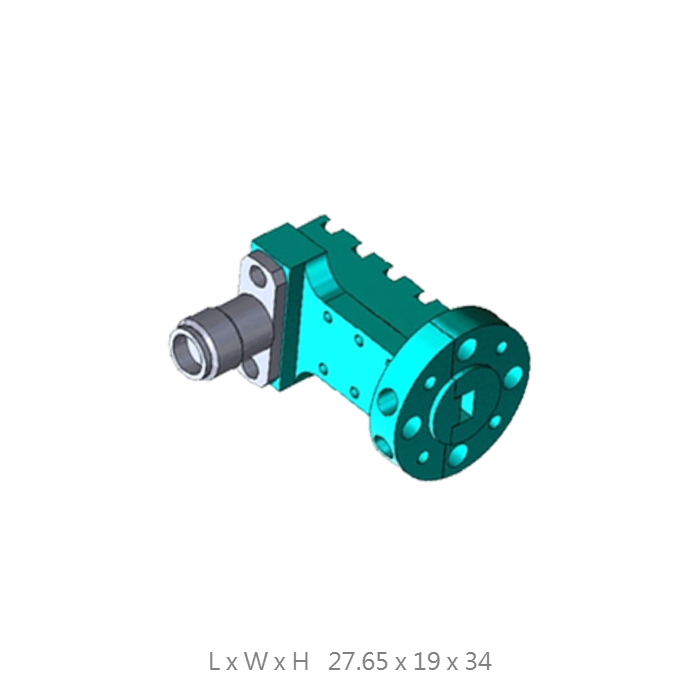

| Dimensions (W x H x L) | 27 x 19 x 34 mm |
| Net Weight | 20 g |
| Body Material | CNC Machined Aluminum |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
Optimized V-Band Design
Tight mechanical tolerances specifically calibrated for consistent electrical performance and low transmission reflection across the entire 50-70 GHz range.
Stainless Steel 1.85mm Port
Premium stainless steel V-Female connector ensures maximum mechanical durability and repeatable signal integrity over extensive mating cycles.
Taiwanese Engineering Excellence
Precision-manufactured in Taiwan with rigorous quality control, providing reliable phase stability and enduring laboratory-grade consistency.
Compact 6G Solutions
Minimal footprint geometry weighing only 20g, engineered specifically to fit high-density millimeter-wave assemblies and advanced 6G development setups.
Inquire About Professional Waveguide Solutions
Contact our engineering team to request customized flange alignments, specialized waveguide coatings, or alternative connector configurations.
