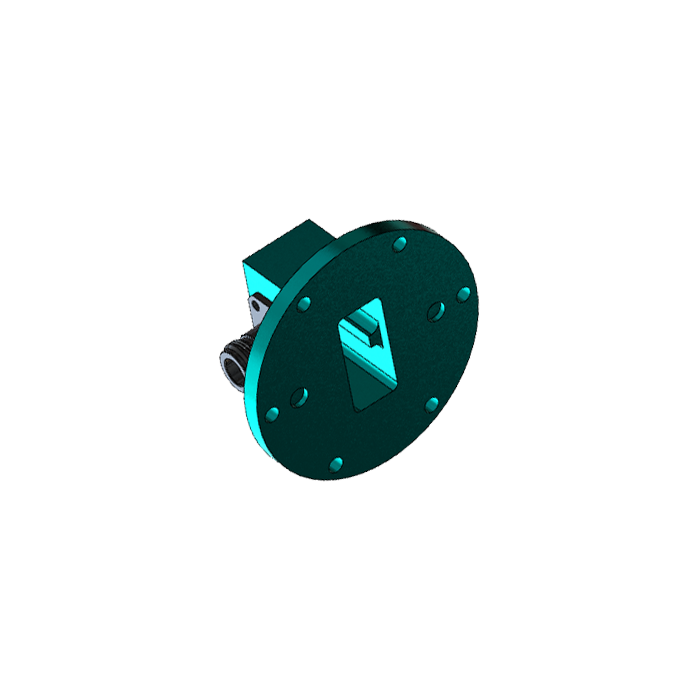

WR-137 Waveguide to Coaxial Adapter
Precision C-Band Transition | Standard UAR Flange Layout | 5.85 GHz – 8.2 GHz
The WC-137-UAR-NF is a high-precision microwave Waveguide to Coaxial Adapter professionally engineered for strict adherence to the rectangular WR-137 architectural standard. Operating continuously across the 5.85 GHz to 8.2 GHz C-Band spectrum, this premium transition component ensures stable electromechanical coupling and maximum energy transfer with an exceptionally low nominal V.S.W.R profile of 1.25 : 1. Manufactured from high-grade aluminum alloy in Taiwan, this robust 170 g adapter features a standardized rectangular UAR Style flat cover flange interface, mated to a precision coaxial N-Female connector port, safely managing continuous wave power loads up to 300 Watts (CW). This specialized layout makes it the definitive choice for pairing with standard gain horn antennas during radiation pattern tests, satellite tracking systems, aerospace radar calibration, and mission-critical RF measurement networks, serving as the core native transition block utilized to manufacture our elite HS-137 series horn arrays.
Electrical & RF Performance
| Frequency Range | 5.85 GHz to 8.2 GHz (C-Band Continuous) |
| V.S.W.R (Max Profile) | ≤ 1.25 : 1 |
| Maximum Power Handling | 300 Watts (CW Continuous Wave) |
| Nominal Impedance | 50 Ohms |
Mechanical & Construction Data
| Waveguide Size Standard | EIA WR-137 (R70 / WG14 Layout) |
| Waveguide Flange Designation | UAR Style Flange Standard Layout (Rectangular Flat Cover) |
| Coaxial Connector Interface | N-Female Interface Premium Port Layout |
| Physical Dimensions (W x L) | 79.5 x 37.7 mm |
| Net Weight | 170 g |
| Body Material Profile | High-Grade Precision Machined Aluminum |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
C-Band Signal Integrity
Optimized internal transition geometry effectively eliminates mode reflections, ensuring minimal signal leakage and clean mapping flatness across the full 5.85–8.2 GHz operating spectrum.
Antenna System Core
The primary transition component for the HS-137 series standard gain horn architectures, providing optimized impedance matching thresholds for accurate directional radiation pattern mapping.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict industrial quality control standards, ensuring consistent internal launcher dimensions, absolute flat positioning alignment, and calibration constancy.
300W High-Power Stability
Precision-engineered to manage continuous transmission wave loads up to 300W CW safely, making it suitable for both high-precision receiver arrays and intense microwave source interfaces.
Standardized UAR Interface
Features a standardized rectangular UAR waveguide flange layout for secure mechanical coupling, ensuring stable power transitions and repeatable, uncompromised test results in severe RF testing configurations.
Get a Quote / Custom RF Solutions
Contact our technical engineering team today to request custom flange drilling patterns, individual certified V.S.W.R plots, alternative connector ports, or integrated antenna assembly requirements.
