Description & Specification

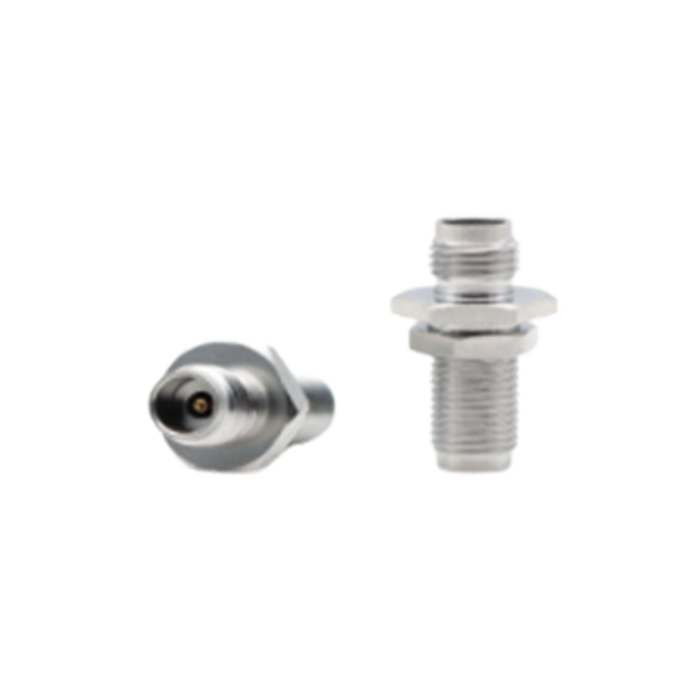

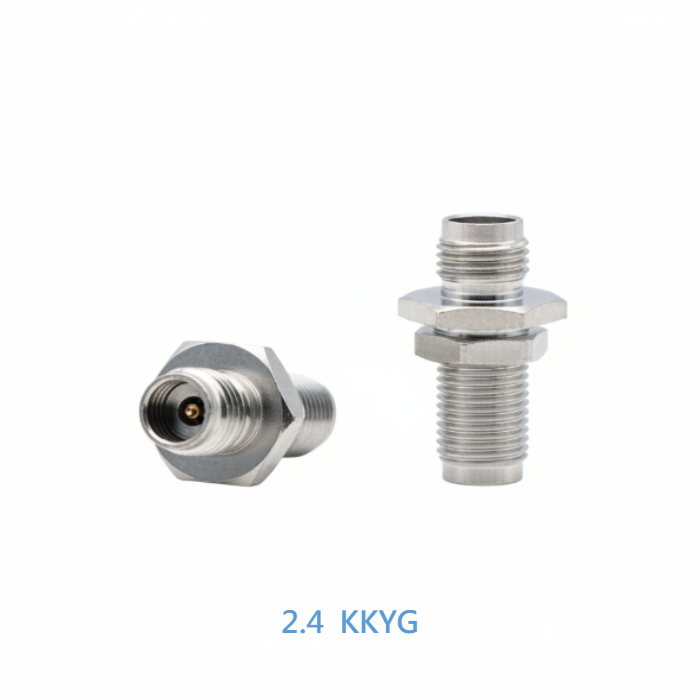

DC-50GHz Precision RF Component (Model: [Insert Model No.])
DC to 50 GHz | VSWR ≤ 1.20 | Mil-Grade Temp Range (-55℃ to +165℃)
Engineered for the frontiers of millimeter-wave technology, this high-frequency component delivers uncompromising performance from DC up to 50 GHz. Featuring a premium interface (typically 2.4mm) with a remarkably low VSWR of ≤ 1.20, it ensures minimal signal reflection and insertion loss. Built to withstand extreme environments with an operating temperature range of -55℃ to +165℃ and a durability of over 500 mating cycles, it is the ideal solution for 5G telecommunications, satellite payloads, and high-precision Test & Measurement (T&M) applications.
Technical Specifications
Electrical Specifications
| Frequency Range | DC to 50 GHz |
| Impedance | 50 Ohms |
| V.S.W.R | ≤ 1.20 : 1 |
| Dielectric Withstand Voltage | 1000V |
| Insulation Resistance | ≥ 5000 MΩ |
Mechanical & Environmental Specifications
| Durability (Mating Cycles) | 500 Cycles |
| Operating Temperature | -55℃ to +165℃ (Extreme Environment) |
| Connector Interface | Compatible with 2.4mm (50GHz Standard) |
Key Features (Model Specific)
50 GHz Wideband
Full spectrum coverage from DC to 50 GHz, supporting next-generation 5G and millimeter-wave applications.
Low VSWR 1.20
Exceptional impedance matching (≤1.20) ensures signal integrity and minimizes reflection losses at high frequencies.
-55℃ to +165℃ Operation
Military-grade temperature resilience makes it suitable for aerospace, defense, and harsh industrial environments.
500+ Mating Cycles
Designed with high-quality materials to maintain electrical performance even after repeated connections.
High Insulation
Insulation resistance ≥5000MΩ ensures safety and prevents leakage currents in sensitive electronic systems.
Get a Quote / Customization
Contact us for specific interface configurations or bulk pricing.
