Description & Specification

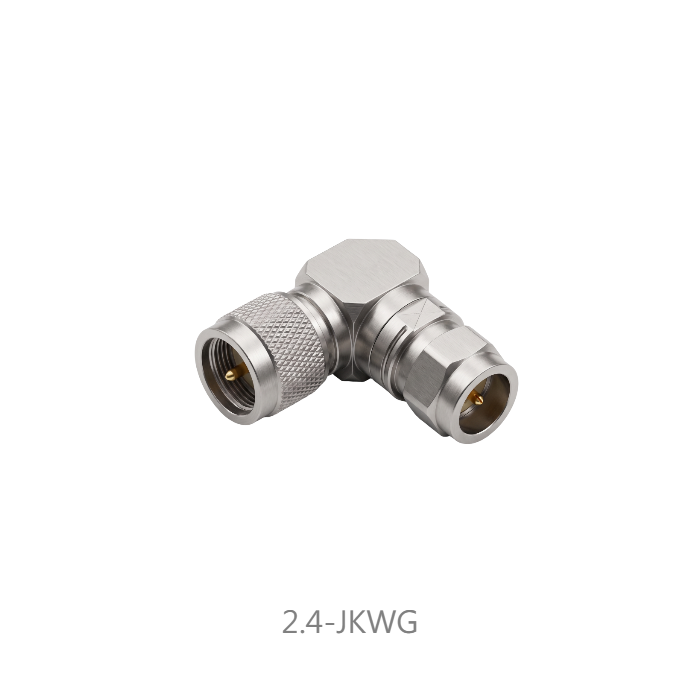

2.4-JKWG RF Coaxial Adapter
Millimeter-Wave Right Angle Adapter | 2.4mm Male to 2.4mm Female | DC - 50 GHz
The 2.4-JKWG is a premium millimeter-wave RF coaxial right-angle adapter professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF). This high-frequency component enables seamless 2.4mm male to 2.4mm female interconnection in tight spatial layouts. Operating with superior signal integrity from DC up to 50 GHz, it maintains a low VSWR profile of 1.30 or less and an excellent insulation resistance of 5000 Megohms or greater. Designed to withstand extreme environmental parameters, it features a passivated stainless steel housing combined with gold-plated beryllium copper contacts to ensure permanent electromechanical alignment stability for critical satellite setups and lab testing networks.
| Impedance | 50 Ohm |
| Frequency Range | DC - 50 GHz |
| VSWR, Max | 1.30 : 1 |
| Insulation Resistance | 5000 Megohms |
| Dielectric Withstand Voltage | 1000V |
| Durability / Mating Cycles | 500 Cycles |
| Operating Temperature | -55 to +165 Degrees Celsius |
Material & Finish
| Interface Type | 2.4mm Male to 2.4mm Female (Right Angle) |
| Center Pin Material | Beryllium Copper (Becu) |
| Center Pin Finish | Gold Plating |
| Dielectric Support | Polyetherimide (PEI) |
| Outer Body Material | Stainless Steel |
| Outer Body Finish | Passivated Coating |
| Design Compliance | GJB 681A-2002, GJB360B-2009 |
