Description & Specification

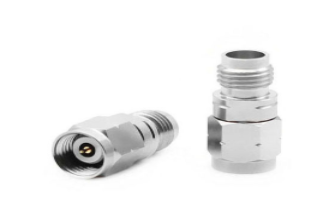

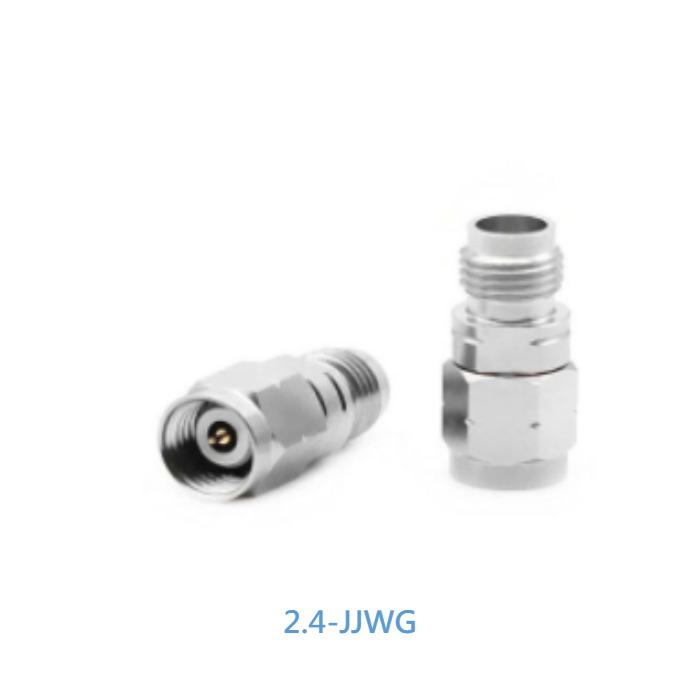

2.4-JJWG RF Coaxial Adapter
Millimeter-Wave Right Angle Adapter | 2.4mm Male to 2.4mm Male | DC - 50 GHz
The 2.4-JJWG is a premium millimeter-wave RF coaxial right-angle adapter professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF). This high-frequency component enables seamless 2.4mm male to 2.4mm male interconnection in tight spatial layouts. Operating with superior signal integrity from DC up to 50 GHz, it maintains a low VSWR profile of 1.30 or less and an excellent insulation resistance of 5000 Megohms or greater. Designed to withstand extreme environmental parameters, it features a passivated stainless steel housing combined with gold-plated beryllium copper contacts to ensure permanent electromechanical alignment stability for critical satellite setups and lab testing networks.
Electrical Performance
| Impedance | 50 Ohm |
| Frequency Range | DC - 50 GHz |
| VSWR, Max | 1.30 : 1 |
| Insulation Resistance | ≥ 5000 Megohms |
| Dielectric Withstand Voltage | 1000V |
| Durability / Mating Cycles | 500 Cycles |
| Operating Temperature | -55 to +165 Degrees Celsius |
Material & Finish Specifications
| Interface Type A | 2.4mm Male Connector |
| Interface Type B | 2.4mm Male Connector (Right Angle Configuration) |
| Center Contact Pin Material | Beryllium Copper (Becu) |
| Center Contact Pin Finish | Gold Plating |
| Dielectric Support Material | Polyetherimide (PEI) |
| Outer Body Material | Stainless Steel |
| Outer Body Finish | Passivated Coating |
| Coupling Nut Material & Finish | Stainless Steel / Passivated |
| Mechanical Dimensions | 18.9 x 18.9 mm (0.745 x 0.745 inches) |
| Design Standard Compliance | GJB 681A-2002, GJB360B-2009 |
Ultra-High 50 GHz Performance
Supports flawless transmission line integration from DC up to 50 GHz, perfectly matching modern millimeter-wave system profiles.
Precision Right Angle Mating
Compact 90-degree mechanical geometry allows precise coaxial configuration in space-constrained module packaging without kinking loss.
Rugged Stainless Steel Housing
Passivated stainless steel body provides superior structural compression shielding and long-term chemical oxidation deterrence.
Gold Plated Becu Pin
Premium gold-plated beryllium copper contacts maintain trace contact resistance constraints over 500 complete insertion cycles.
Email Contact
For custom adapter layouts, specific configurations, or length variations, contact our engineering team.
