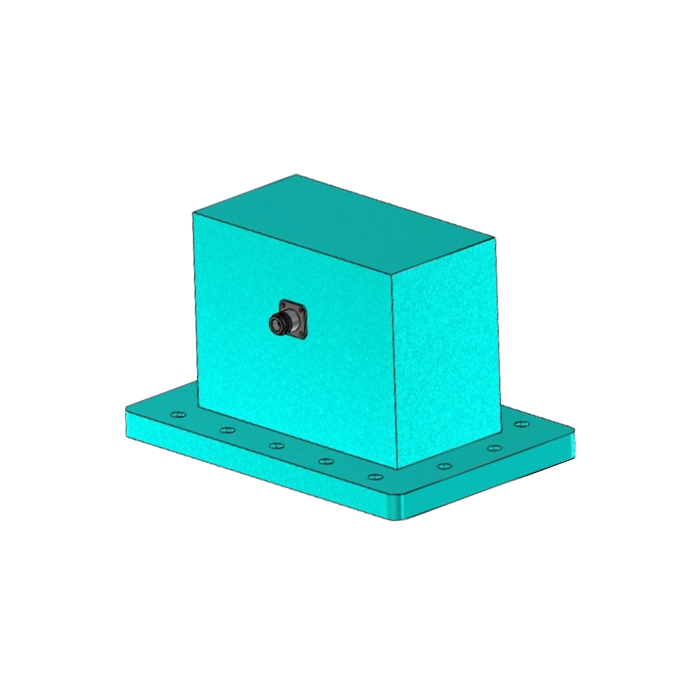

WR770 Waveguide to Coaxial Adapter
Precision L-Band Transition | Heavy-Duty Infrastructure | Model: WC-770-UDR-NF
The WC-770-UDR-NF is an industrial-grade microwave Waveguide to Coaxial Adapter professionally engineered for strict compliance with the large-format WR770 rectangular waveguide layout. Operating continuously across the 970 MHz to 1450 MHz L-Band spectrum, this premium transition component ensures stable electromechanical coupling and maximum energy transfer with an optimized low return loss profile. Manufactured from high-grade aluminum alloy in Taiwan, this robust 3.3 kg adapter features a standardized rectangular UDR Style (PDR / CPR Flange Compatible) interface mated to a high-durability coaxial N-Female connector port, safely managing continuous wave power loads up to 800 Watts (CW). This configuration serves as an indispensable link for high-power radar stations, satellite ground links, wireless testing networks, and large-scale RF transmission systems where mechanical rigidity and thermal stability are critical parameters.
Electrical & RF Performance
| Frequency Range | 970 MHz to 1450 MHz (L-Band Spectrum) |
| V.S.W.R Profile | Low V.S.W.R (Optimized for Peak L-Band Response) |
| Maximum Power Handling | 800 Watts (CW Continuous Wave) |
| Nominal Impedance | 50 Ohms |
Mechanical & Construction Data
| Waveguide Size Standard | EIA WR-770 (R12 / WG5 Layout) |
| Waveguide Flange Designation | UDR Style Flange (PDR / CPR Flange Compatible Layout) |
| Coaxial Connector Interface | N-Female Interface Port Layout |

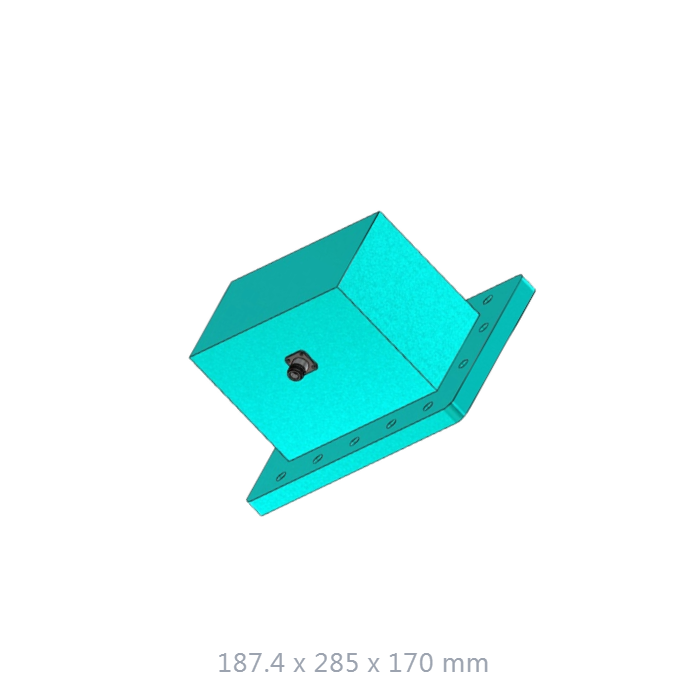

| Physical Dimensions (L x W x H) | 187.4 x 285 x 170 mm |
| Net Weight | 3300 g (3.3 kg Heavy-Duty structural Architecture Build) |
| Body Material Profile | High-Grade Precision Machined Aluminum Core |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
Massive WR770 Interface
Precision-engineered for the significant physical aperture scales of lower L-Band wave transmission, ensuring flawless EM mode transition without structural signal choking points.
800W Power Capability
Reliably manages continuous high-energy transmissions up to 800 Watts continuous wave (CW), matching the strict field parameters for broadcast distribution and long-range radar hardware inputs.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under rigid quality assurance guidelines, guaranteeing outstanding mechanical flat tolerances, stable internal launcher boundaries, and calibration constancy.
Heavy-Duty structural Stability
A substantial 3.3 kg precision aluminum housing minimizes localized system mechanical vibrations while providing a dense integrated thermal sink to prevent operational drift.
L-Band Optimization Purity
Specifically matched for the 970-1450 MHz window to provide reliable return loss performance across core terrestrial and military communications satellite sub-systems.
Get a Quote / Customization
Contact our technical engineering team today to request certified alternative mechanical drilling layouts, individual certified V.S.W.R data charts, customized outdoor waterproof sealing configurations, or specific color coatings.
