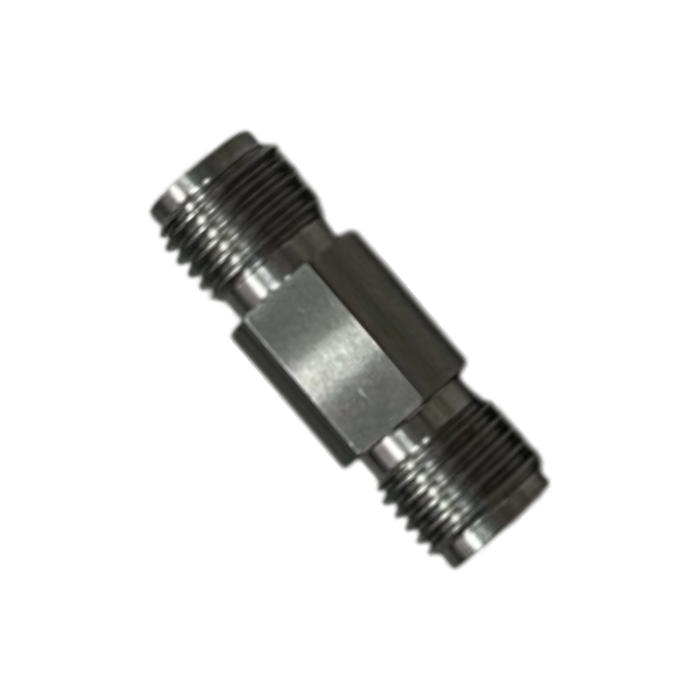

2.92mm Female to Female Adapter

2.92mm Female to Female Adapter

Model No: AD-292F0292F40-AA

Product Datasheet: Download

Model: AD-292F0292F40-AA
Frequency: DC~40GHz
VSWR: ≤1.20:1
Durability: 500 cycles

Quantity:
INQUIRY

  • Description & Specification

Item

Spec.

Frequency

DC～40GHz

VSWR

≤1.20:1

Durability

500Cycles

Impedance

50Ω

Insulation Resistance

≥5000MΩ

Dielectric Withstand Voltage

1000V

Temperature

-55℃～+165℃
