Description & Specification

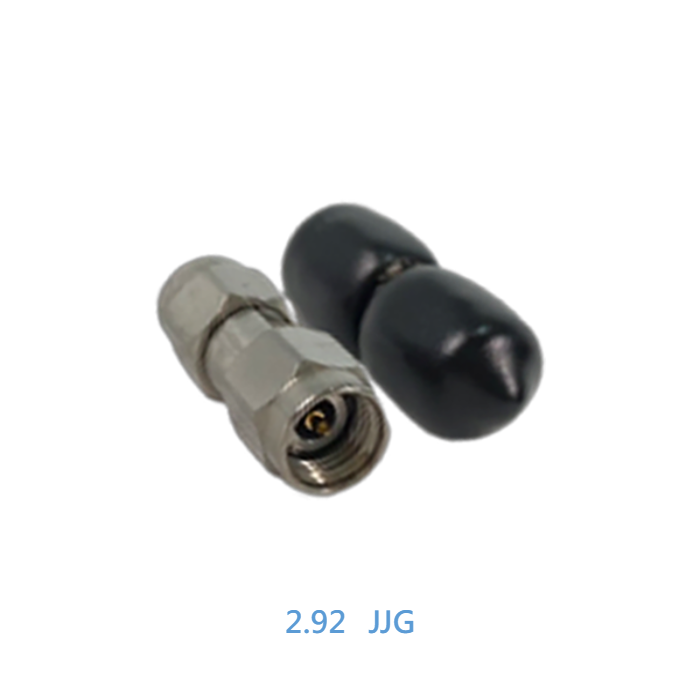

2.92mm Precision Adapter
DC to 40 GHz | VSWR ≤ 1.20 | Model: 2.92-JJG
The 2.92-JJG is a high-performance coaxial adapter featuring a precision 2.92mm (K-type) interface layout, professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for millimeter-wave applications. Operating across an ultra-wide spectrum from DC to 40 GHz, this instrumentation-grade component guarantees exceptional signal integrity with an industry-leading maximum V.S.W.R profile of ≤ 1.20 : 1. Designed for high-frequency repeatability, its rugged air-dielectric core setup provides mode-free operation while ensuring mechanical compatibility with standard SMA and 3.5mm interfaces. Built from premium structural materials in Taiwan, it thrives under strict thermal limits from -55°C up to +165°C, making it a critical asset for 5G millimeter-wave infrastructures, satellite communication networks, aerospace systems, and high-fidelity lab setups.
Electrical Specifications
| Frequency Range Class | DC to 40 GHz (Continuous Ka-Band Spectral Optimization) |
| V.S.W.R Profile (Max) | ≤ 1.20 : 1 (Precision Minimal Reflection Performance) |
| Nominal System Impedance | 50 Ohms |
Mechanical & Environmental Data
| Connector Interface Style | 2.92mm (K-Type) Interface (Compatible with SMA / 3.5mm Series) |
| Operating Temperature Range | -55°C to +165°C (Military-Grade Thermal Resistance) |
| Dielectric Support Configuration | Air-Dielectric Mode-Free Transition Layout |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Professional Grade) |
40 GHz mmWave Ready
Supports the full Ka-band spectrum (DC-40 GHz), ideal for next-generation 5G millimeter-wave infrastructure, high-speed data links, and defense system architectures.
Low VSWR 1.20
Precision manufacturing guarantees a tight maximum VSWR threshold of 1.20, providing excellent impedance matching and preserving critical signal metrics.
Wide Temp Range
Built to comfortably withstand extreme military-grade thermal cycling from -55°C up to +165°C, ensuring absolute electrical stability in harsh outdoor industrial use.
2.92mm (K) Interface
Air-dielectric geometry allows for mode-free broadband operation up to 40 GHz while maintaining full structural mating compatibility with SMA and 3.5mm connectors.
Get a Quote / Customization
Contact our technical engineering division today to request official quote sheets, individual certified frequency plots, high-volume package pricing, or custom layout consulting.
