Description & Specification

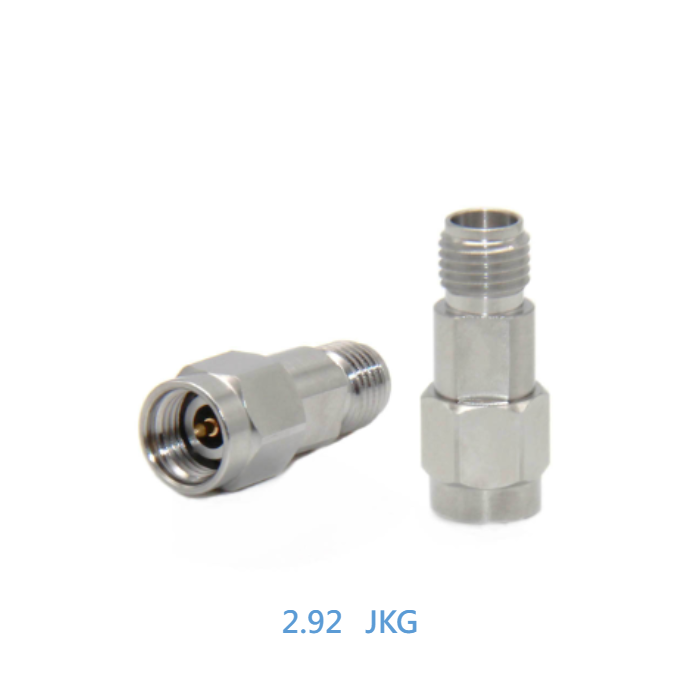

2.92mm Precision Adapter
Model: 2.92-JKG | DC - 40 GHz | Male to Female
The 2.92-JKG is a high-performance coaxial adapter designed for millimeter-wave signal transition and precision coupling. Optimized for an ultra-wide frequency range up to 40 GHz, it ensures minimal signal loss and reflection with an industry-leading VSWR profile. This adapter is a critical component for high-frequency laboratory testing, Ka-band satellite communication systems, and advanced aerospace deployments where Signal Integrity must be maintained across extreme environmental conditions.
Core Electrical Specifications
| Frequency Range | DC to 40 GHz |
| V.S.W.R | ≤ 1.20 : 1 |
| Impedance | 50 Ohm |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstand Voltage | 1000 V |
Mechanical & Environmental Parameters
| Connector Interface | 2.92mm Male to 2.92mm Female |
| Durability | 500 Mating Cycles |
| Operating Temperature | -55°C to +165°C |
| Body Material | Stainless Steel / Passivated |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Key Tactical & Lab Features
Millimeter-Wave Precision
Ensures ultra-low VSWR of ≤ 1.20 across the entire 40 GHz spectrum, providing reliable measurements for Ka-band, 5G, and high-speed data testing.
Extreme Thermal Stability
Specifically engineered to operate between -55°C and +165°C, making it suitable for aerospace, defense, and high-stress environmental chambers.
High Durability Standard
Built to exceed 500 mating cycles without performance degradation, ensuring long-term reliability in laboratory and high-speed production environments.
Intermateability
The 2.92mm (K-type) interface is mechanically compatible with SMA and 3.5mm connectors, offering flexible integration with existing RF hardware.
