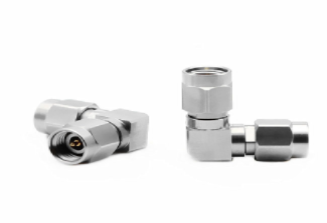

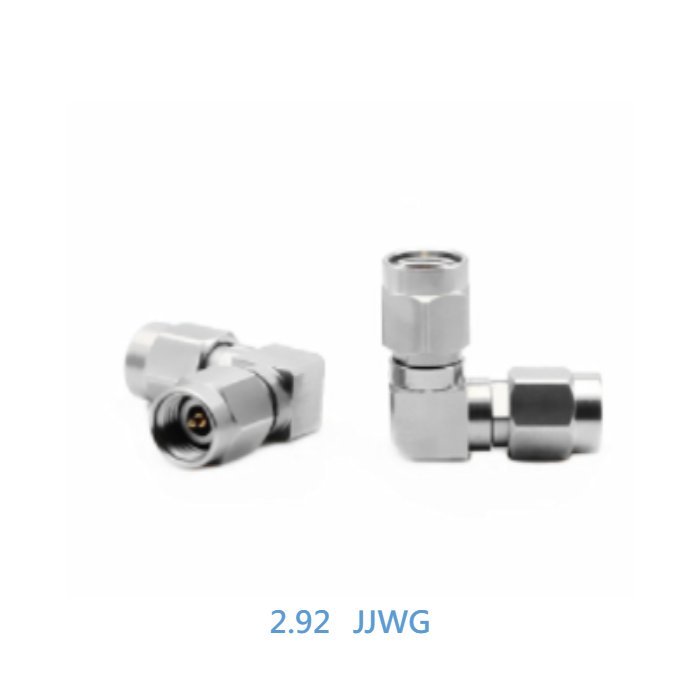

2.92mm Male to Male Right Angle Adapter

2.92mm Male to Male Right Angle Adapter

Model No: 2.92-JJWG

Product Datasheet: Download

Model: 2.92--JJWG
Frequency: DC~40GHz
VSWR: ≤1.25:1
Durability: 500 cycles
Quantity:
INQUIRY

  • Description & Specification

Item

Spec.

Frequency

DC～40GHz

VSWR

≤1.25:1

Durability

500Cycles

Impedance

50Ω

Insulation Resistance

≥5000MΩ

Dielectric Withstand Voltage

1000V

Temperature

-55℃～+165℃
