Description & Specification

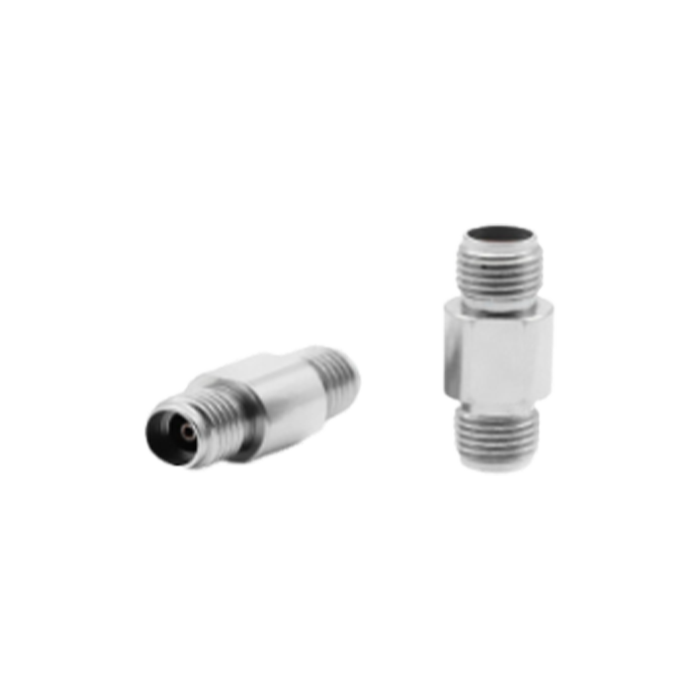

3.5mm Series Millimeter-Wave Connectors
DC - 33 GHz | 50 Ohm | Precision VSWR ≤ 1.20 | Tactical Grade
The 3.5mm Series is a premium, high-reliability interconnect solution designed for mission-critical RF applications requiring precision signal integrity from DC to 33 GHz. Engineered for Signal Defense systems and advanced communication dominance, these connectors utilize an air-dielectric interface to achieve an ultra-low VSWR of ≤1.20:1 and superior insulation resistance. Precision-machined for 50 Ohm stability, they ensure unwavering performance and mechanical endurance in mobile tactical command units and professional-grade shielding environments.
Technical Specifications
Electrical Performance
| Frequency Range | DC ～ 33 GHz |
| Impedance | 50 Ohm |
| VSWR | ≤ 1.20:1 |
| Insulation Resistance | ≥ 5000 MΩ |
| Dielectric Withstand Voltage | 1000 V |
Mechanical & Environmental Specs
| Durability | 500 Cycles |
| Operating Temperature | -55°C ～ +165°C |
| Reliability Standard | Tactical Grade Compliant |
Key Technical Features
Millimeter-Wave Precision
Engineered to maintain a VSWR of ≤1.20:1 up to 33 GHz, providing a critical low-loss link for high-frequency signal defense and satellite communication.
Extreme Thermal Range
Designed to operate flawlessly in environments ranging from -55°C to +165°C, suitable for aerospace, defense, and outdoor tactical deployments.
Superior Signal Security
High insulation resistance (≥5000MΩ) prevents signal leakage, supporting advanced Signal Integrity in professional communication networks.
SMA Intermateability
The 3.5mm interface is mechanically compatible with SMA connectors, offering a ruggedized and higher-performance upgrade for existing RF infrastructures.
Get a Quote / Custom RF Solutions
Contact us for specific cable assembly requirements, alternative plating options, or high-frequency technical support.
