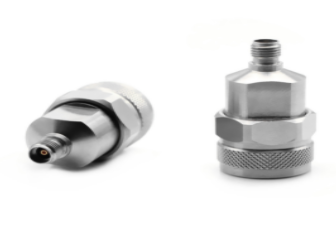

3.5mm Male to Female Adapter

3.5mm Male to Female Adapter

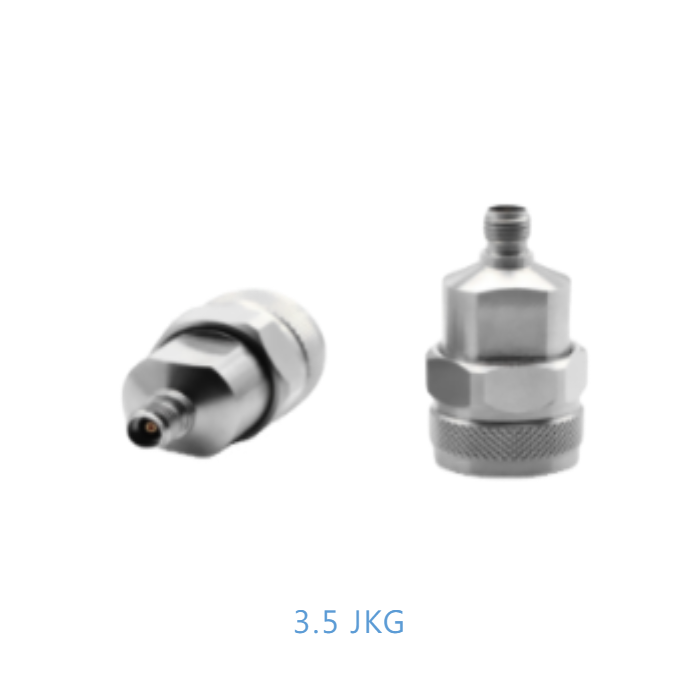

Model No: 3.5-JKG

Product Datasheet: Download

Model: 3.5-JKG
Frequency: DC~33GHz
VSWR: ≤1.20:1
Durability: 500 cycles

Quantity:

INQUIRY

info-tw@ft168.com.tw

Taiwan Antenna Manufacturer - Horn Antenna for EMC/ EMI testing

We provide measurement and calibration Tests, ODM/ OEM/ OBM/ R&D services

Videos

Description & Specification

Item	Spec.
Frequency	DC～33GHz
VSWR	≤1.20:1
Durability	500Cycles

Impedance	50Ω
Insulation Resistance	≥5000MΩ
Dielectric Withstand Voltage	1000V
Temperature	-55℃～+165℃
