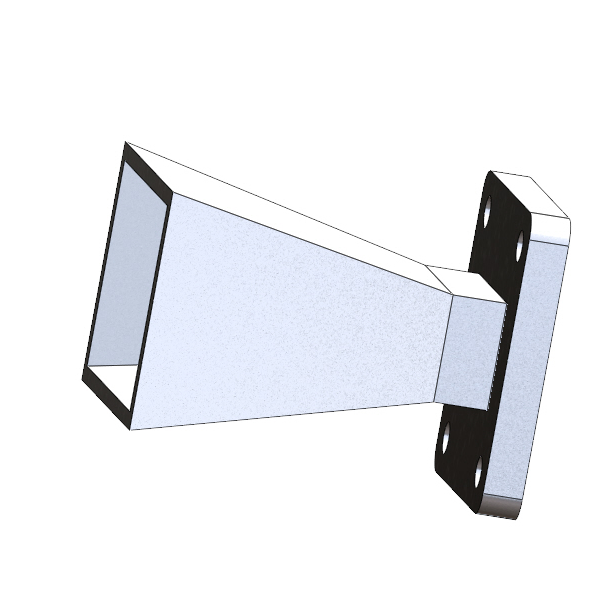

10.0 GHz to 15.0 GHz WR-75 Standard Gain Ku-Band Horn Antenna
Model: HS-075-UBR-10-NA | 10 dBi Gain | Ultra-Lightweight (25g)
The HS-075-UBR-10-NA is a precision-engineered Ku-Band Standard Gain Horn Antenna professionally designed for high-fidelity signal radiating and measurement applications. Operating within the 10.0 GHz to 15.0 GHz spectrum, this compact antenna delivers a consistent 10 dBi gain profile. Featuring a Direct Waveguide Input and a standardized UBR flange, it is an essential radiatior for EMI/EMC testing, radar system calibration, and wide-vertical beam scanning where precision and signal integrity are paramount.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 10.0 GHz to 15.0 GHz |
| Waveguide Standard | WR-75 / R120 / WG17 |
| Nominal Gain | 10 dBi |
| V.S.W.R (Max) | 1.3 : 1 |
| -3dB Beamwidth (H / E Plane) | 54° / 54° (Symmetrical) |
| Maximum Power Handling | 500 Watts (CW) |
| Impedance | 50 Ohm |

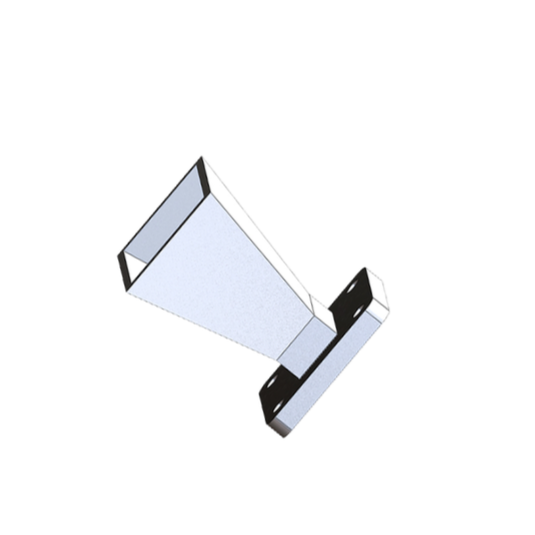

Mechanical & Construction

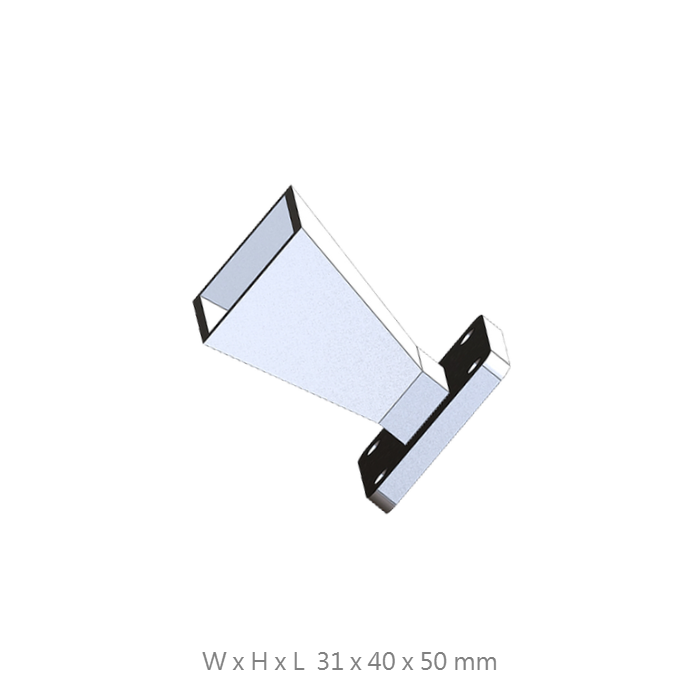

| Dimensions (W x H x L) | 31 x 40 x 50 mm |
| Net Weight | 25 g (Ultra-Lightweight Design) |
| Waveguide Flange | UBR Style |
| Body Material | High-Grade Machined Aluminum |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Key Tactical Features
Ku-Band Precision Pattern
Optimized for the full 10-15 GHz band, delivering symmetrical 54° beamwidths for balanced illumination and high-fidelity radar testing accuracy.
Direct Waveguide Integration
Engineered with a direct WR-75 interface for ultra-low-loss power transfer, eliminating transition losses and ensuring electromagnetic stability in precision setups.
Ultra-Lightweight Payload
At just 25g, this antenna offers an unmatched performance-to-weight ratio, minimizing mechanical load on positioning scanners or portable field setups.
500W Continuous Stability
Robustly engineered to handle massive 500W CW power loads while maintaining electrical consistency, suitable for high-intensity lab testing and tactical signal management.
Request a Professional Quote
Contact our engineering team to obtain individual radiation patterns, customized flange drilling, or specialized waterproof build requirements.
