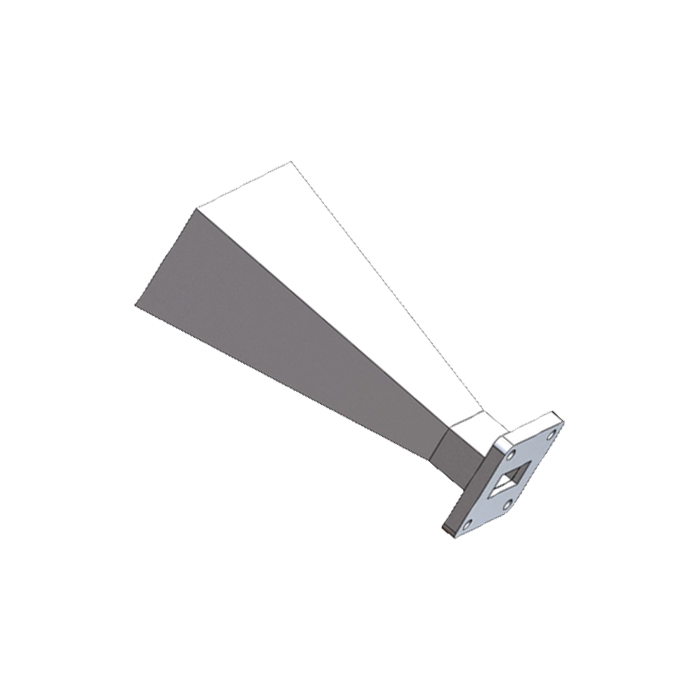

10 GHz to 15 GHz WR-75 Waveguide Horn Antenna
Model: WI-75-UBR-15 | 15 dBi Standard Gain | 500W Power Handling
The WI-75-UBR-15 is a high-performance Waveguide Horn Antenna professionally engineered for precise signal transmission and reception across the 10 GHz to 15 GHz spectrum. Delivering a consistent 15 dBi gain, this Ku-Band radiator is optimized for EMI/EMC Testing, antenna calibration, and professional Signal Defense operations. Precision-machined from high-grade aluminum with a standard UBR flange interface, it ensures unwavering Signal Integrity and high power capacity up to 500W.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 10 to 15 GHz (Ku-Band) |
| Waveguide Standard | WR-75 / WG17 / R120 |
| Nominal Gain | 15 dBi |
| V.S.W.R (Max) | 1.3 : 1 |
| -3dB Beamwidth (H/E Plane) | 32° / 31° |
| Maximum Power Handling | 500 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Construction
| Dimensions (W x H x L) | 40 x 62 x 122 mm |
| Net Weight | 45 g (Compact Design) |
| Waveguide Flange | UBR Style Flange |
| Material | High-Grade Aerospace Aluminum |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Key Tactical & Lab Features
High-Precision Signal Integrity
Advanced WR-75 geometry ensures minimal return loss and stable radiation patterns for mission-critical laboratory calibration and testing.
Rugged Power Management
Capable of supporting up to 500W continuous power, providing a reliable radiator for high-intensity Signal Security operations.
Aerospace-Grade Thermal Build
Manufactured from premium aluminum alloy to ensure superior heat dissipation and structural stability during long-term field deployments.
Consolidated Performance Data
Supported by a comprehensive performance database for accurate system calibration and repeatable, traceable measurement results.
Request a Professional Quote
Contact our engineering team to obtain individual calibration certificates, VSWR plots, or customized waveguide flange requirements.
