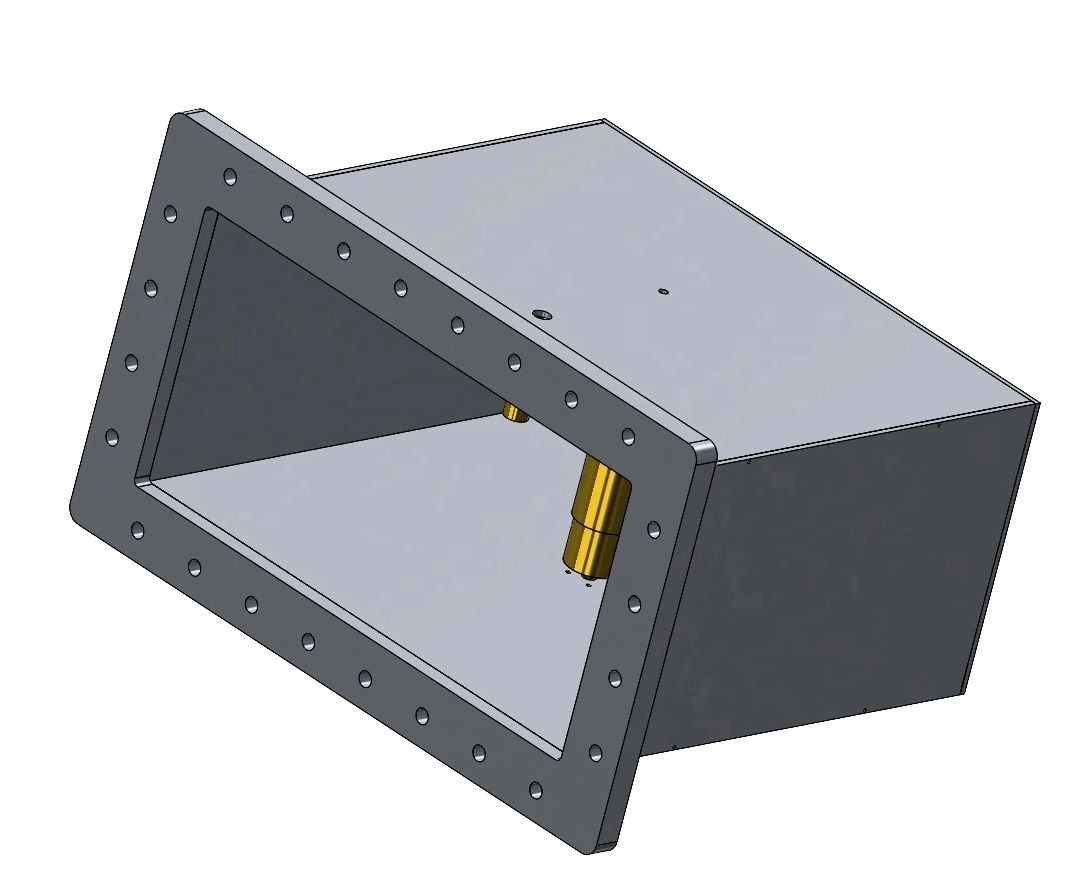

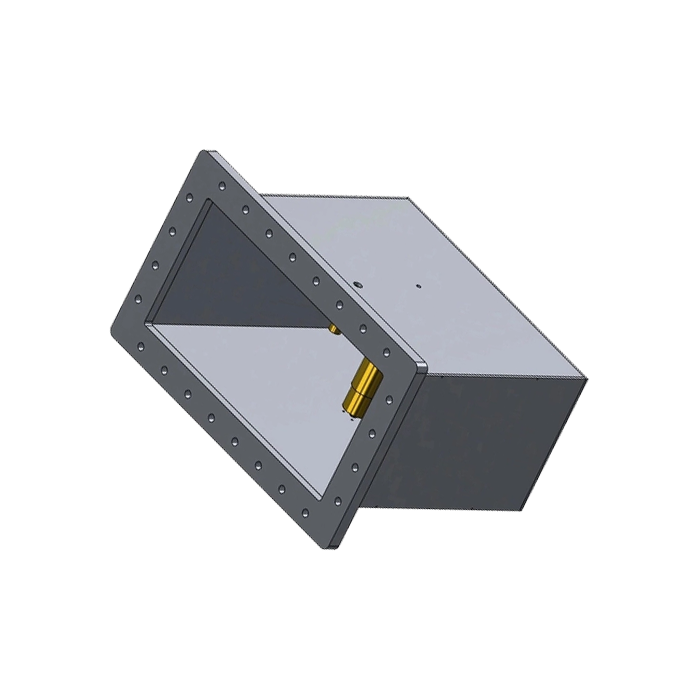

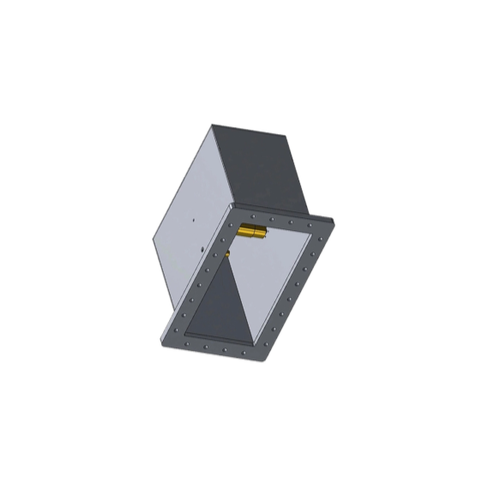

WR-1500 Waveguide to Coaxial Adapter
Precision UHF Transition | 3000W High Power handling | Model: WC-1500-UDR-716
The WC-1500-UDR-716 is an industrial-grade microwave Waveguide to Coaxial Adapter professionally engineered for the standard WR-1500 waveguide layout. Operating flawlessly within the 410 MHz to 620 MHz frequency range, this heavy-duty 8.95kg component is ideal for pairing with standard gain horn antennas in professional EMI/EMC testing, aerospace simulation, and high-frequency laboratory measurement environments. Featuring a rugged, high-power 7/16 DIN Female interface, it reliably manages severe continuous wave power loads up to 3000 Watts (3kW CW) while ensuring exceptional Signal Integrity and a low maximum V.S.W.R profile of 1.3 : 1. Expertly designed and manufactured in Taiwan, this high-conductivity aluminum adapter provides structural alignment and enduring stability for high-demand broadcast networks and radar transmitter sub-systems.
Electrical & RF Performance
| Frequency Range | 410 MHz to 620 MHz (UHF Band) |
| V.S.W.R (Max) | ≤ 1.3 : 1 |
| Maximum Power Handling | 3000 Watts (3kW CW Continuous Wave) |
| Nominal Impedance | 50 Ohm |
Mechanical & Construction Data
| Waveguide Size Standard | WR-1500 / EIA Standard (R4 / WG4) |
| Waveguide Flange Interface | UDR Style Flange (Universal) |
| Coaxial Connector Interface | 7/16 DIN Female (High-Power Configuration) |

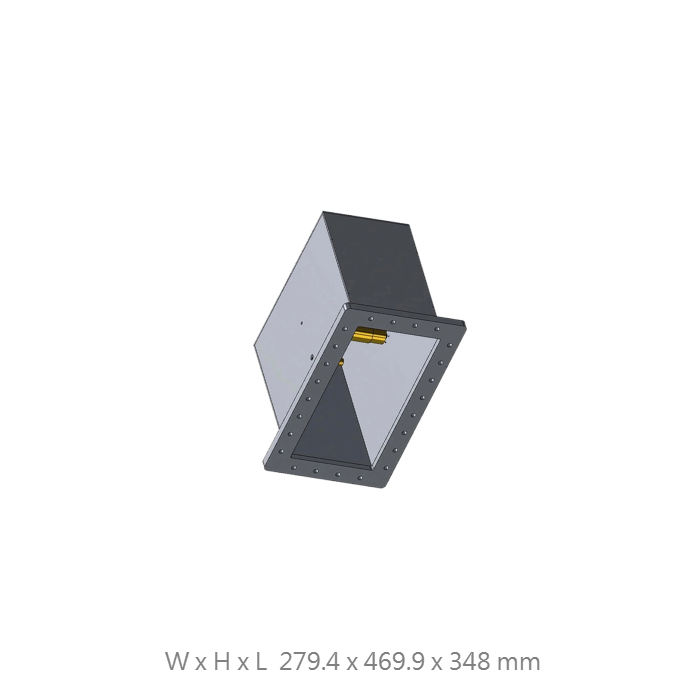

| Dimensions (W x H x L) | 279.4 x 469.9 x 348 mm |
| Net Weight | 8.95 kg (Heavy-Duty Structural Build) |
| Body Material Profile | High-Grade Precision Machined Aluminum |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
3kW High-Power Stability
Designed to handle massive continuous wave power loads up to 3kW, providing a robust, reliable transition for high-power broadcast feeds and industrial RF transmitter networks.
Low-Loss 7/16 DIN Interface
Equipped with a precision 7/16 DIN Female connector for superior power handling and significantly lower intermodulation distortion compared to standard coaxial configurations.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under rigid industrial quality standards, ensuring exact mechanical tolerances, alignment flatness, and enduring calibration stability.
Heavy-Duty Build Quality
Weighing nearly 9kg with high-fidelity machining, this robust structural adapter prevents phase shifts and guarantees mechanical resilience in severe high-power environments.
Request a Professional Quote
Contact our technical engineering team today to obtain individual certified V.S.W.R plots, alternative flange drilling layouts, or integrated RF sub-assembly custom modifications.
