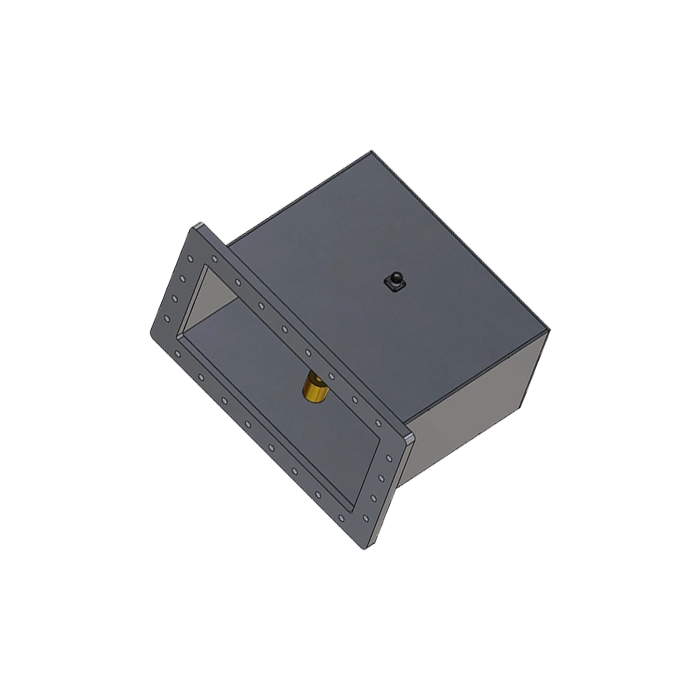

410 MHz to 620 MHz WR-1500 Waveguide to Coaxial Adapter
Model: WC-1500-UDR-NF | N-Female Connector | 1800W High Power
The WC-1500-UDR-NF is a high-power Waveguide to Coaxial Adapter professionally engineered for the WR-1500 standard. Operating within the 410 MHz to 620 MHz UHF spectrum, this heavy-duty 8.93kg component is ideal for pairing with standard gain horn antennas in professional EMI/EMC testing and laboratory measurement environments. Featuring a high-quality N-Female connector, it manages continuous power loads up to 1800 Watts (1.8kW CW), ensuring exceptional Signal Integrity and stable RF coupling for large-scale UHF broadcast and radar sub-systems.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 410 MHz to 620 MHz |
| Waveguide Standard | WR-1500 / R4 / WG4 |
| V.S.W.R (Max) | 1.3 : 1 |
| Maximum Power Handling | 1800 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Construction
| Dimensions (W x H x L) | 279.4 x 469.9 x 348 mm |
| Net Weight | 8.93 kg (Heavy Duty Build) |
| Waveguide Flange | UDR Style (Universal) |
| Body Material | High-Grade Machined Aluminum |
| Coaxial Connector | N-Female |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Key Tactical Features
1.8kW Power Domination
Designed to handle massive continuous power loads, providing a robust transition for high-power UHF station feeds and industrial RF transmitter sub-systems.
UHF Spectrum Integrity
Optimized internal transition geometry ensures minimal signal leakage and reflection when paired with professional UHF waveguide systems or standard gain horn antennas.
Heavy-Duty Build Quality
Weighing nearly 9kg with high-fidelity machining, this adapter ensures maximum mechanical stability and long-term structural durability in demanding industrial environments.
Standard N-Type Interface
Equipped with a precision N-Female connector, providing a reliable and widely compatible interface for professional lab measurement and field testing equipment.
Request a Professional Quote
Contact our engineering team to obtain individual V.S.W.R plots, customized flange drilling, or alternative waveguide adapter designs.
