Description & Specification

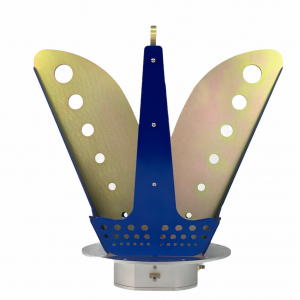

700 MHz to 12 GHz Open Boundary Quad-Ridged Horn Antenna
Model: HR-07M12G01-SF | High Precision Dual-Polarized | 300W CW Power
The HR-07M12G01-SF is a high-performance Open Boundary Quad-Ridged Horn Antenna professionally engineered for exceptional wideband capabilities across the 700 MHz to 12 GHz spectrum. Optimized for precision measurement, its dual-polarized quad-ridged architecture ensures uniform gain and exceptionally low VSWR across the entire operating range. This antenna is the premier instrument for EMI/EMC testing, Signal Defense research, and high-fidelity measurement labs requiring robust input power handling up to 300 Watts (CW).
Technical Specifications
Electrical & RF Performance
| Frequency Range | 700 MHz to 12 GHz |
| Antenna Type | Open Boundary Quad-Ridged Horn |
| Gain Profile | 3 dBi to 14 dBi |
| Polarization | Dual-Polarized (Linear V/H or ±45°) |
| Maximum Input Power | 300 Watts (CW) |
| V.S.W.R (Avg) | Low VSWR Optimized |
| Impedance | 50 Ohm |
| Connector Interface | Stainless Steel SMA-Female |
Mechanical & Interface Data
| Dimensions (L x W x H) | 405 x 405 x 375 mm |
| Body Material | Aerospace-Grade Machined Aluminum |
| Mounting Interface | 8mm Screw Holes Integration |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
| Operating Temp Range | -40°C to +70°C |
Key Tactical Features
Open Boundary Architecture
Features an advanced open boundary quad-ridged design to minimize structural weight while maintaining maximum boresight accuracy and pattern stability during high-frequency testing.
Superior Signal Integrity
Engineered for high-integrity electromagnetic acquisition, delivering exceptionally low VSWR and stable radiation envelopes required for rigorous laboratory calibration.
Professional EMC Deployment
An essential instrument for EMI/EMC testing infrastructures, supporting multi-band Signal Management and mission-critical protection operations across a multi-octave range.
Dual-Polarized Versatility
Capable of supporting Vertical, Horizontal, or ±45° polarization states, providing the tactical flexibility needed for complex radar link analysis and advanced research applications.
Request a Professional Quote
Contact our engineering team to obtain specialized gain calibration data, custom PTZ integration support, or technical files for broadband surveillance systems.
