Description & Specification

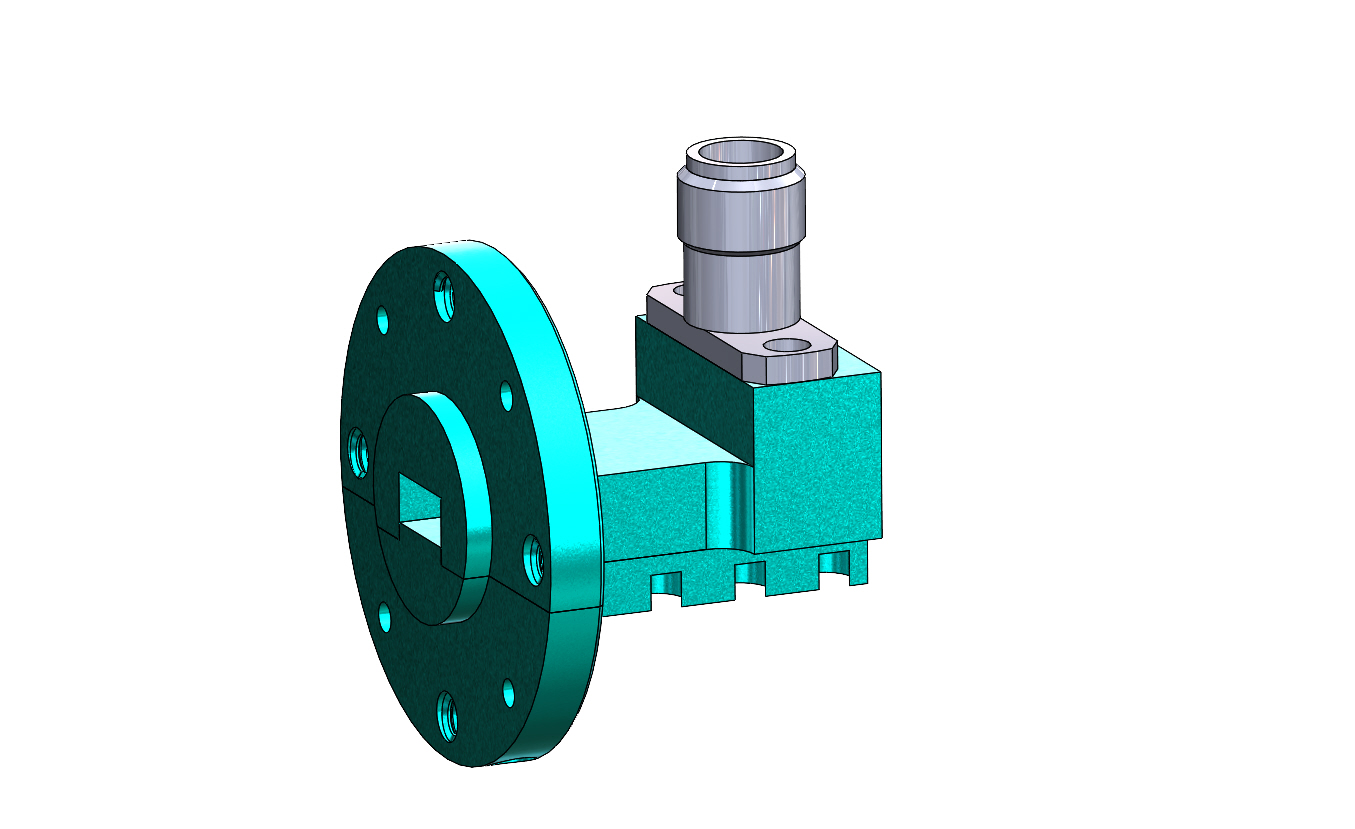

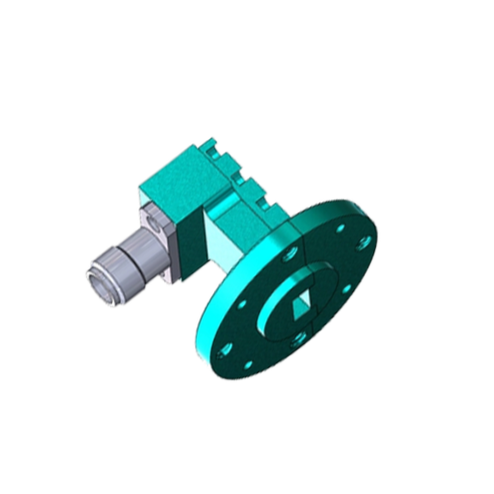

WC-22-UG-A1-KF Waveguide Adapter
MILLIMETER WAVE INTERCONNECT | Precision WR-22 Q-Band Profile | 33.0 - 50.0 GHz
The WC-22-UG-A1-KF is a high-precision Waveguide to Coaxial Adapter professionally engineered for ultra-high frequency signal transitions within the 33.0 GHz to 50.0 GHz Q-band spectrum. This premium millimeter-wave interconnect component provides a high-fidelity interface bridging a standard rectangular WR-22 waveguide architecture with coaxial systems via a high-durability V-Female (1.85mm) connector. Delivering an exceptional maximum VSWR profile of 1.25 : 1, it guarantees pure Signal Integrity and ultra-low return loss for 5G NR testing, satellite communications, and high-frequency radar monitoring installations. Expertly CNC-machined from high-grade aerospace aluminum in Taiwan, this ultra-lightweight 20g unit safely handles continuous power levels up to 60 Watts (CW) while ensuring long-term electromechanical stability.
Electrical Performance
| Frequency Range | 33.0 - 50.0 GHz |
| V.S.W.R (Max) | 1.25 : 1 |
| Maximum Input Power (CW) | 60 Watts |
Mechanical & Interface Specifications
| Waveguide Standard | WR-22 / R400 / WG23 |
| Waveguide Flange Interface | UG-383/U Style |
| Coaxial Connector Interface | V-Female (1.85mm) |

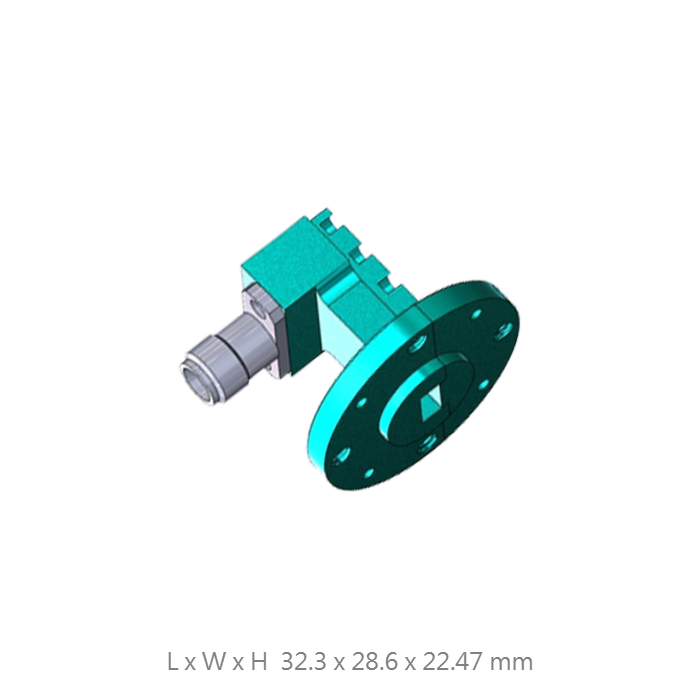

| Dimensions (W x H x L) | 32.3 x 28.6 x 22.47 mm |
| Net Weight | 20 g (Ultra-Lightweight) |
| Body Material | High-Grade Machined Aluminum |
| Connector Material | Stainless Steel |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Q-Band Precision
Strict internal mechanical tolerances ensure outstanding phase stability and VSWR performance optimized for next-generation 5G networks, satellite, and radar testing setups.
Stainless Steel V-Connector
Premium 1.85mm V-Female interface crafted from stainless steel ensuring maximum structural durability and highly repeatable results over extreme mating cycles.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under rigorous quality control standards, ensuring consistent performance parameters across severe laboratory configurations.
Aerospace Aluminum Body
Lightweight yet highly robust CNC-machined aluminum architecture featuring advanced surface treatments to guarantee ultra-low insertion loss and secure mechanical lifecycle stability.
Inquire About Professional Waveguide Solutions
Contact our engineering team today to discuss custom flange orientations, individualized test data, alternative coaxial ports, or specialized sub-assembly configurations.
