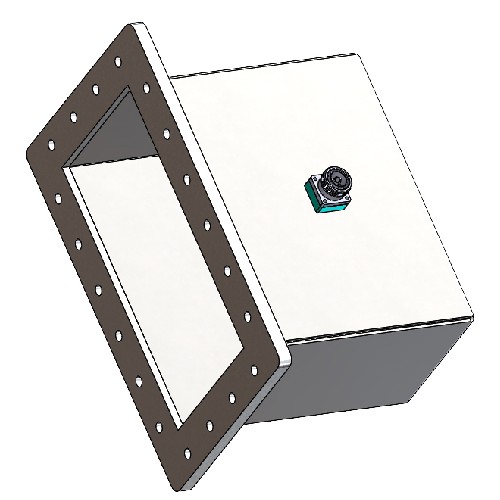

WR-1150 Waveguide to Coaxial Adapter
Model: WC-1150-UDR-716F | 630 - 970 MHz | 1800W | 7/16 DIN
The WC-1150-UDR-716F is a high-power Waveguide to Coaxial Adapter professionally engineered for the WR-1150 standard. Operating within the 630 MHz to 970 MHz UHF spectrum, this heavy-duty component facilitates an efficient transition between rectangular waveguides and coaxial transmission lines. Designed for high-energy applications such as UHF Digital Broadcasting and Industrial Microwave Heating (915 MHz ISM), it features a robust 7/16 DIN Female connector rated to sustain up to 1800W of continuous power while maintaining superior Signal Integrity and low thermal stress.
Electrical & RF Performance
| Frequency Range | 630 MHz to 970 MHz (UHF Band) |
| Maximum Power Handling | 1800 Watts (1.8 kW CW) |
| Waveguide Standard | WR-1150 (R8) |
| Coaxial Connector | 7/16 DIN Female |
| Flange Type | UDR (Union Drilled Rectangular) |
Mechanical & Physical Specs

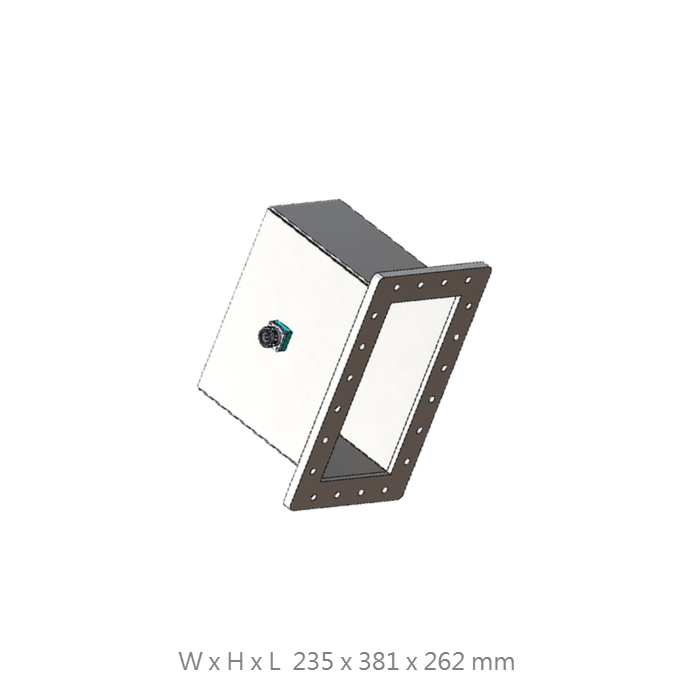

| Dimensions (WxHxL) | 235 x 381 x 262 mm |
| Net Weight | 4000 g (4.0 kg Heavy-Duty) |
| Body Material | High-Grade Aluminum |
| Structure | Standard Design (Waterproofing Available) |
| Origin | Made in Taiwan (FT-RF) |
Broad UHF & ISM Coverage
Perfectly suited for UHF broadcasting frequencies and the 915 MHz Industrial, Scientific, and Medical (ISM) band used in microwave heating.
1.8kW High-Power Stability
Designed for medium-to-high power transmission, capable of sustaining 1.8kW without overheating, ensuring reliability in continuous operation.
Superior 7/16 DIN Interface
Utilizes a 7/16 DIN interface for superior power handling and mechanical stability compared to standard N-type connectors in high-wattage setups.
Lightweight Aluminum Engineering
Precision-machined from aluminum to maintain high structural strength while keeping the weight manageable at 4kg for large-scale infrastructure.
Get a Quote / Custom RF Solutions
Contact us for specialized flange drilling, custom waterproofing, or integrated waveguide assembly requirements.
