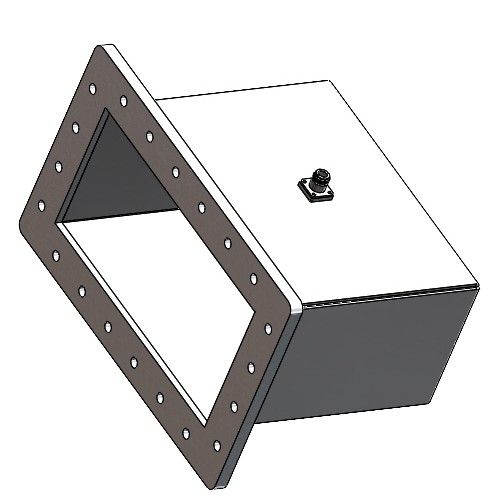

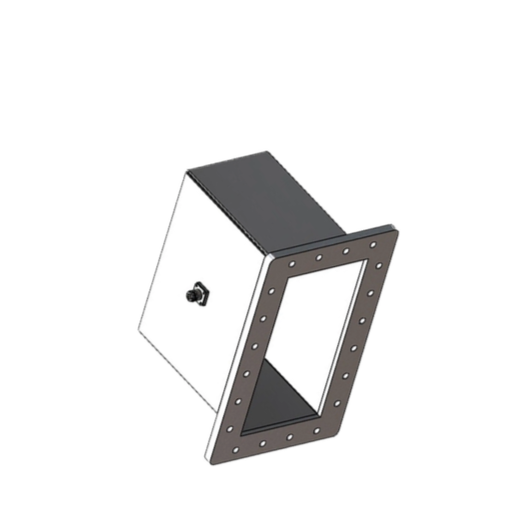

WR-1150 Waveguide to Coaxial Adapter
Precision UHF Transition | 1200W High Power Handling | Model: WC-1150-UDR-NF
The WC-1150-UDR-NF is an industrial-grade microwave Waveguide to Coaxial Adapter professionally engineered for the standard WR-1150 waveguide footprint. Operating reliably within the 630 MHz to 970 MHz frequency window, this heavy-duty component facilitates a highly optimized, low-loss coupling path between rectangular waveguides and coaxial networks. Featuring a ruggedized, high-durability coaxial N-Female connector interface and a standardized UDR Style flange layout, it manages continuous wave power loads up to 1200 Watts (1.2kW CW) while ensuring exceptional Signal Integrity. Expertly designed and manufactured in Taiwan, its robust 4kg machined aluminum body provides an excellent structural foundation and an integrated thermal sink, guaranteeing mechanical resilience and enduring calibration constancy for high-power broadcasting transmitter feeds, industrial heating systems, and advanced communications infrastructure.
Electrical & RF Performance
| Frequency Range | 630 to 970 MHz (UHF Band) |
| Maximum Power Handling | 1200 Watts (CW Continuous Wave) |
| Nominal Impedance | 50 Ohms |
Mechanical & Physical Specs
| Waveguide Size Standard | WR-1150 / EIA Standard (R8) |
| Waveguide Flange Designation | UDR Style Flange Layout |
| Coaxial Connector Interface | N-Female Interface |

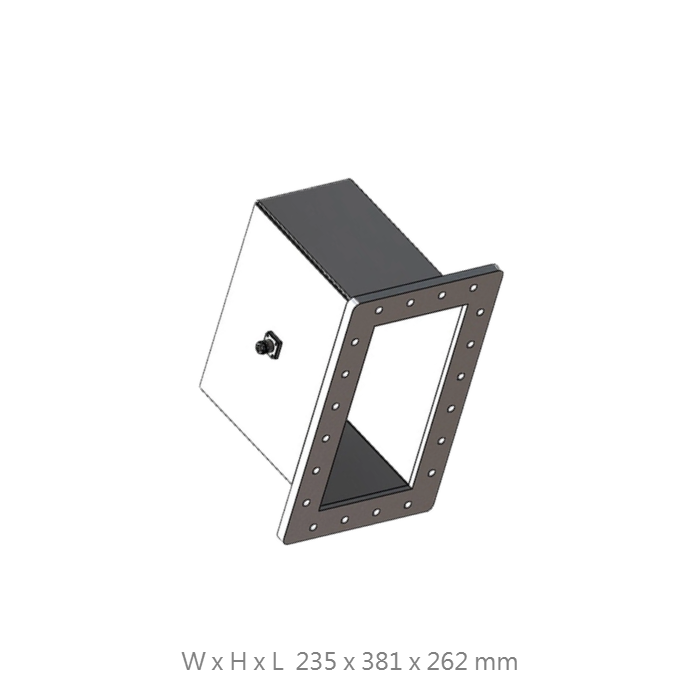

| Dimensions (W x H x L) | 235 x 381 x 262 mm |
| Net Weight | 4000 g (Heavy-Duty structural Architecture) |
| Body Material Profile | High-Grade Machined Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
High-Power UHF Efficiency
Optimized continuously across the 630-970 MHz band, providing a robust low-loss transition capable of managing continuous wave loads up to 1200W for industrial heating and broadcasting arrays.
Heavy-Duty Aluminum Build
Precision-machined from 4kg of high-grade aluminum to ensure exceptional structural stiffness and highly effective thermal dissipation during constant high-power signal transitions.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under rigid quality assurance guidelines, guaranteeing outstanding mechanical flat alignment, precise internal launch boundaries, and calibration constancy.
Professional N-Female Interface
Equipped with a high-durability, precision-aligned coaxial N-Female port, ensuring seamless electromechanical integration with professional heavy-duty RF test cables and modules.
Get a Quote / Custom RF Solutions
Contact our technical engineering team today to request custom flange drilling patterns, individual certified V.S.W.R plots, specialized waterproof architectures, or custom color coatings.
