Description & Specification

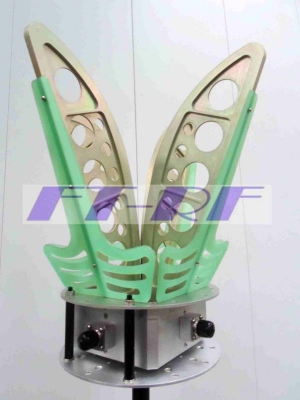

700MHz to 6.5GHz Lightweight Open Boundary Quad-Ridged Horn
Next-Gen Wireless Testing | Specialized for Wi-Fi 6, OTA & UWB
The Lightweight Open Boundary Quad-Ridged Broadband Horn Antenna is a cutting-edge solution designed for high-precision wireless infrastructure and terminal testing. Utilizing 6061 Aluminum alloy, this antenna achieves a remarkably low weight of just 1.95 kg. Its open boundary architecture minimizes interference and optimizes radiation patterns for OTA (Over-The-Air) testing and Wi-Fi 6 sweeps. Designed and manufactured in Taiwan, it provides dual-polarization capability through precision-engineered N-Female connectors.
Technical Specifications
Electrical Specifications
[Image of open boundary quad-ridged horn antenna radiation pattern for Wi-Fi 6/UWB testing]| Frequency Range | 700 MHz - 6.5 GHz |
| V.S.W.R (Avg) | 2.5 : 1 |
| Antenna Type | Quad-Ridged Broadband Horn |
| Radiation | Directional |
| Gain | 5 dBi to 12 dBi |
| Antenna Factor | 21 - 40 dB/m |
| Polarization | Vertical & Horizontal / ± 45° |
| Maximum Power Handling | 50 W |
| Vertical Beamwidth | 50° |
| Horizontal Beamwidth | 70° |
| Impedance | 50 Ohm |
| Connector | N-Female x 2 (Stainless Steel) |
Mechanical & Environmental Specifications

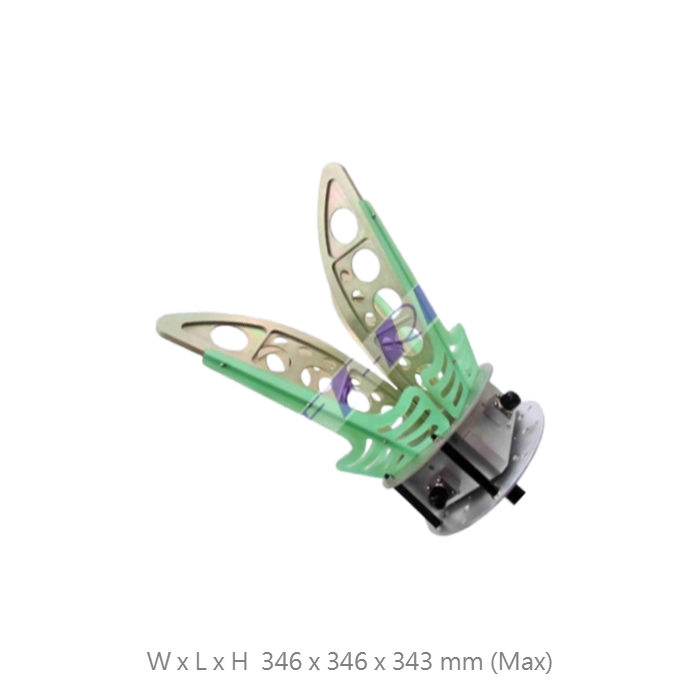

[Image of lightweight quad-ridged horn antenna mechanical dimensions diagram]| Dimensions (WxL) | 346 x 346 mm (Max) |
| Height | 343 mm (Max) |
| Antenna Weight (G.W) | 1.95 kg |
| Material | 6061 Aluminum Alloy |
| Mount Style | Antenna Mounting 8mm Screws |
| Operating Temperature | -10°C to +60°C |
| Compliance | RoHS, WEEE, CE, FCC |
Key Features
Open Boundary Innovation
Reduces side-lobe levels and weight, ensuring superior radiation efficiency and phase center stability.
Reduces side-lobe levels and weight, ensuring superior radiation efficiency and phase center stability.
Lightweight Portability
At only 1.95 kg, it is optimized for high-mobility test setups and integrated OTA measurement chambers.
At only 1.95 kg, it is optimized for high-mobility test setups and integrated OTA measurement chambers.
Dual Polarization (N x 2)
Two independent feeds allow for simultaneous capture of orthogonal polarizations with high port isolation.
Two independent feeds allow for simultaneous capture of orthogonal polarizations with high port isolation.
Wi-Fi 6 & UWB Ready
Specifically tuned to meet the demanding bandwidth requirements of Wi-Fi 6/6E and Ultra-Wideband protocols.
Specifically tuned to meet the demanding bandwidth requirements of Wi-Fi 6/6E and Ultra-Wideband protocols.
DC Short Safety
Integrated lightning protection design prevents damage to sensitive RF front-ends from electrical transients.
Integrated lightning protection design prevents damage to sensitive RF front-ends from electrical transients.
Taiwan Engineering
Precision crafted in Taiwan using aerospace-grade 6061 Aluminum for maximum mechanical and thermal integrity.
Precision crafted in Taiwan using aerospace-grade 6061 Aluminum for maximum mechanical and thermal integrity.
Contact Us
For pricing, calibration reports, or technical inquiries regarding this Lightweight Horn, please contact us:
