WR137 Waveguide Input Antenna (WI Series)
- Select
WI Series • C-Band (5.85 – 8.20 GHz)
FT-RF WR137 Waveguide Input Antenna
FT-RF WR137 Waveguide Input Antennas feature direct WR137 rectangular flange feeds across C-band spectrums (5.85 GHz to 8.20 GHz). Manufactured from high-grade aluminum, they deliver reliable gain calibration and stable linear polarization for C-band satellite uplink/downlink transponders, radar systems, and microwave test benches.
Built with precision electroformed/machined flares and standard CPR137G or FDP70 cover flanges, WR137 input horns serve as high-efficiency feeds and reference antennas in satellite ground stations and anechoic chambers.
🛠️ Engineering & Customization Options
Tailored structural designs and custom bracket options:
- Custom Dimensions: Tailored flare lengths & holes.
- Phase-Matched Sets: Gain and phase matched pairs.
- Chamber Brackets: Low-reflection mounting plates.
Direct Support: info-tw@ft168.com.tw
| Parameter | Technical Specifications |
|---|---|
| Frequency Range | 5.85 GHz to 8.20 GHz (C-Band) |
| Input Interface | Direct WR137 Waveguide Flange Feed |
| Available Gain | 10 dBi, 15 dBi, 20 dBi, 25 dBi |
| Flange Configuration | CPR137G / FDP70 Cover Flange |
| Certifications | ISO 9001:2015 / RoHS Compliant |
NEW
FT-RF
| Frequency Range: | 5.85 - 8.2 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 25 dBi Typical |
| Waveguide Size: | WR-137 (UDR / 800W) |
| Stock: | 0 |
| 2026/06/17 | |
NEW
FT-RF
| Frequency Range: | 5.85 - 8.2 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 20 dBi Typical |
| Waveguide Size: | WR-137 (UDR / 800W) |
| Stock: | 0 |
| 2026/06/17 | |
NEW
WI-137-UDR-15E
WR137 5.85 to 8.2GHz 15 dbi E-plane sectoral Waveguide Horn Antenna, Flange: UDR
View Details
FT-RF
| Frequency Range: | 5.85 - 8.2 GHz |
| Antenna Type: | E-Plane Sectoral Horn |
| Nominal Gain: | 15 dBi Typical |
| Waveguide Size: | WR-137 (800 Watts CW) |
| Stock: | 0 |
| 2026/06/17 | |
NEW
FT-RF
| Frequency Range: | 5.85 - 8.2 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 25 dBi Typical |
| Waveguide Size: | WR-137 (UDR / 800W) |
| Stock: | 0 |
| 2026/06/17 | |
NEW
WI-137-UDR-10H
WR137 5.85 to 8.2GHz, 10dbi, H-Plane Sectoral Waveguide Horn Antenna, Flange: UDR
View Details
FT-RF
| Frequency Range: | 5.85 - 8.2 GHz |
| Antenna Type: | H-Plane Sectoral Horn |
| Nominal Gain: | 10 dBi Typical |
| Waveguide Size: | WR-137 (800 Watts CW) |
| Stock: | 0 |
| 2026/06/17 | |
FT-RF
| Frequency Range: | 5.85 - 8.2 GHz |
| Antenna Type: | Standard Horn Antenna |
| Nominal Gain: | 10 dBi Typical |
| Waveguide Size: | WR-137 (UDR / 800W) |
| Stock: | 0 |
| 2026/06/17 | |
NEW
WI-137-UAR-12H
WR137 5.85 to 8.2GHz 12dbi H-Plane Sectoral Waveguide Horn Antenna, UAR Flange
View Details
FT-RF
| Frequency Range: | 5.85 - 8.2 GHz |
| Antenna Type: | Standard Gain Horn |
| Nominal Gain: | 10 dBi |
| Waveguide Size: | WR137 |
| Stock: | 0 |
| 2026/06/17 | |
NEW
WI-137-UAR-10H
WR137 5.85 GHz to 8.2 GHz 10dbi Waveguide Horn Antenna H-plane sectoral Horn Antenna, UAR Flange without Adapter
View Details
FT-RF
| Frequency Range: | 5.85 - 8.2 GHz |
| Antenna Type: | H-Plane Sectoral Horn |
| Nominal Gain: | 10 dBi Typical |
| Waveguide Size: | WR-137 (800 Watts CW) |
| Stock: | 0 |
| 2026/06/17 | |
FT-RF
| Frequency Range: | 5.85 - 8.2 GHz |
| Antenna Type: | Standard Gain Horn |
| Nominal Gain: | 10 dBi |
| Waveguide Size: | WR137 |
| Stock: | 0 |
| 2026/06/17 | |

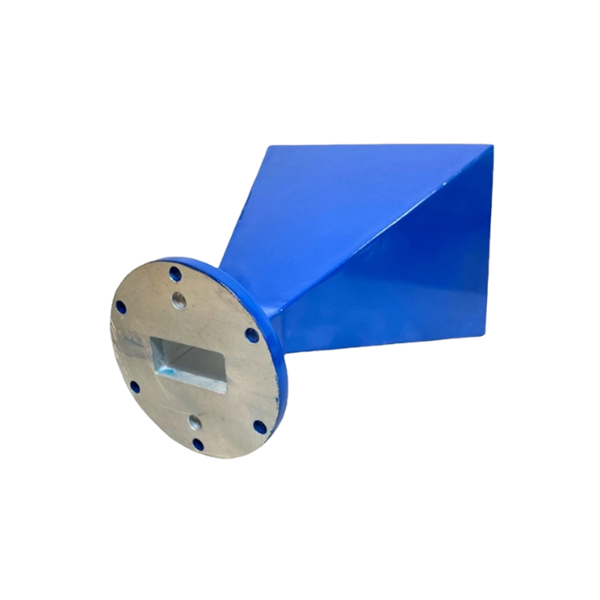

WI-137-UAR-15
WR137 5.85GHz to 8.2GHz 15dbi Waveguide Horn Antenna without Adapter, UAR Flange
View Details
FT-RF
📄 DATASHEET| Frequency Range: | 5.85 - 8.2 GHz |
| Antenna Type: | Standard Gain Horn |
| Nominal Gain: | 15 dBi |
| Waveguide Size: | WR137 |
| Stock: | 1 |
| 2026/06/09 | |
WI-137-UAR-20
WR137 5.85GHz to 8.2GHz 20dbi Waveguide Horn Antenna without Adapter, UAR Flange
View Details
FT-RF
| Frequency Range: | 5.85 - 8.2 GHz |
| Antenna Type: | Standard Gain Horn |
| Nominal Gain: | 20 dBi |
| Waveguide Size: | WR137 (C-Band) |
| Stock: | 0 |
| 2026/06/09 | |
