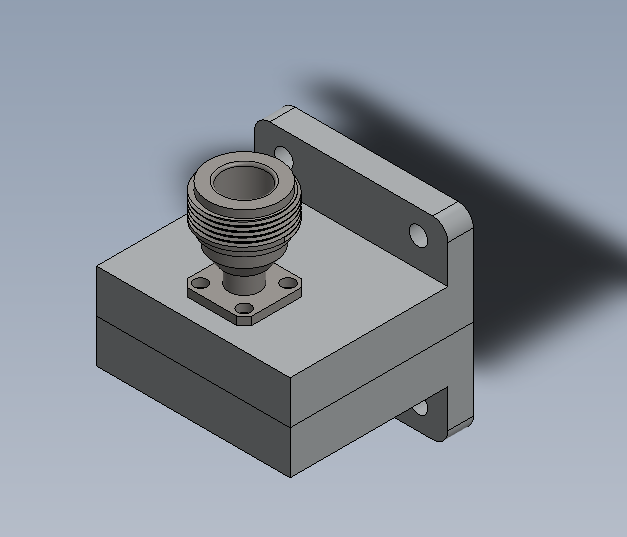

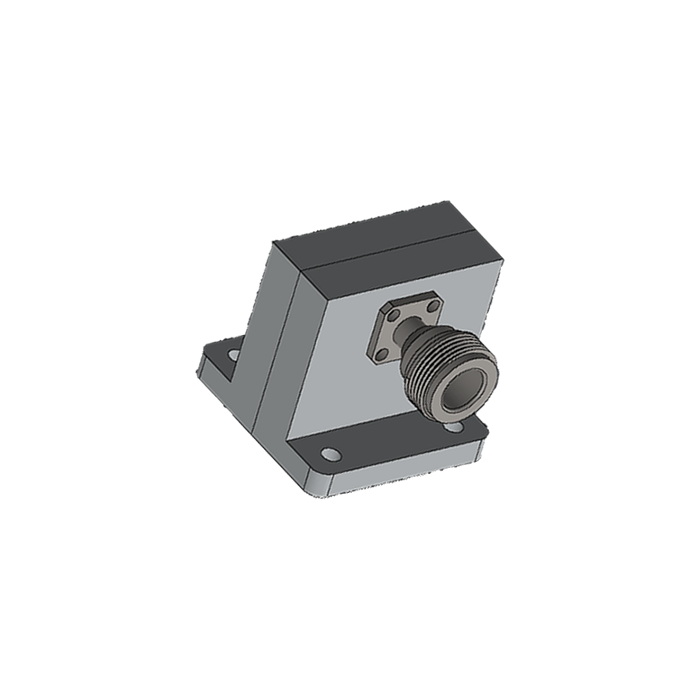

| Frequency Range | 10.0 GHz to 15.0 GHz (Ku-Band Continuous) |
| V.S.W.R (Max Profile) | ≤ 1.25 : 1 |
| Maximum Power Handling | 300 Watts (CW Continuous Wave) |
| Nominal Impedance | 50 Ohms |
| Waveguide Size Standard | EIA WR-75 (R120 / WG17 Layout) |
| Waveguide Flange Designation | UBR Style Flange Standard Layout (Square Flat Cover) |
| Coaxial Connector Interface | N-Female Interface Premium Port Layout (Stainless Steel SUS) |

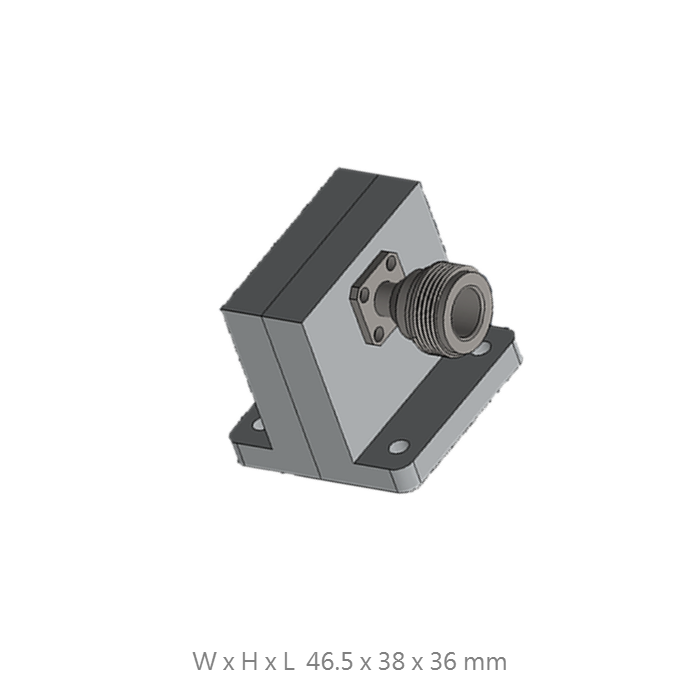

| Physical Dimensions (W x H x L) | 46.5 x 38 x 36 mm |
| Net Weight | 70 g (Precision Lightweight Profile) |
| Body Material Profile | High-Grade Machined Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
Optimized for the 10.0-15.0 GHz range, providing the robust low-loss transition geometry required for professional Ku-band link stability and high-fidelity signal management.
Equipped with a high-durability stainless steel N-Type connector, ensuring reliable electrical contact and structural wear resistance for repeated field deployments.
Precision designed and manufactured in Taiwan under strict industrial quality control standards, ensuring consistent internal launcher dimensions, absolute flat positioning alignment, and calibration constancy.
Engineered to handle up to 300W of continuous power while maintaining minimal VSWR, ideal for high-intensity laboratory testing and tactical communication applications.
Features a standardized square UBR waveguide flange layout for secure mechanical anchoring, ensuring stable power transfer in professional RF infrastructures.
Contact our technical engineering team today to request custom flange drilling patterns, custom waterproofing layouts, specialized non-reflective treatments, or alternative specialized tripod mounting interfaces.
