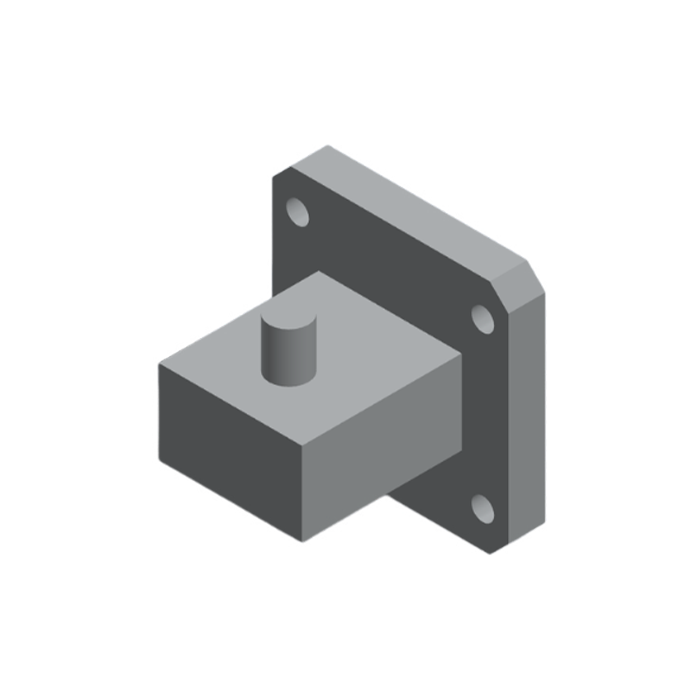

WR-75 Waveguide to Coaxial Adapter
Precision X/Ku-Band Transition | 45g Ultra-Lightweight Cube | 10.0 GHz – 15.0 GHz
The WC-75-UBR-SF is a laboratory-grade microwave Waveguide to Coaxial Adapter professionally engineered for strict adherence to the rectangular WR-75 architectural standard. Operating continuously across the 10.0 GHz to 15.0 GHz spectrum (covering upper X-band and lower Ku-band segments), this premium transition component ensures stable electromechanical coupling and maximum energy transfer with an exceptionally low nominal V.S.W.R profile of 1.25 : 1. Manufactured from high-grade aluminum alloy via precision machining in Taiwan, this "Featherweight" 45 g adapter features an ultra-compact 38mm cubic layout mated to a precision coaxial SMA-Female connector port, safely managing continuous wave power loads up to 200 Watts (CW). This specialized layout makes it the definitive choice for weight-sensitive airborne radar assemblies, drone communications, portable VSAT terminals, wireless testing chambers, and mission-critical laboratory calibration setups.
Electrical & RF Performance
| Frequency Range | 10.0 GHz to 15.0 GHz (X / Ku Band Continuous) |
| V.S.W.R (Max Profile) | ≤ 1.25 : 1 |
| Maximum Power Handling | 200 Watts (CW Continuous Wave) |
| Nominal Impedance | 50 Ohms |
Mechanical Specifications
| Waveguide Size Standard | EIA WR-75 (R120 / WG17 Layout) |
| Waveguide Flange Designation | UBR Style Flange Standard Layout (Square Flat Cover) |
| Coaxial Connector Interface | SMA-Female Interface Premium Port Layout |

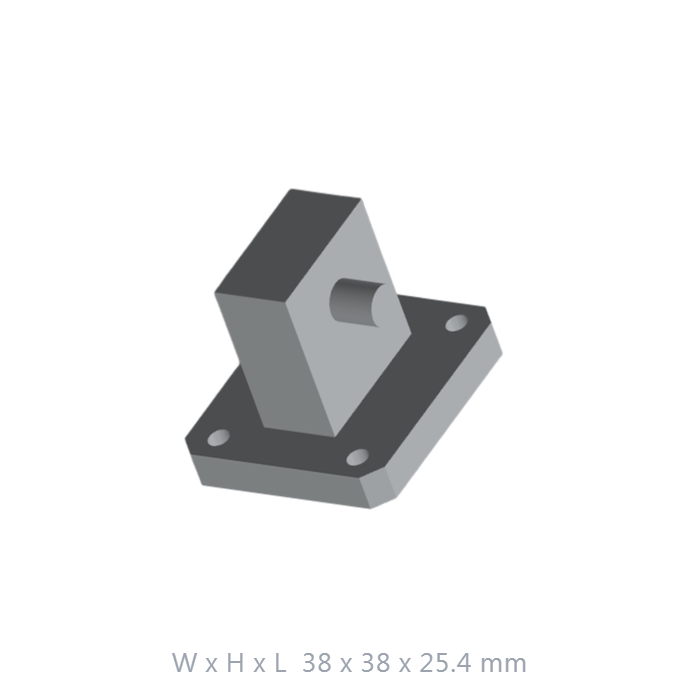

| Physical Dimensions (W x H x L) | 38 x 38 x 25.4 mm |
| Net Weight | 45 g (Precision Featherweight Layout) |
| Body Material Profile | High-Grade Machined Aluminum |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
45g Featherweight Layout
One of the lightest WR75 adapters available, specifically engineered to minimize structural payloads during tactical aerospace and mobile drone device integrations.
38mm Cube Footprint
Ultra-compact architectural profile fits effortlessly within highly confined microwave enclosures and dense RF grouping clusters where layout space is at a critical premium.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict industrial quality control standards, ensuring consistent internal launcher dimensions, absolute flat positioning alignment, and calibration constancy.
Wideband 10.0-15.0 GHz Agility
Seamlessly overlaps crucial segments of both upper X-band and lower Ku-band frequencies, providing premium system modularity for defense link and radar transmitter testing parameters.
SMA Precision Interface
Standard premium SMA-Female coaxial port guarantees exceptionally low insertion reflection and immediate compatibility with standardized cables and calibration equipment networks.
Standardized UBR Interface
Features a standardized square UBR flat cover flange interface layout for secure mechanical coupling, ensuring stable power transitions in demanding industrial RF networks.
Get a Quote / Customization
Contact our technical engineering team today to request custom flange drilling patterns, individual certified V.S.W.R plot charts, specialized surface finishes, or alternative coaxial port interfaces.
