Description & Specification

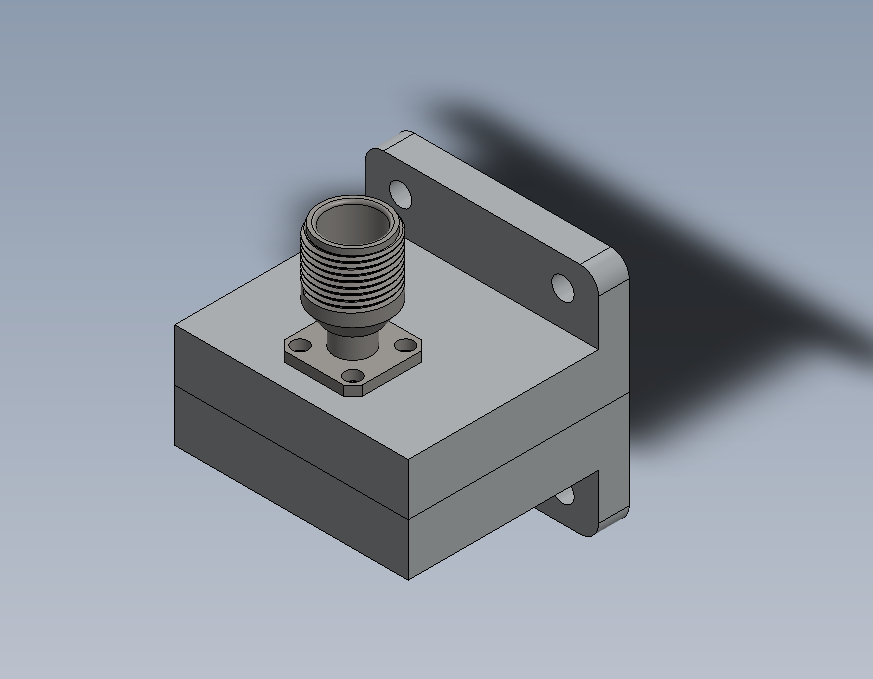

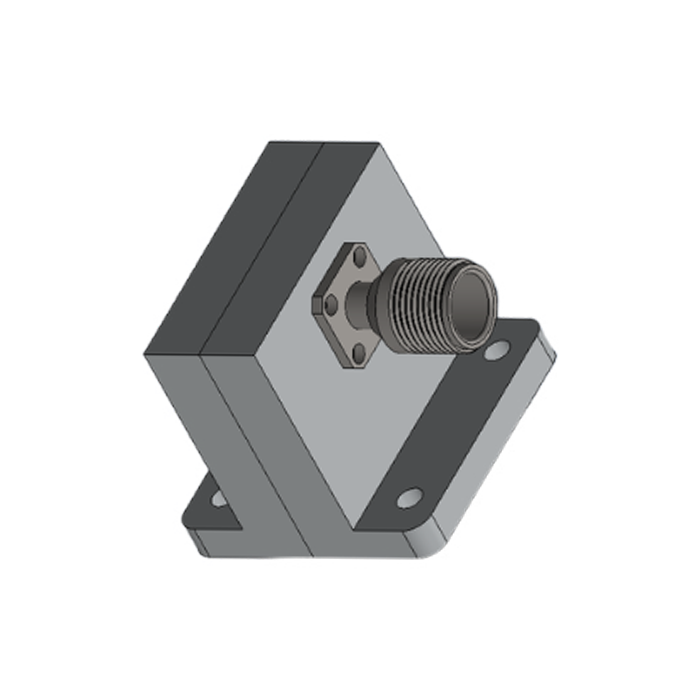

10.0 GHz to 15.0 GHz WR-75 Waveguide to Coaxial Adapter
Model: WC-075-UBR-TF | TNC-Female Connector | 260W CW
The WC-075-UBR-TF is a high-performance Waveguide to Coaxial Adapter expertly designed for the WR-75 standard. Operating across the 10.0 GHz to 15.0 GHz frequency range (Ku-Band), this precision component delivers an ultra-low-loss transition for superior Signal Integrity. Featuring a robust Threaded TNC-Female interface and a standardized UBR flange, it is engineered to handle up to 260 Watts of continuous power. It serves as an essential link for satellite communications, Ku-band radar systems, and mission-critical RF laboratory measurement infrastructures.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 10.0 GHz to 15.0 GHz (Ku-Band) |
| Waveguide Standard | WR-75 / R120 / WG17 |
| Maximum Power Handling | 260 Watts (CW) |
| V.S.W.R (Max) | 1.35 : 1 |
| Impedance | 50 Ohm |
Mechanical & Construction

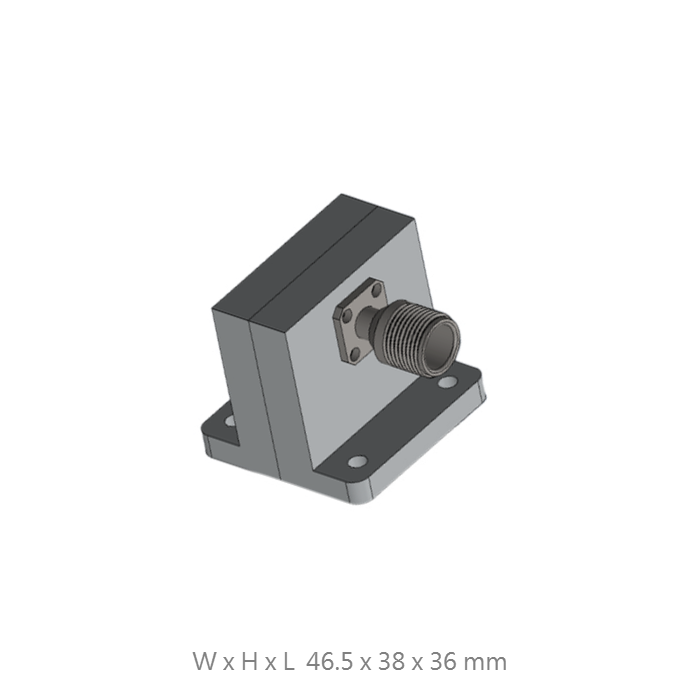

| Dimensions (W x H x L) | 46.5 x 38 x 36 mm |
| Net Weight | 65 g (Ultra-Lightweight) |
| Waveguide Flange | UBR Style (Universal) |
| Body Material | High-Grade Machined Aluminum |
| Coaxial Connector | TNC-Female (Threaded Interface) |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Key Tactical Features
Ku-Band Precision Transition
Optimized for the 10.0-15.0 GHz range, providing the robust low-loss transition geometry required for high-fidelity Ku-band link stability and professional signal management.
Threaded TNC Interface
Equipped with a TNC-Female connector offering superior vibration resistance and mechanical anchoring compared to push-on connectors, ideal for high-power field deployments.
260W High-Power Handling
Robustly engineered to sustain up to 260W of CW power while maintaining electrical consistency, ideal for intensive laboratory research and tactical field operations.
Standardized UBR Integration
Features a standardized UBR waveguide flange for secure mechanical anchoring, ensuring stable power transfer in professional RF infrastructures and Signal Defense sub-systems.
Request a Professional Quote
Contact our engineering team to obtain individual V.S.W.R plots, customized flange drilling, or alternative waveguide adapter designs.
