| Frequency Range | 10.0 GHz to 15.0 GHz (X / Ku Band Continuous) |
| V.S.W.R (Max Profile) | ≤ 1.25 : 1 |
| Maximum Power Handling | 200 Watts (CW Continuous Wave) |
| Nominal Impedance | 50 Ohms |

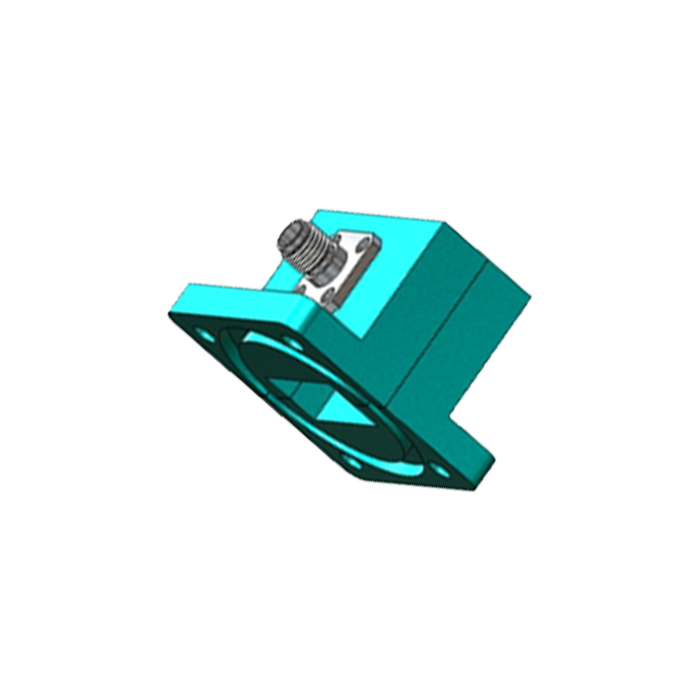

| Waveguide Size Standard | EIA WR-75 (R120 / WG17 Layout) |
| Waveguide Flange Designation | PBR Style Flange Layout (Compatible with UG-39/U Square layouts with gasket groove) |
| Coaxial Connector Interface | SMA-Female Interface Premium Port Layout (Stainless Steel SUS) |
| Physical Dimensions (W x H x L) | 38 x 38 x 25.4 mm |
| Net Weight | 45 g (Precision Ultra-Compact Layout) |
| Body Material Profile | High-Grade Machined Aluminum Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
Optimized internal cavity transition geometry effectively eliminates mode reflections, ensuring minimal return loss and high transmission efficiency across the 10.0–15.0 GHz spectrum.
Utilizes a premium passivated stainless steel SMA-Female connector interface to completely resist thread deformation and survive high mate/demate cycles in demanding laboratory test setups.
Precision designed and manufactured in Taiwan under strict industrial quality control standards, ensuring consistent internal dimensions, absolute flat positioning alignment, and calibration constancy.
Precision-engineered to manage continuous transmission loads up to 200W CW safely without physical distortion, rendering it a highly reliable link for both Signal Security and communications testing arrays.
Equipped with a standard square PBR flange layout with integrated pressure sealing groove for secure, low-leakage mechanical anchoring into severe WR-75 waveguide distribution networks.
Contact our technical engineering team today to request certified individual V.S.W.R plot charts, mechanical drawing files, alternative specialized flange drilling layouts, or alternative custom connector ports.
