| Frequency Range | 10.0 GHz to 15.0 GHz (X / Ku Band Continuous) |
| V.S.W.R (Max Profile) | ≤ 1.25 : 1 |
| Maximum Power Handling | 300 Watts (CW Continuous Wave) |
| Nominal Impedance | 50 Ohms |
| Waveguide Size Standard | EIA WR-75 (R120 / WG17 Layout) |
| Waveguide Flange Designation | PBR Style Flange Layout (Compatible with UG-39/U Square layouts with gasket groove) |
| Coaxial Connector Interface | N-Female Interface Premium Port Layout (Stainless Steel SUS) |
| Physical Dimensions (W x H x L) | 46.5 x 38 x 36 mm |
| Net Weight | 70 g (Ultra-Compact Structural Build) |
| Body Material Profile | High-Grade Precision Machined Aluminum |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
Optimized internal transition geometry effectively eliminates mode reflections, ensuring minimal return loss and high transmission efficiency for mission-critical satellite and radar testing.
Features a premium passivated stainless steel N-Female coaxial interface port to provide superior electrical contact stability and withstand rigorous mate/demate cycles in demanding laboratory environments.
Precision designed and manufactured in Taiwan under strict industrial quality control standards, ensuring consistent internal dimensions, absolute flat positioning alignment, and calibration constancy supported by a comprehensive traceable data network.

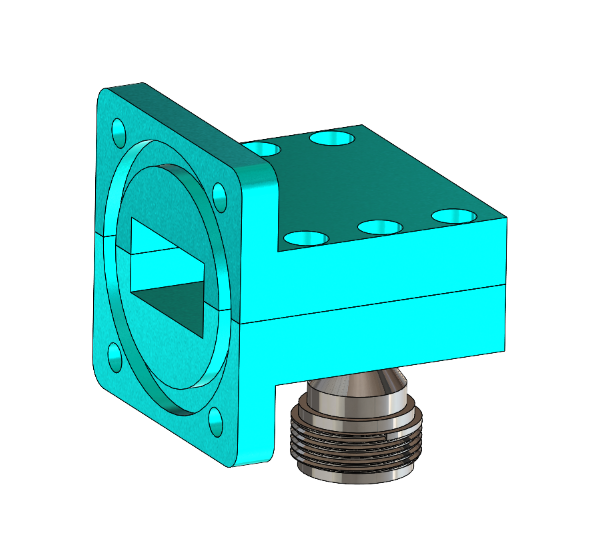

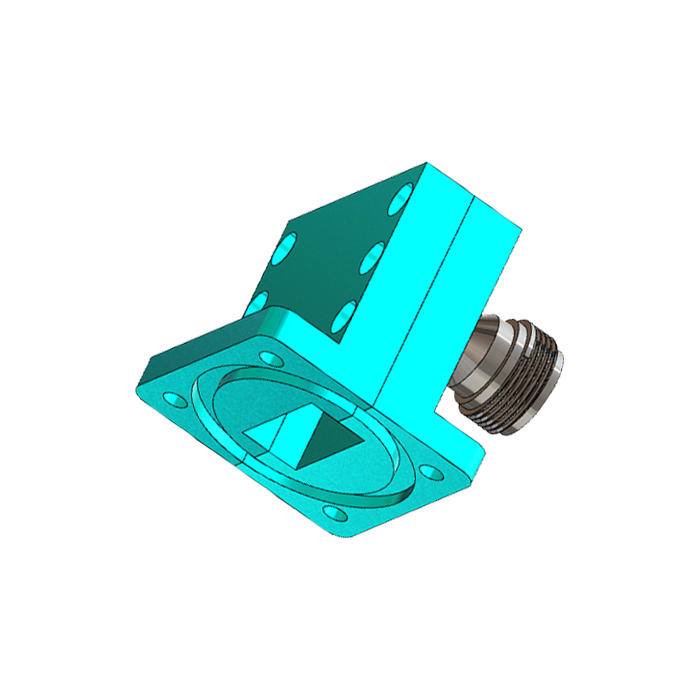

Equipped with a standard square PBR flat cover flange layout with integrated pressure sealing groove for secure, low-leakage mechanical integration into severe waveguide distribution networks.
Contact our technical engineering team today to request certified individual V.S.W.R plot charts, mechanical drawing files, specialized surface treatments, or custom waveguide flange patterns.
