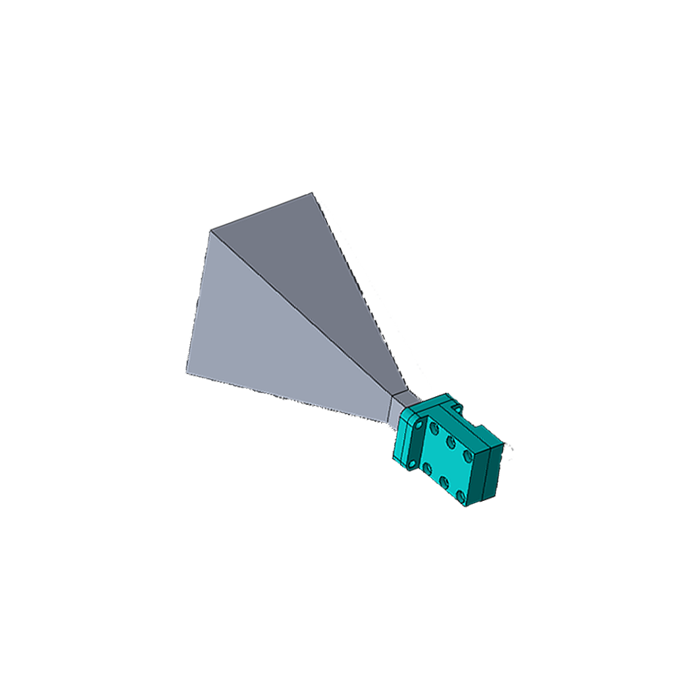

WR-34 22GHz - 33GHz 20dbi 標準增益波導喇叭天線 K-Female 連接器法蘭:UBR UG-1530/U WR-34 22GHz to 33GHz 20dbi Standard Gain Waveguide Horn Antenna K-Female Connector Flange: UBR UG-1530/U WR-34 22GHz đến 33GHz 20dbi Ăng ten ống dẫn sóng đạt độ lợi tiêu chuẩn Mặt bích kết nối K-Female: UBR UG-1530 / U

Model No: HS-034-UBR-20A-KF

Product Datasheet: Download

  • Waveguide: WR-34
  • Frequency: 22 to 33GHz
  • Gain: 20 dbi
  • Max Power (W): 200W
Quantity:
INQUIRY

Application:

  • WR-34 22GHz to 33GHz 20dbi Standard Gain Waveguide Horn Antenna, K-Female Connector, Flange: UBR UG-1530/U

Feature

  • Good performance
  • Meet international standards
  • Good appearance design

Custom design: (Please contact us: info-tw@ft168.com.tw)

  • Waterproof structure
  • PTZ Controlling function
  • Tripod or antenna mounting design
  • Customize Color

Specifications:

  • Waveguide: WR-34
  • Frequency: 22 to 33GHz
  • Gain: 20 dbi
  • Max Power (W): 200W
  • H-plane (-3db): 20
  • E-plane (-3db): 19

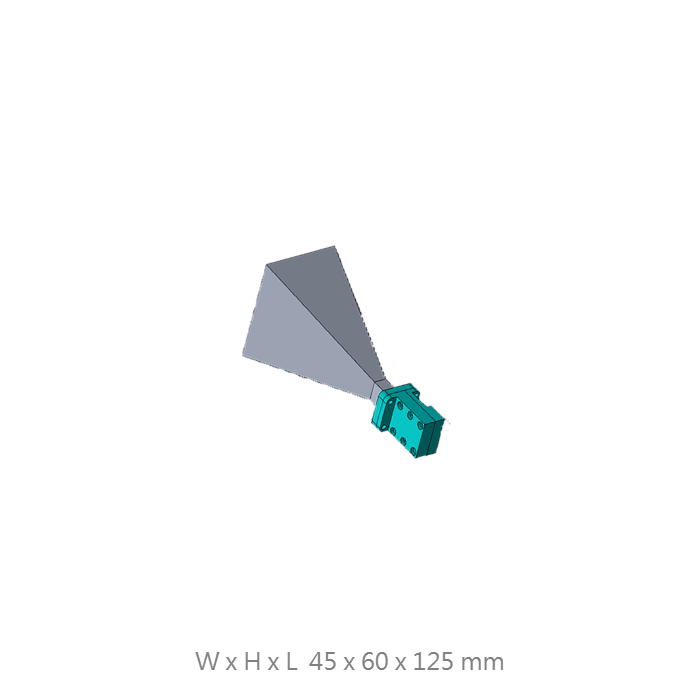

  • Size(mm): 45x60x125
  • Weight(g): 70
  • Waveguide Flange: UG-1530/U
  • Connector: K-Female
  • V.S.W.R: 1.25
