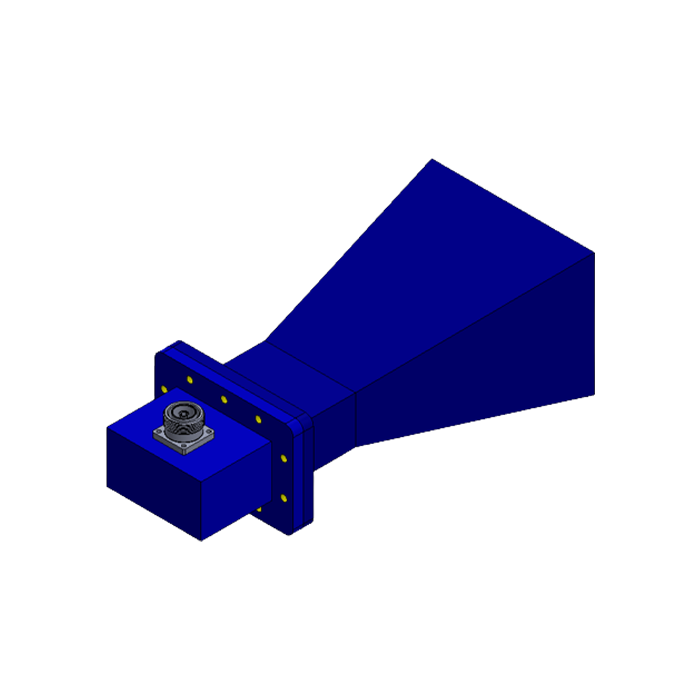

HS-340-UDR-10A-SF Standard Gain Horn Antenna
2.2 GHz to 3.3 GHz | 10 dBi Gain | WR-340 Waveguide
The HS-340-UDR-10A-SF (Original Model No. HS-34010A-SF) is a precision Standard Gain Waveguide Horn Antenna manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF). Operating within the 2.2 GHz to 3.3 GHz frequency range, it delivers a directional gain of 10 dBi. Crafted in Taiwan from high-grade Aluminum, this antenna features a WR-340 waveguide styling with a UDR flange and a high-integrity SMA-Female connector, ensuring exceptional performance for S-band microwave measurements and radar calibration.
Technical Specifications
Electrical Specifications
| Frequency Range | 2.2 GHz - 3.3 GHz |
| Gain | 10 dBi |
| V.S.W.R | 1.25 : 1 |
| -3dB Beam-width (Horizontal) | 54° |
| -3dB Beam-width (Vertical) | 54° |
| Maximum Power Handling | 360 W |
| Connector | SMA-Female |
Mechanical Specifications

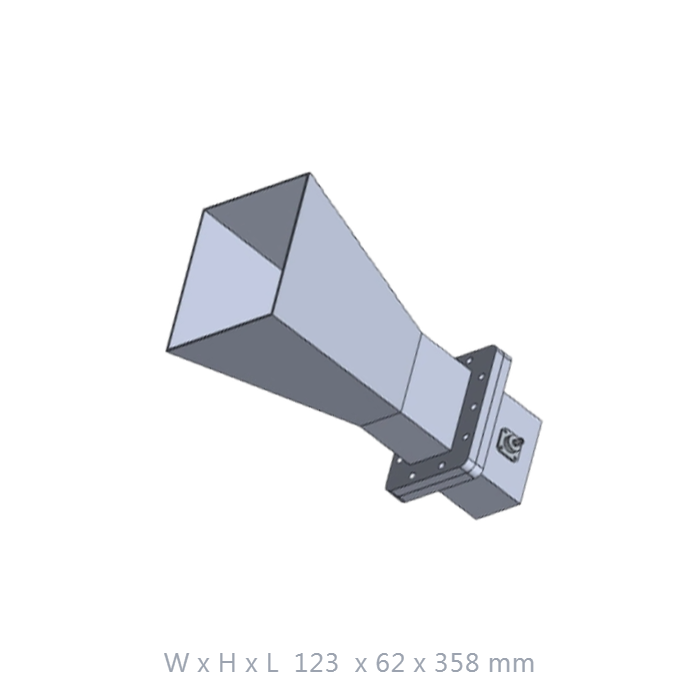

| Dimensions (L x W x H) | 358 x 123 x 62 mm |
| Weight | 1500 g |
| Waveguide Size | WR-340 |
| Waveguide Flange | UDR |
| Body Material | Aluminium |
| Origin | Taiwan Design, Made in Taiwan |
Key Features
S-Band Specialization
Specifically optimized for the 2.2 - 3.3 GHz spectrum, ensuring high accuracy for industrial and satellite testing.
Specifically optimized for the 2.2 - 3.3 GHz spectrum, ensuring high accuracy for industrial and satellite testing.
Stable Directional Gain
Delivers a uniform 10 dBi gain profile, essential for use as a reference antenna in antenna gain measurement setups.
Delivers a uniform 10 dBi gain profile, essential for use as a reference antenna in antenna gain measurement setups.
High RF Efficiency
Features an ultra-low V.S.W.R of 1.25, minimizing signal reflection and maximizing power transmission.
Features an ultra-low V.S.W.R of 1.25, minimizing signal reflection and maximizing power transmission.
Rugged Aluminum Build
Manufactured with a durable aluminium body to provide mechanical stability for professional laboratory and field environments.
Manufactured with a durable aluminium body to provide mechanical stability for professional laboratory and field environments.
High Power Tolerance
Reliably manages up to 360W of power, suitable for active radar and high-intensity transmitter testing.
Reliably manages up to 360W of power, suitable for active radar and high-intensity transmitter testing.
Taiwan Engineering
Precision designed and manufactured in Taiwan to meet the highest industrial RF testing standards.
Precision designed and manufactured in Taiwan to meet the highest industrial RF testing standards.
