22.0 GHz to 33.0 GHz WR-34 Ka-Band Standard Gain Horn Antenna
Model: HS-034-UBR-15-KF | 15 dBi Gain | Millimeter-Wave Precision
The HS-034-UBR-15-KF is a high-precision Ka-Band Standard Gain Horn Antenna professionally engineered for the WR-34 standard. Operating within the 22.0 GHz to 33.0 GHz spectrum, this antenna delivers a consistent 15 dBi gain and features a high-fidelity K-Female (2.92mm) coaxial interface. Equipped with a standardized UG-1530/U (UBR) flange, it ensures transition stability and exceptional Signal Integrity for millimeter-wave EMI/EMC testing, 5G research, and precision antenna gain measurement.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 22.0 GHz to 33.0 GHz (Ka-Band) |
| Waveguide Standard | WR-34 / R260 / WG21 |
| Nominal Gain | 15 dBi |
| V.S.W.R (Max) | 1.25 : 1 |
| -3dB Beamwidth (H/E Plane) | 32° / 32° (Symmetrical) |
| Maximum Power Handling | 200 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Construction

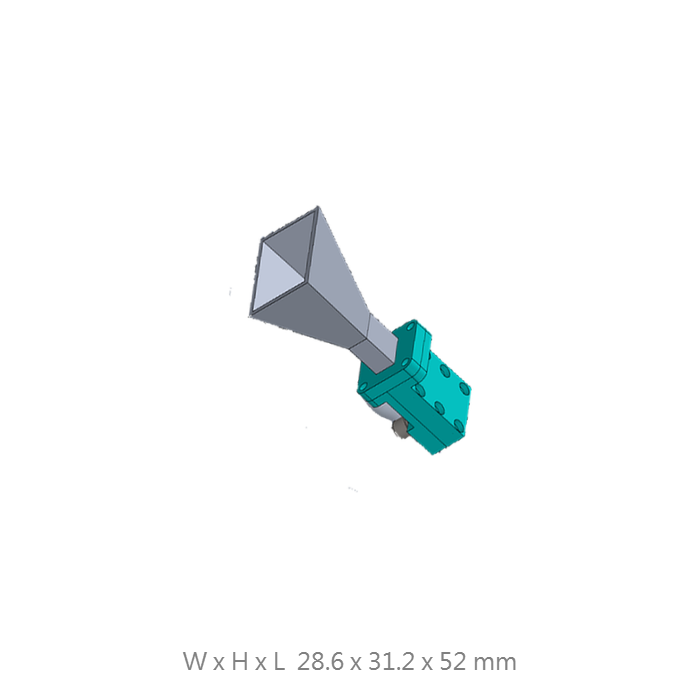

| Dimensions (W x H x L) | 28.6 x 31.2 x 52 mm |
| Net Weight | Contact us |
| Waveguide Flange | UG-1530/U Style (UBR) |
| Body Material | High-Grade Machined Aluminum |
| Coaxial Connector | K-Female (2.92mm Stainless Steel) |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Key Tactical Features
Ka-Band Millimeter-Wave Precision
Optimized for the 22-33 GHz range, providing the boresight accuracy and gain flatness required for advanced 5G testing and satellite communication analysis.
High-Precision K-Type Interface
Equipped with a precision 2.92mm (K) coaxial connector, ensuring repeatable electrical performance and mechanical durability in high-frequency lab environments.
200W Power Stability
Engineered to handle up to 200W CW power while maintaining ultra-low VSWR, providing a reliable radiator for high-intensity laboratory and field testing.
Standardized UG-1530/U Integration
Features a standardized waveguide flange for secure mechanical anchoring, ensuring stable power transfer in professional millimeter-wave infrastructures.
