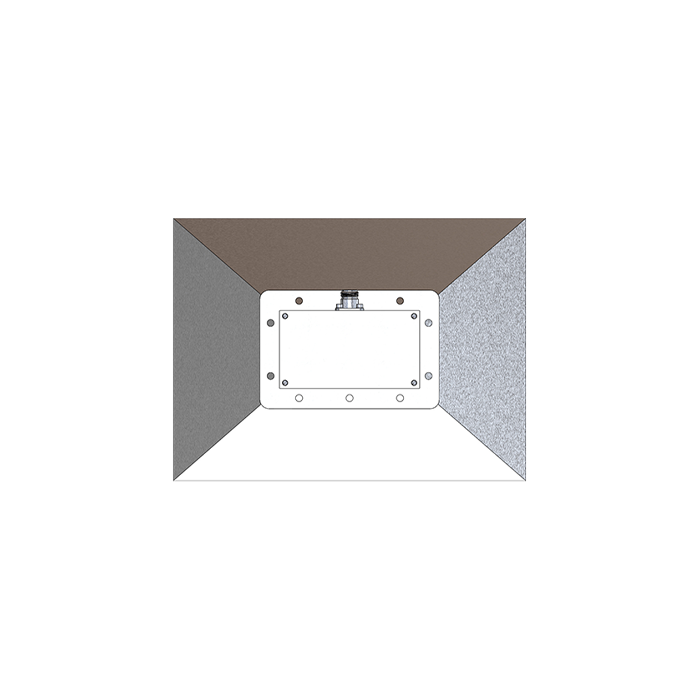

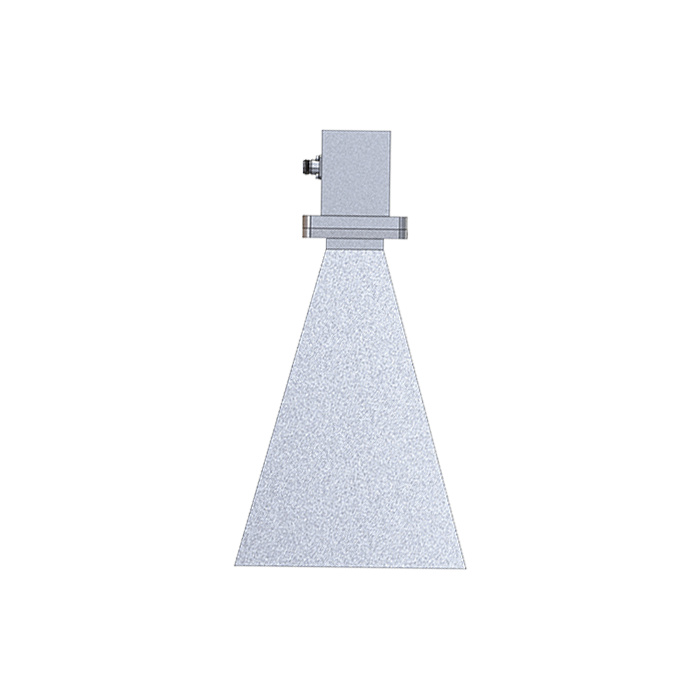

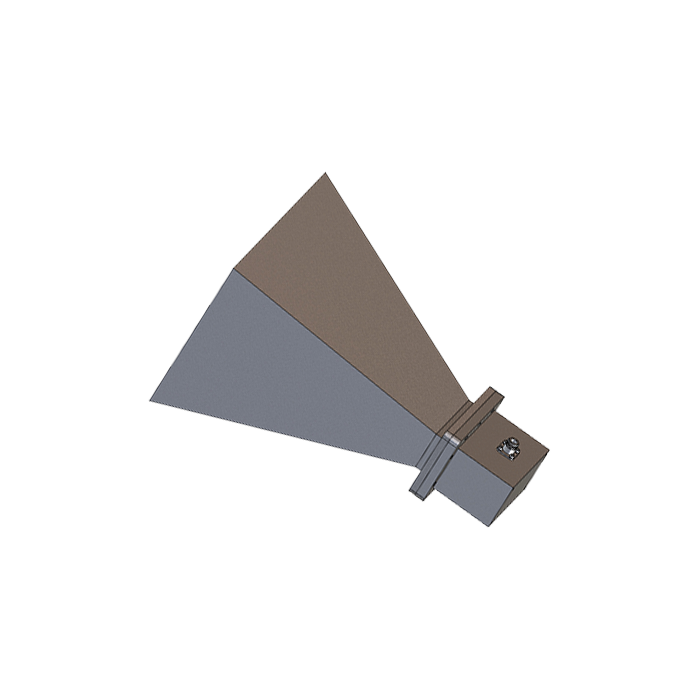

WI-430-UDR-15 Standard Gain Horn Antenna
1.7 GHz to 2.6 GHz | 15 dBi Gain | WR-430 Waveguide
The WI-430-UDR-15 (Model No. HS-430-UDR-15A-NF) is a high-precision Standard Gain Waveguide Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF). Operating within the 1.7 GHz to 2.6 GHz frequency range, it delivers a directional gain of 15 dBi. Crafted in Taiwan, this antenna features a WR-430 waveguide styling with a UG435/U flange and is equipped with a premium WC-430-UDR-NF coaxial adapter with an N-Female connector. It is built for exceptional structural integrity and reliable performance in high-power applications up to 1200W.
Technical Specifications
Electrical Specifications
| Frequency Range | 1.7 GHz - 2.6 GHz |
| Gain | 15 dBi |
| V.S.W.R | 1.25 : 1 |
| -3dB Beam-width (Horizontal) | 32° |
| -3dB Beam-width (Vertical) | 32° |
| Maximum Power Handling | 1200 W |
| Connector | N-Female |
Mechanical Specifications

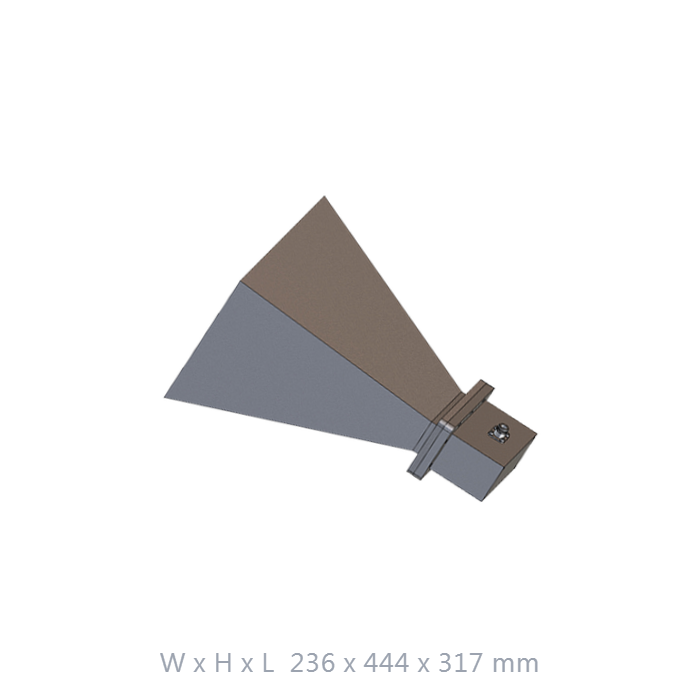

| Dimensions (L x W x H) | 317 x 236 x 444 mm |
| Weight | 3000 g (3 kg) |
| Waveguide Size | WR-430 |
| Waveguide Flange | UG435/U |
| Origin | Taiwan Design, Made in Taiwan |
Key Features
S-Band Optimization
Specifically tuned for the 1.7 - 2.6 GHz spectrum, ensuring high accuracy for industrial radar and satellite testing.
Specifically tuned for the 1.7 - 2.6 GHz spectrum, ensuring high accuracy for industrial radar and satellite testing.
Stable Directional Gain
Delivers a uniform 15 dBi gain profile, making it an ideal reference antenna for precision antenna gain measurements.
Delivers a uniform 15 dBi gain profile, making it an ideal reference antenna for precision antenna gain measurements.
High Power Tolerance
Reliably manages up to 1200W of power, suitable for active high-intensity signal transmission and testing.
Reliably manages up to 1200W of power, suitable for active high-intensity signal transmission and testing.
Robust Construction
Manufactured using high-quality materials to ensure long-term mechanical stability in laboratory and field environments.
Manufactured using high-quality materials to ensure long-term mechanical stability in laboratory and field environments.
Excellent Impedance Matching
Features a low V.S.W.R of 1.25, minimizing signal reflection and ensuring consistent measurement repeatability.
Features a low V.S.W.R of 1.25, minimizing signal reflection and ensuring consistent measurement repeatability.
Taiwan Engineering
Precision designed and manufactured in Taiwan to meet the most stringent industrial RF testing standards.
Precision designed and manufactured in Taiwan to meet the most stringent industrial RF testing standards.
