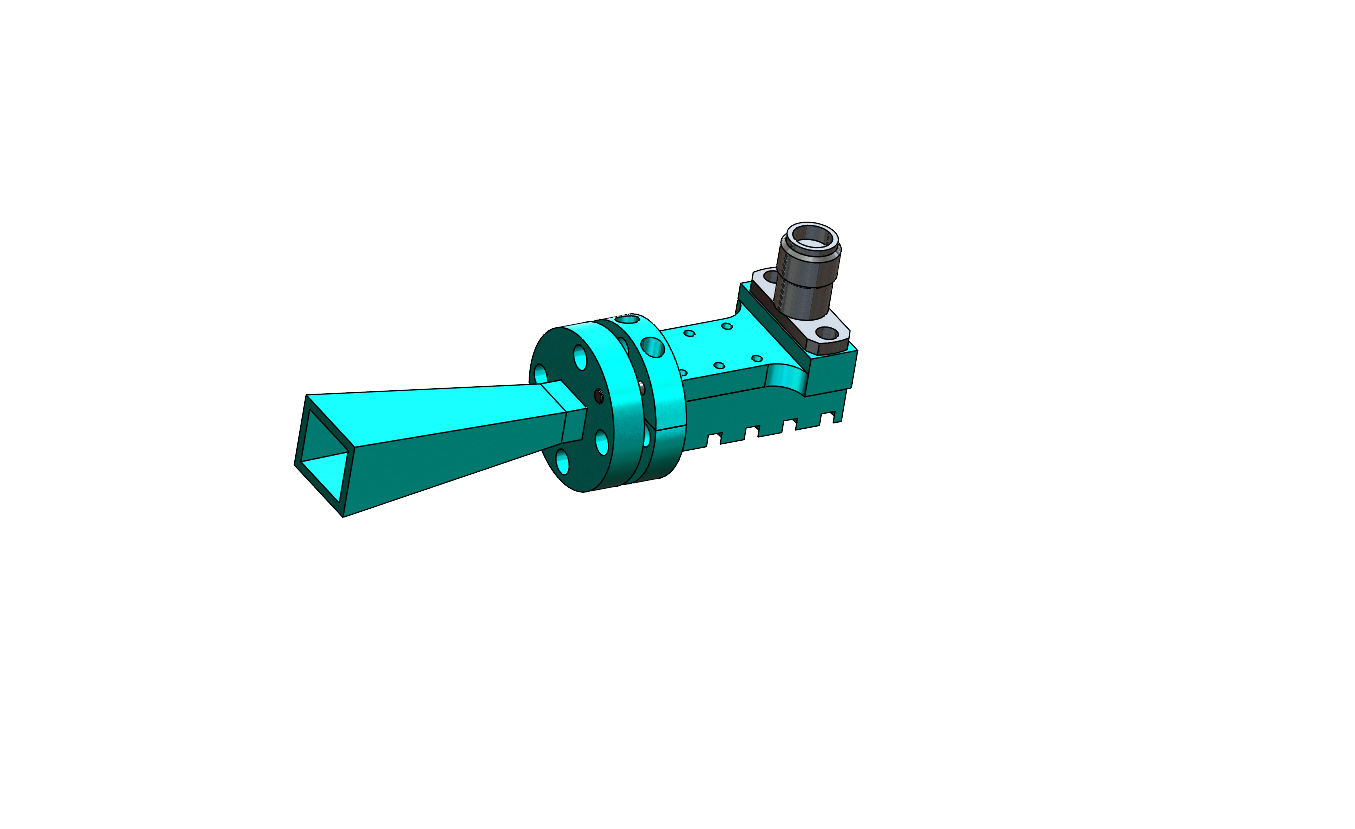

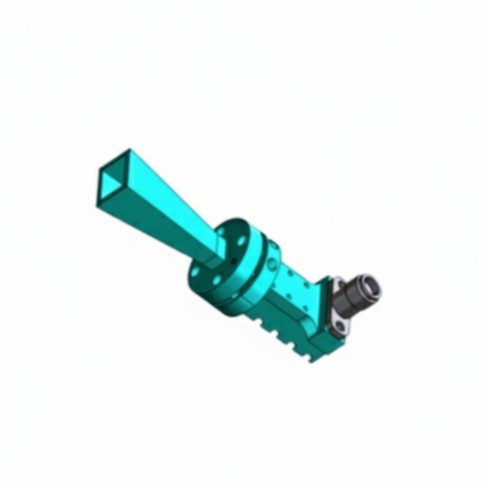

HS-015-UG-10A-VF V-Band Horn Antenna
50 - 75 GHz | 54° Symmetrical Beam | Millimeter-Wave Reference
The HS-015-UG-10A-VF is a professional V-band standard gain horn antenna engineered for the 50 GHz to 75 GHz spectrum. Featuring a precision 54° symmetrical beamwidth, this radiator is built for ultra-high frequency signal security operations, 6G research, and critical millimeter-wave calibration. Its high-grade aluminum construction and 1.85mm (V-Female) interface provide the structural integrity and signal stability required for advanced millimeter-wave sub-systems.
Electrical & RF Performance
| Frequency Range | 50 - 75 GHz |
| Waveguide Interface | WR-15 / UG-385/U |
| Peak Power Handling | 60 Watts (CW) |
| V.S.W.R (Max) | 1.35 : 1 |
| Beamwidth (H/V) | 54° / 54° |
Mechanical & Physical

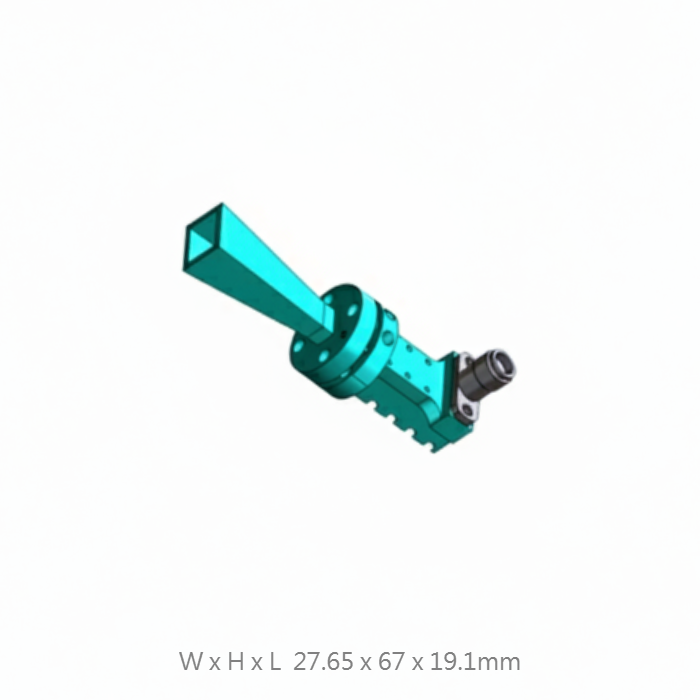

| Dimensions | 19.1 x 27.65 x 67 mm |
| Weight | 20 g |
| Connector Type | V-Female (1.85mm Stainless Steel) |
Ultra-High Frequency Precision
Specifically optimized for the 50-75 GHz spectrum, ensuring a stable radiation envelope for mission-critical millimeter-wave signal capture and analysis.
1.85mm Stainless Interface
Premium stainless steel V-Female connector provides exceptional mechanical cycle life and superior signal integrity in precision laboratory environments.
Featherweight Architecture
Weighing only 20g, this high-grade aluminum radiator offers extreme structural rigidity with minimal payload impact for integrated monitoring sub-systems.
Contact FT-RF Engineering Division
Contact our engineering team for customized mounting solutions or high-frequency calibration reports.
