WI-510-UDR-10 Standard Gain Horn Antenna
1.45 GHz to 2.20 GHz | 10 dBi Gain | WR-510 Waveguide
The WI-510-UDR-10 (Model No. HS-510-UDR-10A-NF) is a high-precision Standard Gain Waveguide Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF). Operating within the 1.45 GHz to 2.20 GHz frequency range, it delivers a stable directional gain of 10 dBi. Crafted in Taiwan, this antenna features a WR-510 waveguide styling with a UDR flange and is equipped with a premium WC-510-UDR-NF coaxial adapter featuring a high-integrity N-Female (SUS303) connector. It is designed for maximum structural integrity and reliable performance in professional L-band microwave measurements and radar calibration environments.
Technical Specifications
Electrical Specifications
| Frequency Range | 1.45 GHz - 2.20 GHz |
| Gain | 10 dBi |
| V.S.W.R | 1.3 : 1 |
| Polarization | Vertical or Horizontal |
| Impedance | 50 Ohm |
| Coaxial Adapter Model | WC-510-UDR-NF |
| Connector | N-Female (SUS303 Stainless Steel) |
Mechanical Specifications

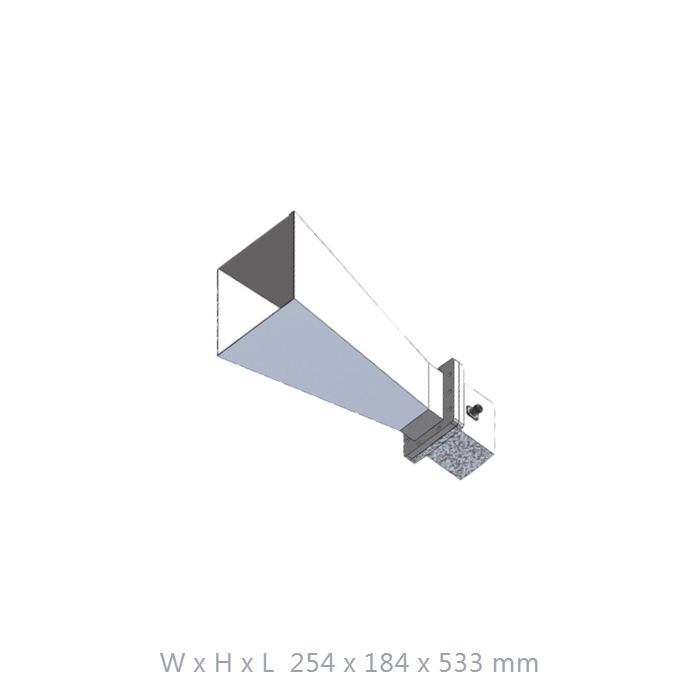

| Dimensions (W x H x L) | 254 x 184 x 533 mm |
| Weight | 3600 g (3.6 kg) |
| Waveguide Size | WR-510 |
| Waveguide Flange | UDR |
| Material | High-Grade Aluminum Alloy / SUS303 Connector |
| Origin | Taiwan Design, Made in Taiwan |
Key Features
L-Band Specialization
Specifically optimized for the 1.45 - 2.20 GHz spectrum, providing high accuracy for industrial and satellite testing.
Specifically optimized for the 1.45 - 2.20 GHz spectrum, providing high accuracy for industrial and satellite testing.
Stable Directional Gain
Delivers a uniform 10 dBi gain profile, essential for use as a reference antenna in antenna gain measurement setups.
Delivers a uniform 10 dBi gain profile, essential for use as a reference antenna in antenna gain measurement setups.
Rugged SUS303 Connector
Equipped with a high-grade stainless steel N-Female connector to ensure stable signal integrity and long-term durability.
Equipped with a high-grade stainless steel N-Female connector to ensure stable signal integrity and long-term durability.
Robust Aluminum Build
Manufactured with a durable aluminum body to ensure mechanical stability in professional laboratory and field environments.
Manufactured with a durable aluminum body to ensure mechanical stability in professional laboratory and field environments.
Excellent Impedance Matching
Features a low V.S.W.R of 1.3, minimizing signal reflection and ensuring consistent measurement repeatability.
Features a low V.S.W.R of 1.3, minimizing signal reflection and ensuring consistent measurement repeatability.
Taiwan Engineering Excellence
Precision designed and manufactured in Taiwan to meet the highest industrial RF量測 standards.
Precision designed and manufactured in Taiwan to meet the highest industrial RF量測 standards.
