Description & Specification

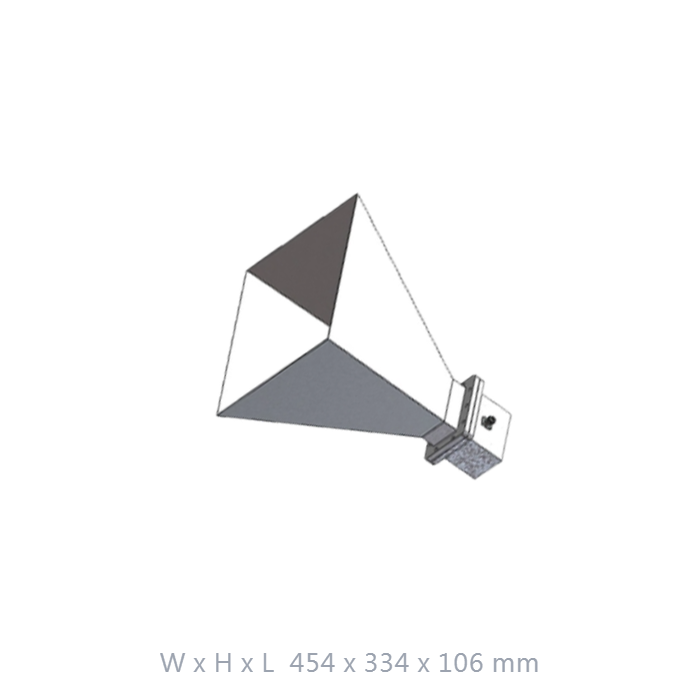

HS-51015A-NF Standard Gain Horn Antenna
1.45 GHz to 2.2 GHz | 15 dBi Gain | WR-510 Waveguide
The HS-51015A-NF is a high-precision Standard Gain Waveguide Horn Antenna professionally engineered by Fei Teng Wireless Technology Co., Ltd. (FT-RF). Operating within the 1.45 GHz to 2.2 GHz frequency range, it delivers a stable directional gain of 15 dBi. Designed for precision L-band microwave measurements and radar calibration, this antenna utilizes a WR-510 waveguide styling and features a premium Stainless Steel N-Female connector to ensure stable signal integrity and long-term durability in professional laboratory and field environments.
Technical Specifications
Electrical Specifications
| Frequency Range | 1.45 GHz - 2.2 GHz |
| Gain | 15 dBi |
| Polarization | Vertical or Horizontal |
| Impedance | 50 Ohm |
| Connector | Stainless Steel N-Female |
Mechanical Specifications
| Waveguide Size | WR-510 |
| Material | Aluminum Alloy / Stainless Steel Connector |
| Origin | Taiwan Design, Made in Taiwan |
Key Features
L-Band Optimization
Specifically tuned for the 1.45 - 2.2 GHz spectrum, providing high accuracy for industrial and satellite testing.
Specifically tuned for the 1.45 - 2.2 GHz spectrum, providing high accuracy for industrial and satellite testing.
Reliable 15 dBi Gain
Delivers a stable gain profile, making it an excellent reference antenna for precise L-band laboratory measurements.
Delivers a stable gain profile, making it an excellent reference antenna for precise L-band laboratory measurements.
Stable Directional Performance
Engineered for uniform gain and stable radiation patterns across the entire operating bandwidth.
Engineered for uniform gain and stable radiation patterns across the entire operating bandwidth.
Stainless Steel Connector
Equipped with a high-grade stainless steel N-Female connector for improved wear resistance and RF integrity.
Equipped with a high-grade stainless steel N-Female connector for improved wear resistance and RF integrity.
Rugged Construction
Manufactured using high-quality aluminum alloy to ensure mechanical stability and professional durability.
Manufactured using high-quality aluminum alloy to ensure mechanical stability and professional durability.
Taiwan Engineering Excellence
Precision designed and manufactured in Taiwan to meet the highest industrial RF testing standards.
Precision designed and manufactured in Taiwan to meet the highest industrial RF testing standards.
Contact Us
For pricing, data sheets, or technical support regarding the HS-51015A-NF, please contact us:
