UDR Series Waveguide Flanges
High-Precision RF Interconnect Components | WR187 - WR430
FT-RF provides a comprehensive range of high-precision UDR Series Waveguide Flanges professionally engineered for seamless integration into C-band and S-band waveguide sub-systems. Manufactured from aerospace-grade 6061-T6 or 6063-O Aluminum alloy, these components ensure maximum Signal Integrity and high-performance mechanical mating. These flanges are critical for protecting Signal Security in tactical laboratory test setups and professional telecommunication infrastructure.
Comparative Technical Specifications

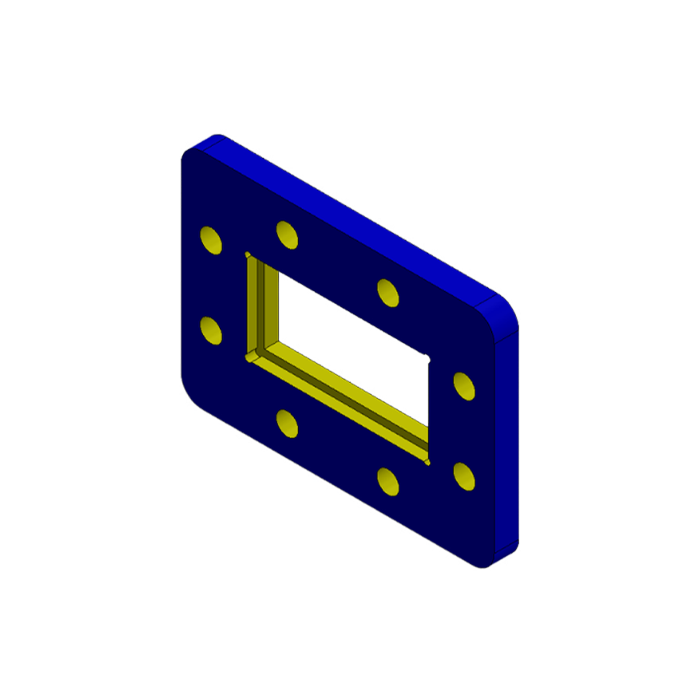

| Model No. | Dimensions (LxWxH) | Weight (g) | Material (SS Style) |
|---|---|---|---|
| WF-UDR-187-WI-2.0 | 88 x 63.5 x 7 | 78.93 | 6061-T6 |

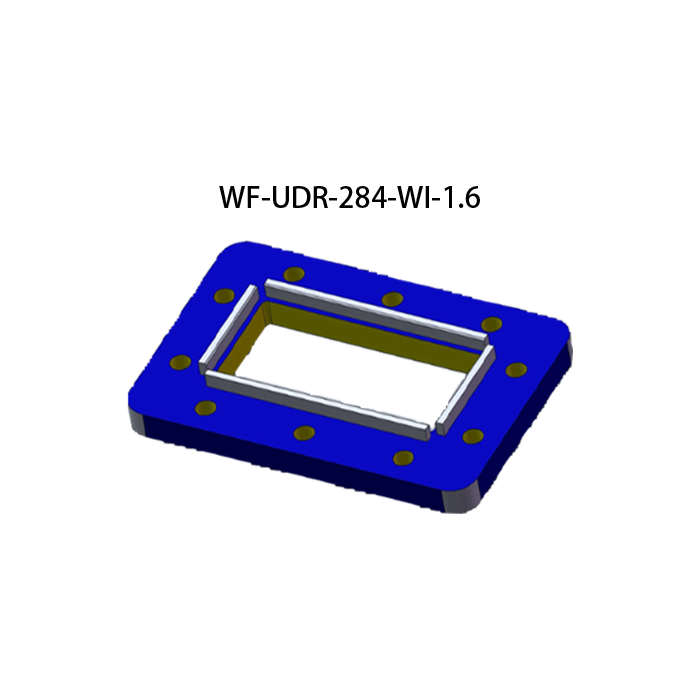

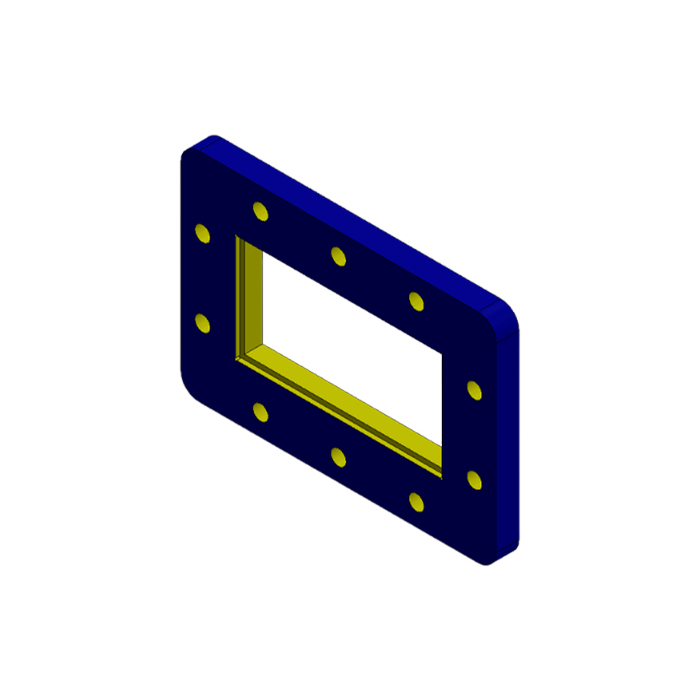

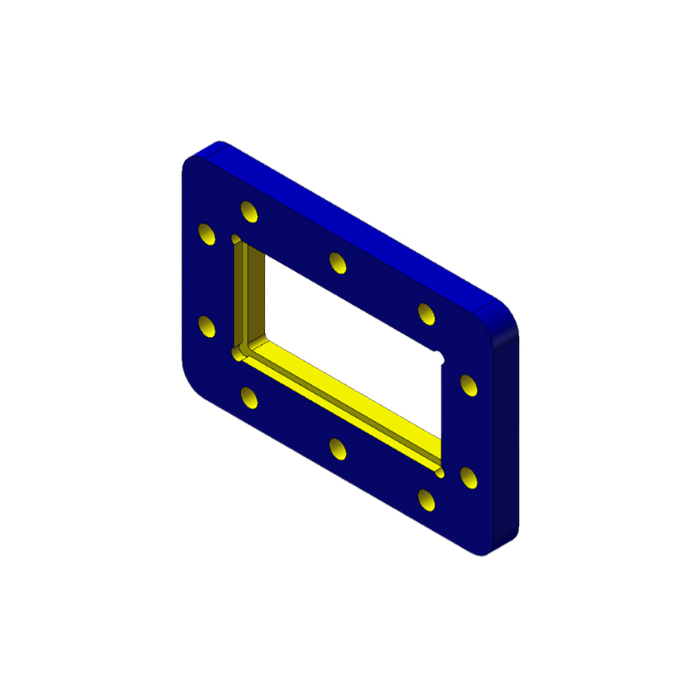

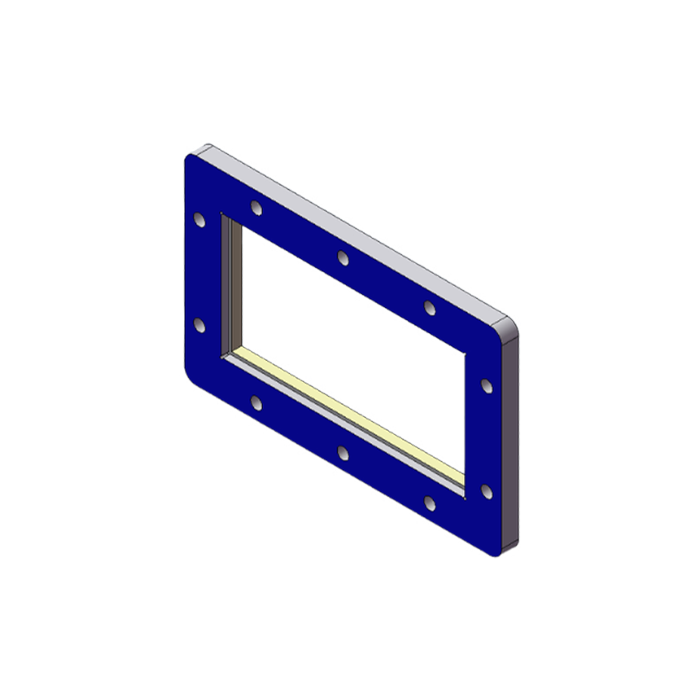

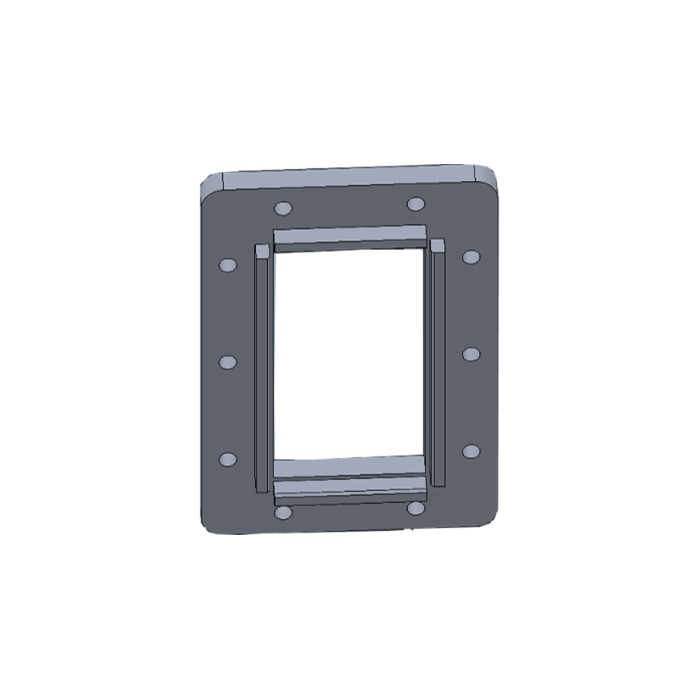

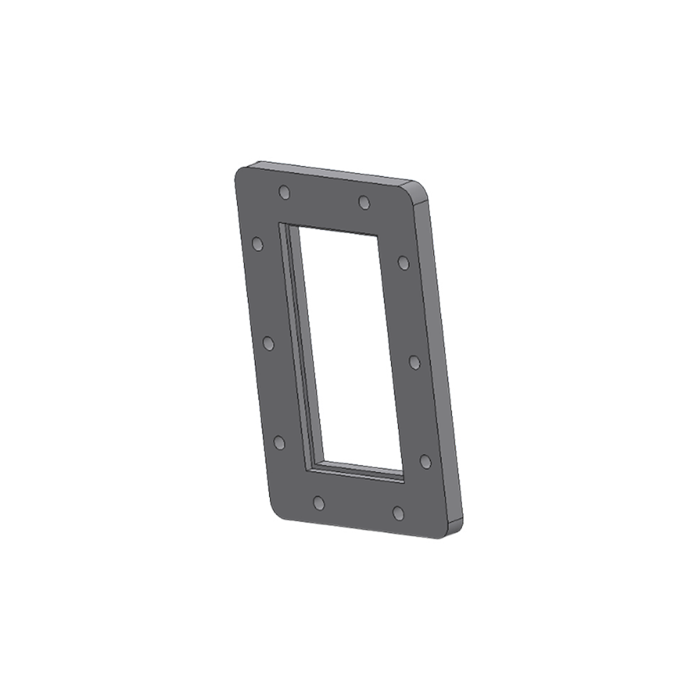

| WF-UDR-284-WI-1.6 | 114.3 x 76.2 x 14.4 | 156.49 | 6063-O |
| WF-UDR-284-WI-2.0 | 114.3 x 76.2 x 9.4 | 145.52 | 6063-O |
| WF-UDR-340-WI-2.0 | 138.2 x 95.3 x 10 | 240.86 | 6061-T6 |
| WF-UDR-430-WI-1.6/2.0 | Technical Data Updating... | ||
Professional Tactical Features
Aerospace Alloy Construction
Manufactured using 6061-T6 or 6063-O aluminum to provide the ideal balance of high structural strength and lightweight performance for professional RF environments.
Precision Signal Integrity
Engineered for high-integrity electromagnetic coupling, minimizing insertion loss and protecting high-value instrumentation from reflected signal degradation.
Standardized UDR Interface
Fully compliant with international UDR flange standards (WR187 to WR430), ensuring secure and standardized mechanical mating across mission-critical sub-systems.
Quality Taiwan Engineering
Precision-finished internal surfaces and exact bolt-hole alignment ensure stable electrical performance and high structural reliability under continuous duty cycles.
Inquire About Specialized Flange Solutions
Contact our engineering team for specialized thickness ratings, custom bolt patterns, alternative alloy selection, or technical data regarding WF-UDR-430 models.
