Description & Specification

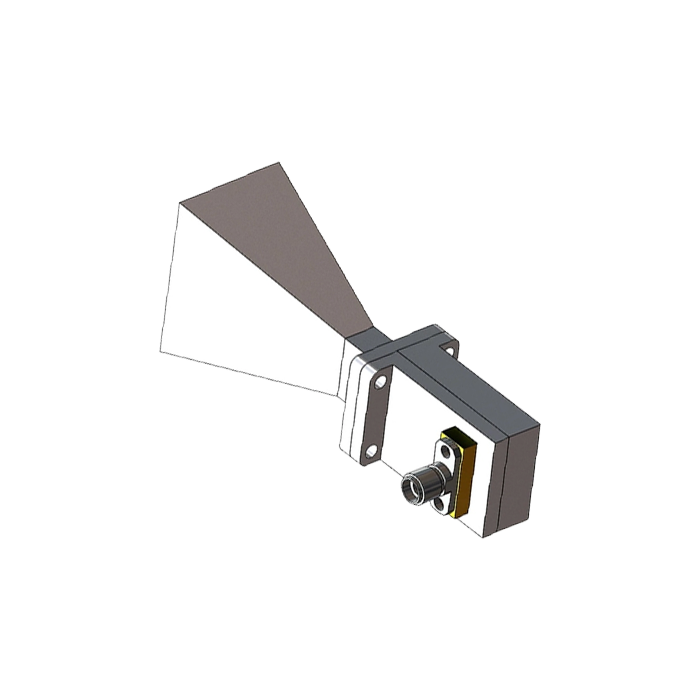

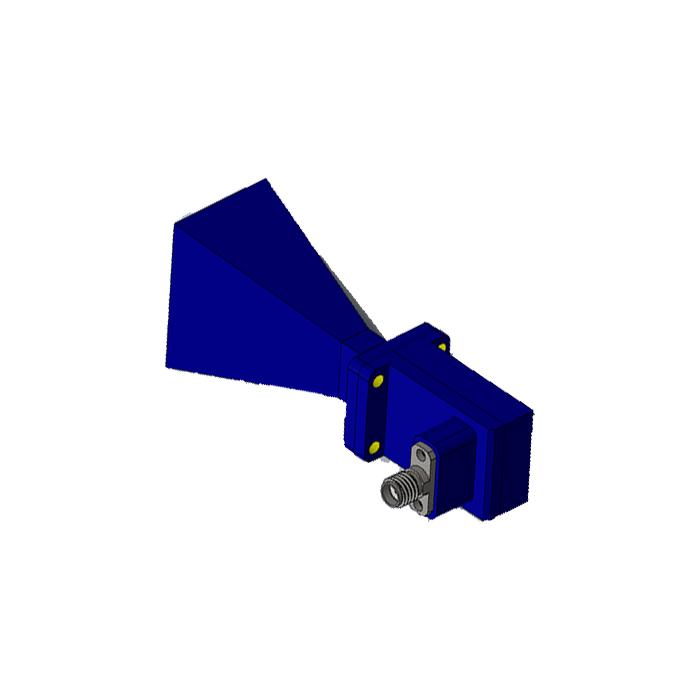

K-Band Standard Gain Horn
WR-42 Waveguide | 18 GHz - 26.5 GHz | Model: HS-042-UBR-15A-KF
The HS-042-UBR-15A-KF is a high-precision WR-42 Standard Gain Waveguide Horn Antenna professionally engineered and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for microwave RF measurement applications. Operating within the high-frequency K-Band spectrum across the continuous 18 GHz to 26.5 GHz band, this premium antenna features a standardized WR-42 waveguide interface with a UBR flange. Delivering a stable nominal gain of 15 dBi with uniform radiation characteristics, it ensures flawless structural impedance coplanarity and ultra-low-loss power transfer, safely managing wave power loads up to 200 Watts. Precision machined from high-grade structural aluminum alloy in Taiwan, it exhibits exceptional electromechanical longevity, a lightweight 45g profile, and a maximum V.S.W.R threshold of less than 1.25 : 1. It stands as the definitive choice for Signal Integrity verification, antenna gain calibration, and professional laboratory setups where high-frequency accuracy and structural reliability are paramount.
Electrical & RF Performance
| Frequency Range Class | 18 GHz - 26.5 GHz (K-Band Optimization) |
| Antenna Type Style | Standard Gain Horn |
| Nominal Gain (Typical) | 15 dBi |
| V.S.W.R Profile (Typical) | < 1.25 : 1 (Precision Minimal Reflection Performance) |
| Maximum Input Power | 200 Watts |
| -3dB Beamwidth (H-Plane / E-Plane) | 30° / 30° |
Mechanical & Interface Data
| Physical Dimensions (L x W x H) | 86 x 35.1 x 31.19 mm |
| Antenna Net Weight | 45 g (Precision Aluminum Alloy Structural Build) |
| Waveguide Interface / Flange | EIA WR-42 / UBR Configuration Layout |
| Connector Interface Port | Precision Stainless Steel 2.92mm-Female (K) |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Professional Grade) |
K-Band Precision Beam
Engineered for the 18-26.5 GHz spectrum, providing highly stable electrical performance and minimal losses for critical Signal Integrity measurements in microwave systems.
Superior Gain Consistency
Delivers a uniform gain profile for high-accuracy antenna calibration, making it an ideal reference device for measuring the gain of secondary RF systems.
Stainless Steel K Interface
Equipped with a high-durability 2.92mm-Female (K) connector to ensure reliable mating cycles and low-loss transition for standardized test equipment.
Custom Engineering Flexibility
Available for specialized modifications including waterproof structures, PTZ control integration, and customized color finishes to meet specific project requirements.
Inquire About K-Band Solutions
Contact our engineering team for specialized gain calibration data, custom mounting options, or technical support regarding high-frequency measurement setups.
