Description & Specification

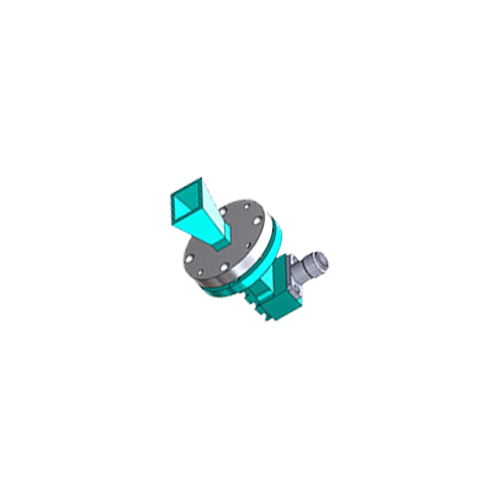

WR-19 Wide Beam Standard Gain Horn Antenna
Model: HS-019-UG-10A-VF | 40 GHz - 60 GHz | 10 dBi | U-Band
The HS-019-UG-10A-VF is a high-precision WR-19 Waveguide Horn Antenna designed for U-Band millimeter-wave applications within the 40 GHz to 60 GHz spectrum. Optimized for professional Signal Security operations and high-frequency laboratory measurements, it provides a 10 dBi gain with a wide 54° beamwidth for broader area coverage. Featuring a premium aluminum construction and high-durability K-Female connector, this antenna ensures unwavering Signal Integrity and stability for advanced Signal Defense deployments.
Technical Specifications
Electrical & RF Performance
| Frequency Range | 40 - 60 GHz (U-Band) |
| Standard Gain | 10 dBi |
| Maximum Power Handling | 60 Watts (CW) |
| V.S.W.R (Max) | 1.4 : 1 |
| 3dB Beamwidth (H/E Plane) | 54° / 54° (Wide Beamwidth) |
Mechanical & Construction
| Waveguide Size | WR-19 (R500) |

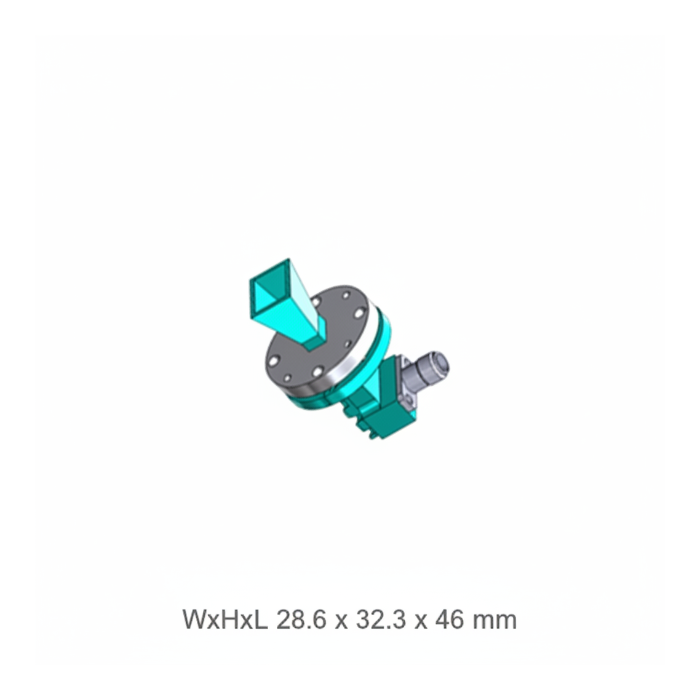

| Dimensions (WxHxL) | 28.6 x 32.3 x 46 mm |
| Net Weight | 25 g |
| Waveguide Flange | UG Compatible |
| Body / Connector Material | Premium Aluminum / K-Female |
| Origin | Made in Taiwan (FT-RF) |
Get a Quote / Custom RF Solutions
