Description & Specification

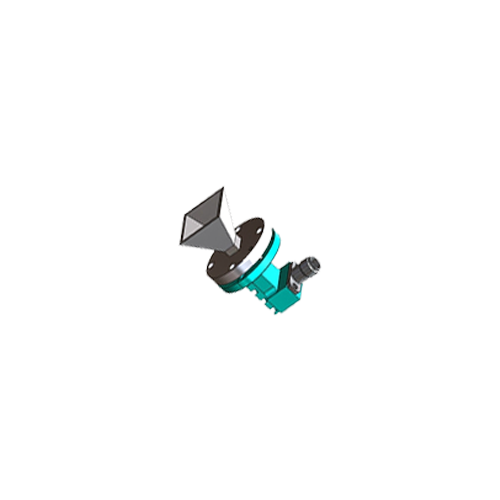

WR-19 Standard Gain Horn Antenna
U-Band | 40 - 60 GHz | 15 dBi Precision Measurement
The HS-019-UG-15A-VF is a precision-engineered WR-19 Waveguide Horn Antenna designed for U-Band millimeter-wave applications within the 40 GHz to 60 GHz spectrum. Optimized for professional Signal Security operations and high-frequency laboratory measurements, it provides a consistent 15 dBi gain with a symmetrical 32° beamwidth. Featuring premium aluminum construction and a high-durability K-Female connector, this antenna ensures unwavering signal integrity and stability for advanced Signal Defense deployments.
Electrical & RF Performance
| Frequency Range | 40 - 60 GHz (U-Band) |
| Standard Gain | 15 dBi |
| Max Power Handling | 60 Watts (CW) |
| V.S.W.R (Max) | 1.4 : 1 |
| 3dB Beamwidth | 32° / 32° (H/E Plane) |
Mechanical & Construction
| Waveguide Size | WR-19 (R500) |
| Dimensions | 28.6 x 32.3 x 46 mm |
| Weight | 32 g |
| Connector Type | K-Female (2.92mm) |
| Origin | Made in Taiwan (FT-RF) |
U-Band Millimeter-Wave Precision
Specifically engineered for the 40-60 GHz range, providing reliable performance for high-frequency signal security and laboratory test benches.
Stainless Steel K-Connector
Utilizes a high-durability K-Female (2.92mm) connector to maintain optimal signal integrity in demanding millimeter-wave applications.
Aerospace Aluminum Body
Crafted from premium aluminum to ensure structural rigidity and stable performance, weighing only 32g for easy integration.
Contact FT-RF Engineering Division
Contact our engineering team for custom flange alignments or specialized waveguide configurations.
