WC-229-PAR-NF Waveguide to Coaxial Adapter
Precision C-Band Transition | Standard WR-229 Profile | 3.3 GHz to 4.9 GHz
The WC-229-PAR-NF is a high-precision Waveguide to Coaxial Adapter professionally engineered for the WR-229 standard. Operating within the 3.3 GHz to 4.9 GHz spectrum (C-Band), this component is ideal for pairing with standard gain horn antennas in professional EMI/EMC testing, satellite communication calibration, and radar system measurements. Featuring a high-durability Stainless Steel N-Female connector and a specialized PAR (CPR-F) flange configuration, it ensures low-loss coupling and exceptional Signal Integrity with an optimized maximum VSWR of 1.25 : 1. Fully machined from aerospace-grade aluminum in Taiwan, it reliably handles continuous wave power inputs up to 300 Watts (CW) while remaining easy to deploy on laboratory positioners or tactical masts.
Electrical & RF Performance
| Frequency Range | 3.3 GHz to 4.9 GHz (C-Band) |
| V.S.W.R (Max) | 1.25 : 1 |
| Maximum Power Handling | 300 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Construction
| Waveguide Size / Standard | WR-229 / R40 / WG11A |
| Waveguide Flange Interface | CPR 229F / G (PAR Style) |
| Coaxial Connector Port | N-Female (Stainless Steel / SUS) |

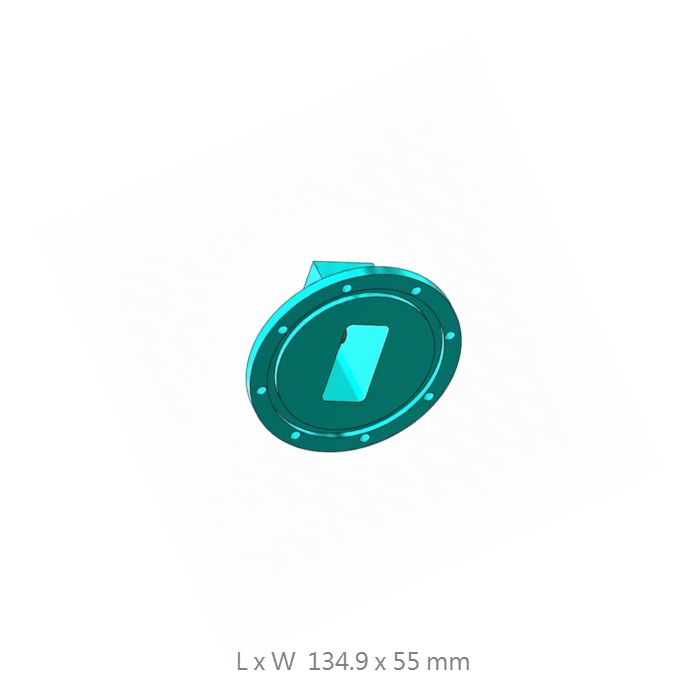

| Dimensions (L x W) | 134.9 x 55 mm |
| Net Weight | 285 g |
| Body Material | High-Grade Machined Aluminum |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
C-Band Spectrum Integrity
Optimized internal transition geometry ensures minimal signal leakage and reflection when paired with professional C-Band waveguide hardware or standard gain horn antennas.
Rugged Stainless Steel Interface
Equipped with a high-durability SUS N-Female connector to provide superior electrical contact stability and structural longevity for repeatable laboratory and field measurements.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict quality controls, providing dependable structural flatness and enduring phase consistency.
Standardized PAR/CPR Flange
Features a specialized CPR waveguide flange for secure mechanical coupling, ensuring repeatable results in demanding satellite communication evaluation sub-systems.
Request a Professional Quote
Contact our engineering team to obtain individual V.S.W.R plots, radiation patterns, or customized waveguide flange requirements.
