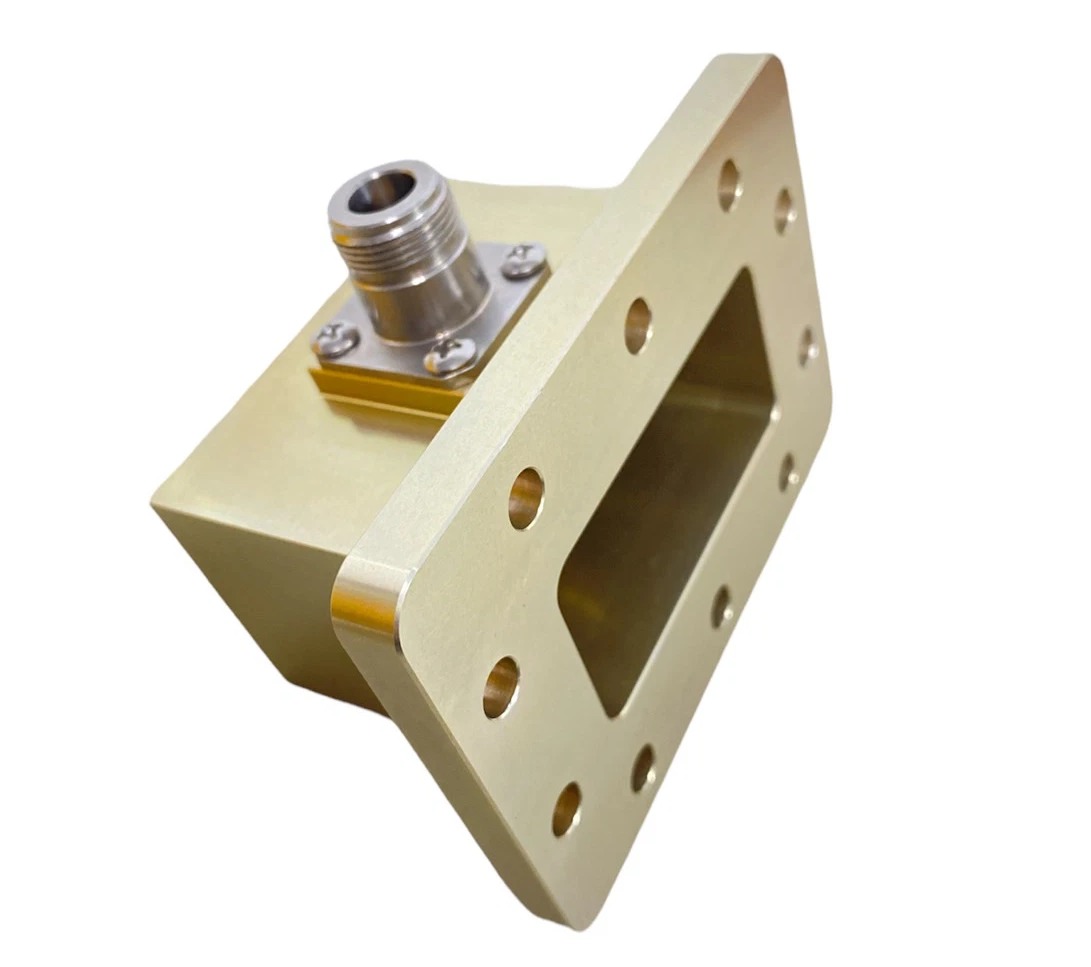

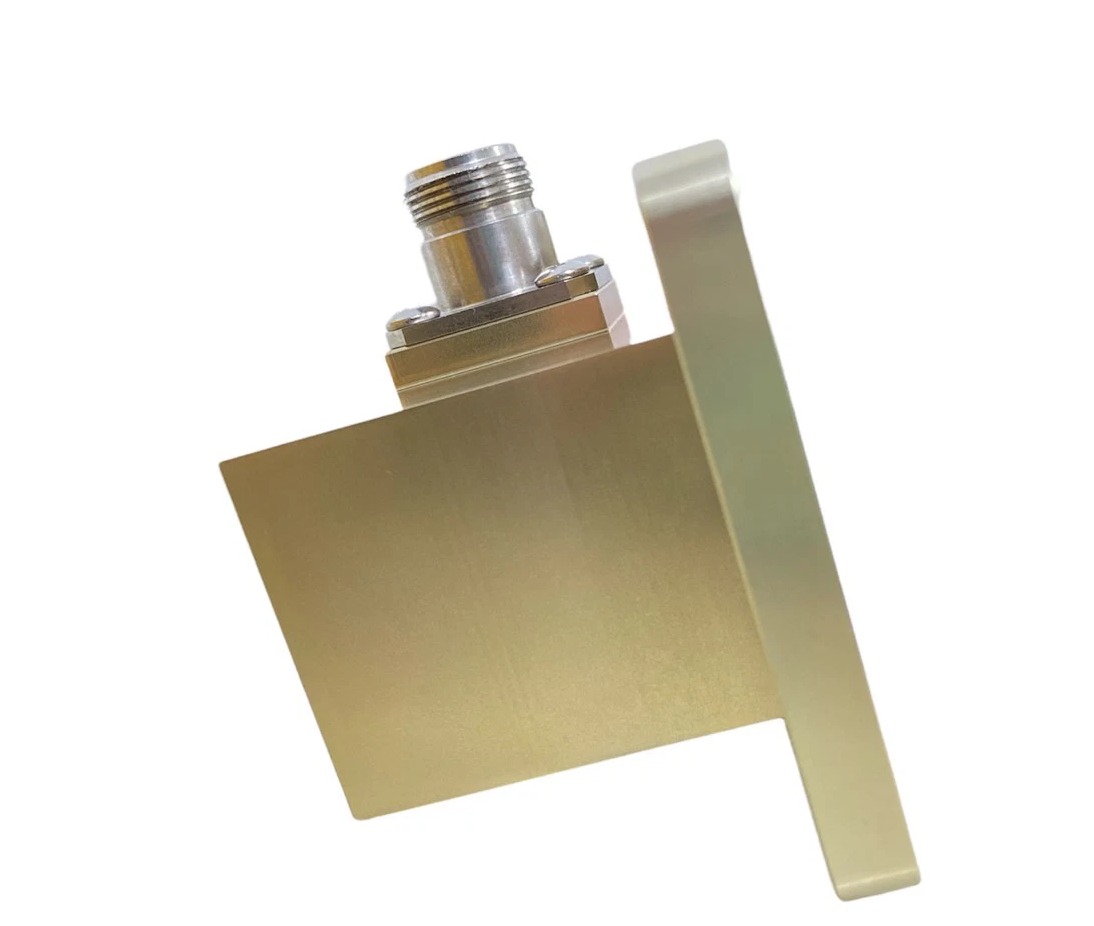

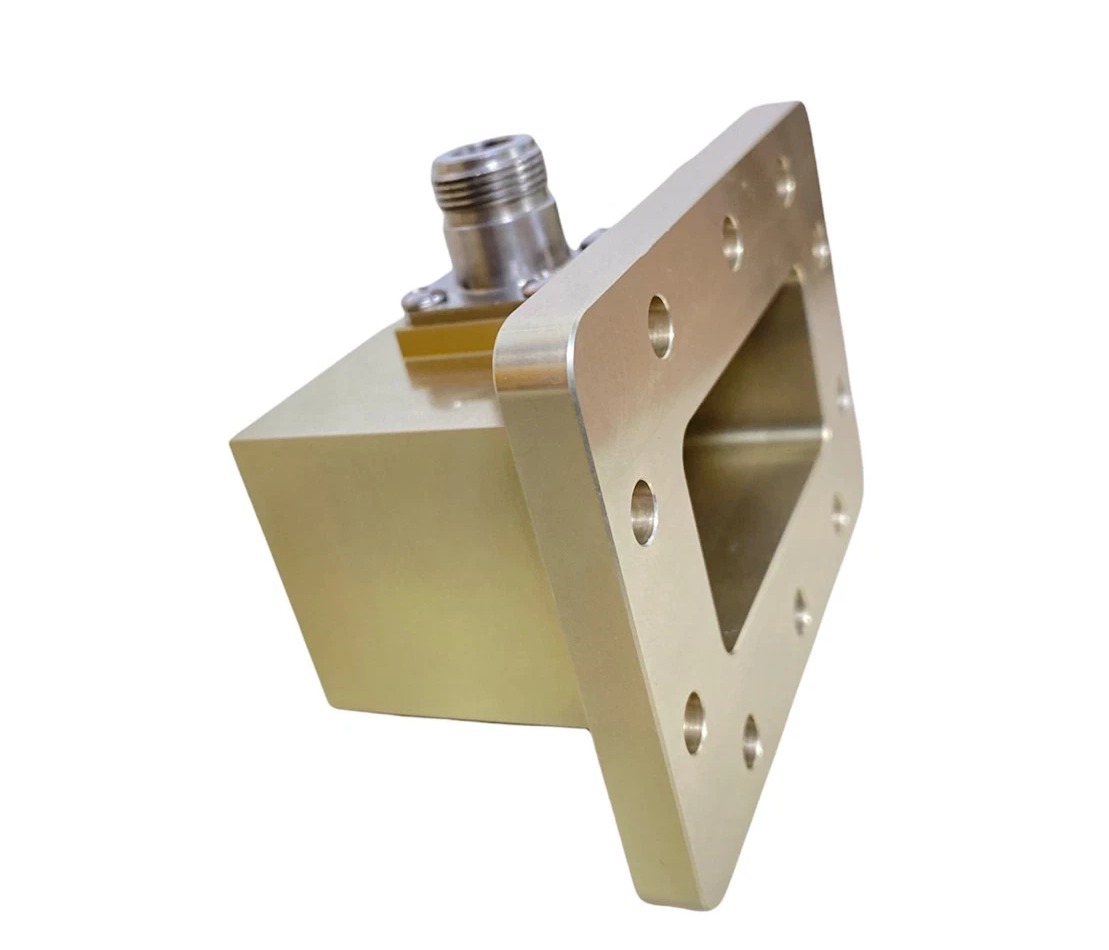

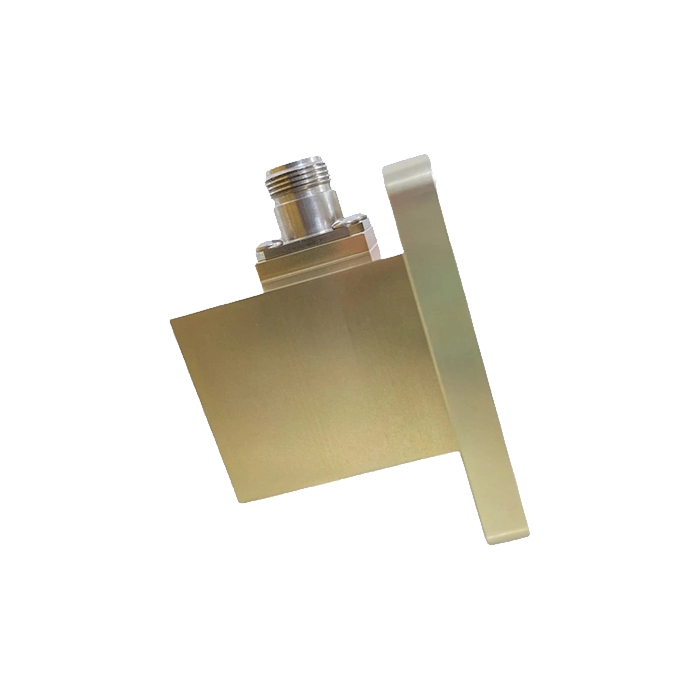

WC-229-UDR-NF Waveguide to Coaxial Adapter
Precision C-Band Transition | Standard WR-229 Profile | 3.3 GHz – 4.9 GHz
The WC-229-UDR-NF is a high-precision Waveguide to Coaxial Adapter professionally engineered for the C-band frequency spectrum. Operating from 3.3 GHz to 4.9 GHz, this precision WR-229 component enables high-efficiency power transition with a capacity of up to 300 Watts (CW). Featuring a robust CPR 229F/G (UDR) flange and a premium Stainless Steel (SUS) N-Female connector, it is designed to maintain exceptional Signal Integrity with a low maximum V.S.W.R profile of 1.25 : 1. This industrial-grade adapter is ideal for use with WR229 standard gain horn antennas in satellite communications, radar system integration, and advanced RF laboratory environments. Expertly designed and manufactured in Taiwan, it delivers consistent electromechanical alignment over long-term operations.
RF & Power Performance
| Frequency Range | 3.3 GHz - 4.9 GHz (C-Band) |
| V.S.W.R (Max) | ≤ 1.25 : 1 |
| Maximum Power Handling | 300 Watts (CW) |
| Impedance | 50 Ohms |
Env. & Mechanical Specifications
| Waveguide Size Standard | WR-229 Standard (WG11A / R40) |
| Waveguide Flange Interface | CPR 229F / G (UDR Type) |
| Coaxial Connector Interface | N-Female (Stainless Steel SUS) |

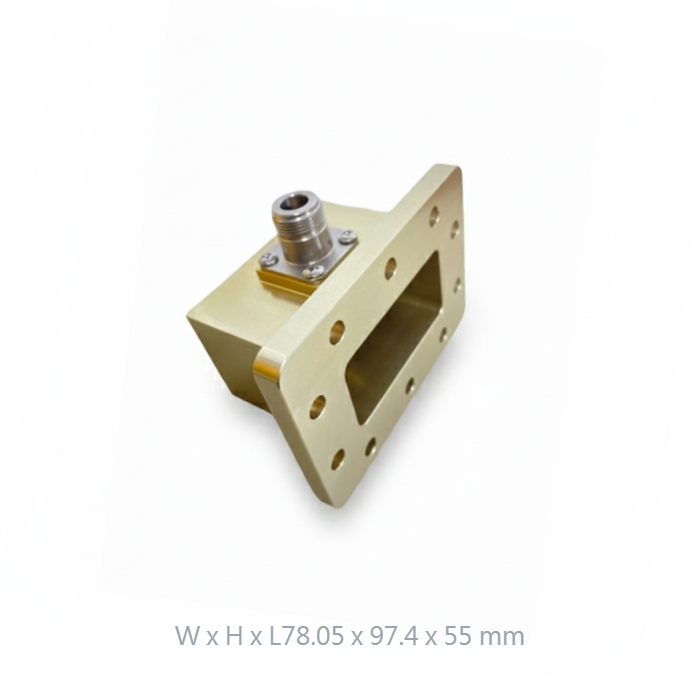

| Dimensions (W x H x L) | 78.05 x 97.4 x 55 mm |
| Net Weight | 285 g |
| Body Material | High-Conductivity Aluminium Alloy |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF) |
C-Band Signal Integrity
Specifically optimized for the 3.3-4.9 GHz range to provide stable power transition and low reflection loss, ensuring maximum Signal Integrity for sensitive satellite downlink and radar measurements.

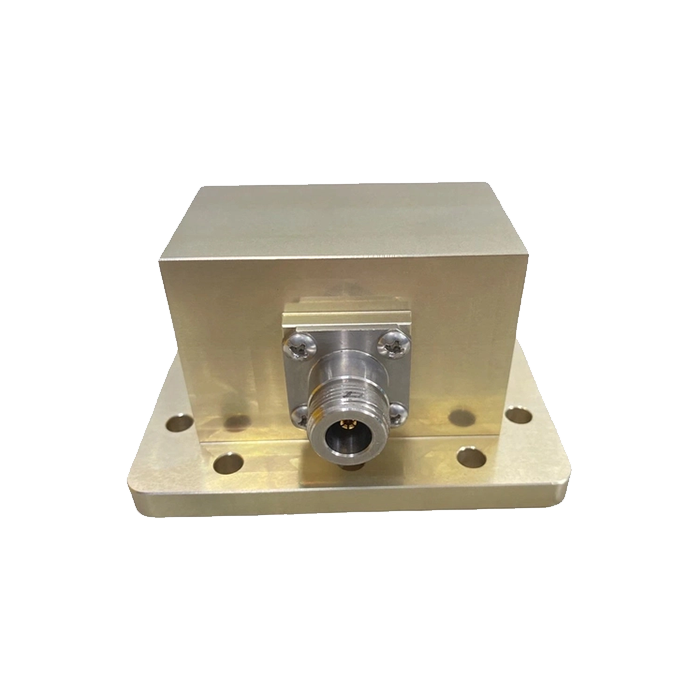

Stainless Steel (SUS) Interface
Equipped with a high-durability SUS Stainless Steel N-Female connector, offering superior corrosion resistance and repeatable mating performance compared to standard brass connectors.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict quality controls, providing dependable structural flatness and enduring phase consistency.

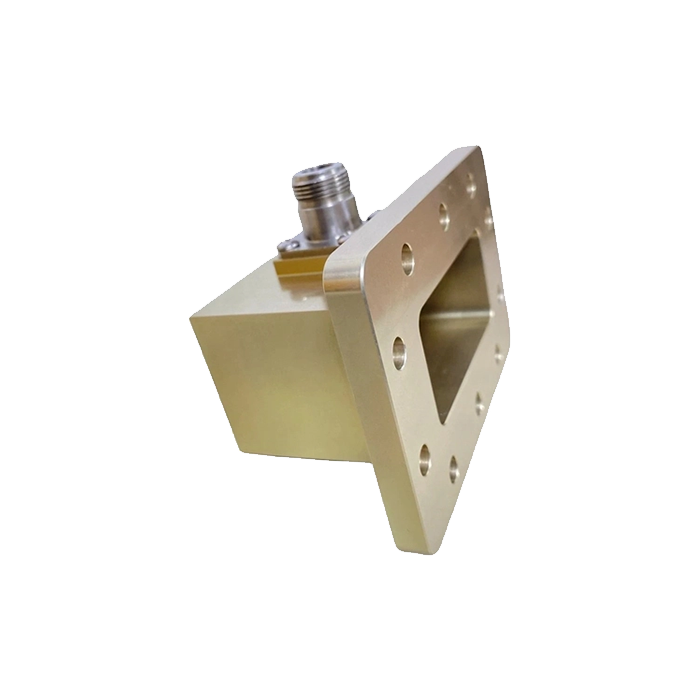

Standard CPR 229F Integration
Precisely machined to meet international standard WR-229 dimensions and flange patterns, allowing for seamless integration with standard gain horn antennas and waveguide networks.
Inquire About C-Band Solutions
Contact our engineering team for specialized V.S.W.R data, custom flange drilling, or technical support regarding broadband WR-229 system integration.
