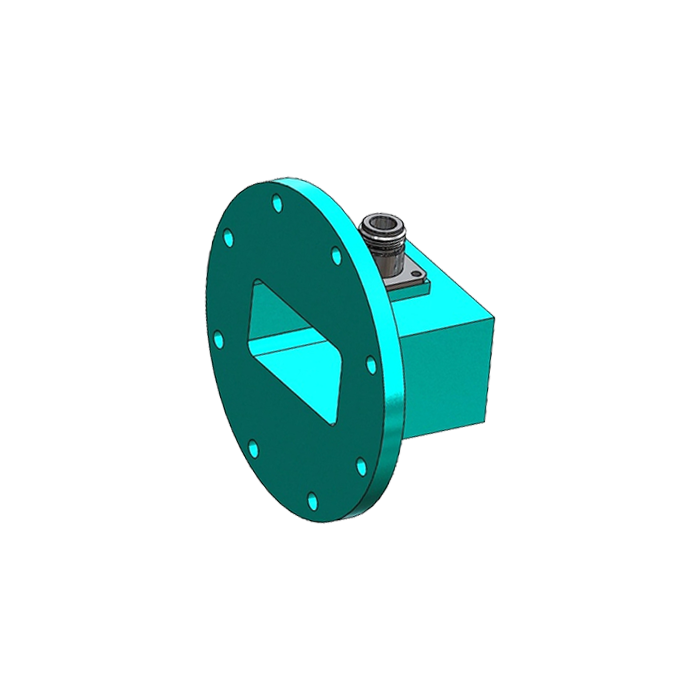

WC-229-UAR-NF Waveguide to Coaxial Adapter
Precision C-Band Transition | Standard WR-229 Profile | 3.3 GHz to 4.9 GHz
The WC-229-UAR-NF is a high-precision Waveguide to Coaxial Adapter professionally engineered for the WR-229 waveguide standard. Operating within the 3.3 GHz to 4.9 GHz spectrum (S/C-Band), this premium component ensures an ultra-low-loss transition for superior Signal Integrity. Featuring a robust Stainless Steel N-Female interface and a standardized UAR (CPR-F/G style) flange configuration, it reliably handles high-power inputs up to 300 Watts (CW) with an optimized maximum VSWR of 1.25 : 1. Fully machined from high-grade aluminum in Taiwan, it serves as an ideal choice for pairing with standard gain horn antennas in professional EMI/EMC testing, satellite communication calibration, and mission-critical radar sub-systems.
Electrical & RF Performance
| Frequency Range | 3.3 GHz to 4.9 GHz |
| V.S.W.R (Max) | 1.25 : 1 |
| Maximum Power Handling | 300 Watts (CW) |
| Impedance | 50 Ohm |
Mechanical & Construction
| Waveguide Standard Size | WR-229 / R40 / WG11A |
| Waveguide Flange Interface | CPR 229F/G (UAR Style) |
| Coaxial Connector Port | N-Female (Stainless Steel) |

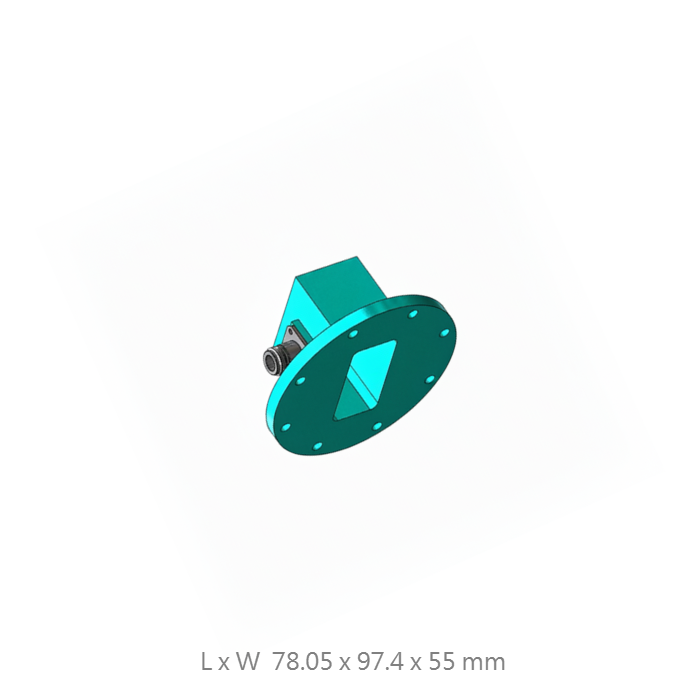

| Dimensions (L x W x H) | 78.05 x 97.4 x 55 mm |
| Net Weight | 285 g |
| Body Material | High-Grade Machined Aluminum |
| Manufacturing Origin | Taiwan Design / Made in Taiwan (FT-RF) |
Premium Build Quality
Fully machined aluminum body with precision surface finishing for superior conductivity and structural integrity in professional lab environments.
Standard Compliance
Engineered to meet international EIA waveguide standards, ensuring seamless compatibility and low-loss transition with WR-229 standard gain horns.
Taiwanese Engineering Excellence
Precision designed and manufactured in Taiwan under strict quality controls, providing dependable structural flatness and enduring phase consistency.
Rugged Stainless Interface
Equipped with a high-durability stainless steel N-Female connector to ensure repeatable mechanical coupling and superior electrical stability in demanding RF sub-systems.
Request a Professional Quote
Contact our engineering team to obtain individual V.S.W.R plots, customized flange configurations, or specific material requirements.
