Description & Specification

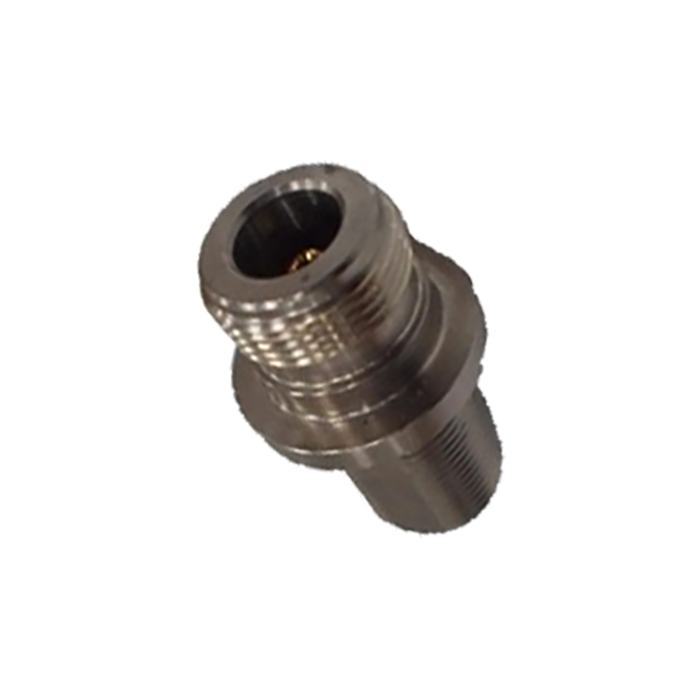

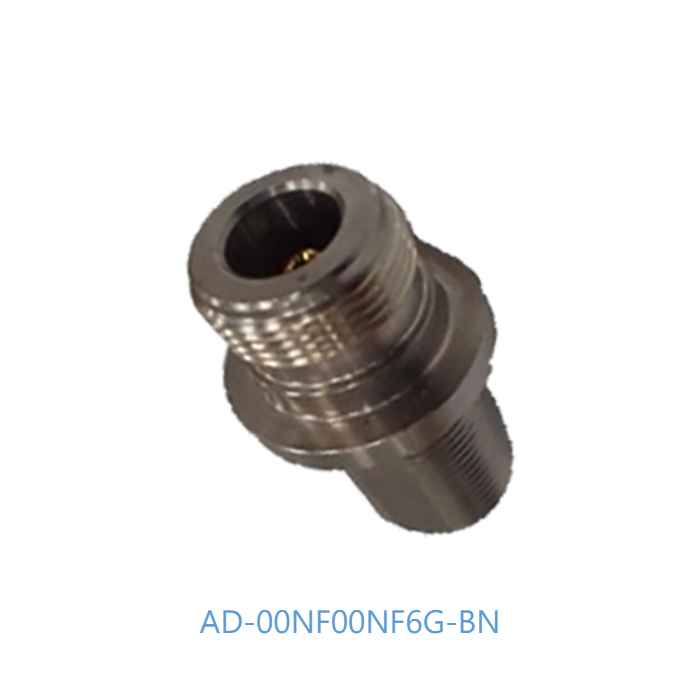

N-Type Female Precision Adapter
Model: AD-00NF00NF6G-BN | DC - 6GHz | Female to Female
The AD-00NF00NF6G-BN is a high-performance coaxial adapter designed for seamless signal transition and equipment coupling. Optimized for a frequency range up to 6GHz, it ensures minimal signal loss and reflection with an industry-leading VSWR profile. This adapter is a critical component for laboratory testing, telecommunications infrastructure, and advanced wireless deployments where Signal Integrity must be maintained across diverse operating environments.
Core Electrical Specifications
| Frequency Range | DC to 6GHz |
| V.S.W.R (MAX) | 1.1 : 1 |
| Impedance | 50 Ohm |
| Series Type | N-Female to N-Female |
| Contact Gender | Female to Female |
Material & Mechanical Parameters
| Body Material | Copper Nickel-Plated |
| Center Pin Material | Gold-Plated Pin |
| Outline Configuration | Straight |
| Connector Standard | MIL-STD-348 |
| Manufacturing Origin | Taiwan Design & Made in Taiwan |
Key Tactical & Engineering Features
High Shielding Effectiveness
The precision-machined copper nickel body provides excellent EMI shielding and structural rigidity, essential for maintaining Signal Integrity in complex RF environments.
Low Loss Connection
Gold-plated center pins ensure superior conductivity and minimize insertion loss across the entire 6GHz spectrum, providing reliable measurements for high-speed data links.
Universal N-Type Interface
Features a standardized N-type female-to-female interface, allowing for flexible integration with standard RF cables, antennas, and laboratory test equipment.
Durable Field Design
Engineered for mechanical longevity and corrosion resistance, ensuring stable electrical contact over hundreds of mating cycles in both lab and field deployments.
