Description & Specification

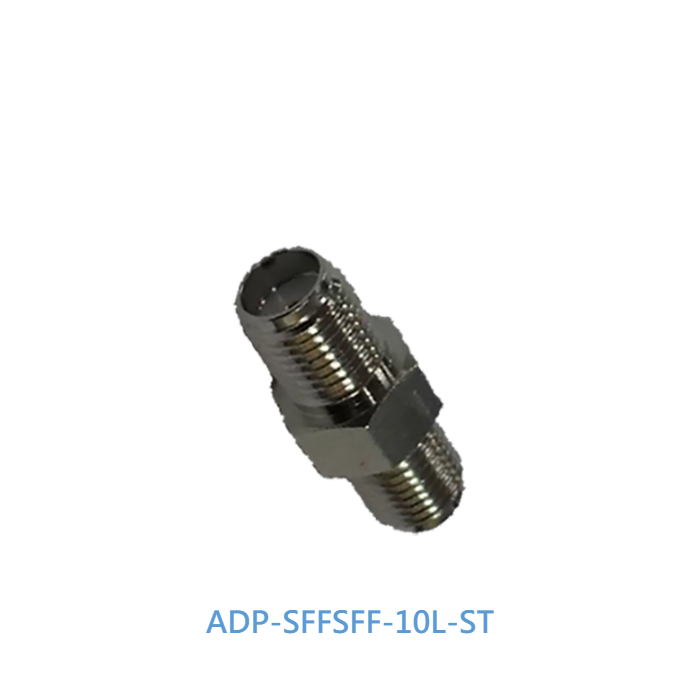

SMA Female Bulkhead Precision Adapter
Straight Configuration | DC to 10 GHz | Model: ADP-SFFSFF-10L-ST
The ADP-SFFSFF-10L-ST is a high-performance coaxial bulkhead adapter professionally designed and manufactured by Fei Teng Wireless Technology Co., Ltd. (FT-RF) for precision signal coupling through equipment panels. Operating within the high-frequency microwave spectrum across the continuous DC to 10 GHz band, this premium adapter ensures minimal signal reflection and insertion loss with an industry-leading maximum V.S.W.R profile of 1.15 : 1. Featuring an SMA-Female to SMA-Female straight interface layout, it establishes a secure, grounded signal transition through chassis walls for satellite and telecommunications hardware. Precision machined from passivated stainless steel in Taiwan to meet the strict MIL-STD-348A connector standard, it exhibits exceptional structural durability over a minimum of 500 mating cycles. It stands as a critical asset for laboratory instrumentation, telecommunications enclosures, and advanced dense system racks where total Signal Integrity and maximum EMI/RFI shielding effectiveness must be maintained flawlessly.
Core Electrical Specifications
| Frequency Range Class | DC to 10 GHz (Broadband Precision Spectral Optimization) |
| Series Interface Type | SMA-Female to SMA-Female |
| Contact Gender Profile | Female to Female Bulkhead |
| V.S.W.R Profile (Max) | 1.15 : 1 (Precision Minimal Reflection Performance) |
| Nominal System Impedance | 50 Ohms |
Material & Mechanical Parameters
| Outline Configuration | Straight Bulkhead Panel-Mount Layout |
| Connector Standard Compliance | MIL-STD-348A Standard Mating Interface |
| Structural Body Material | Stainless Steel (Durable Passivated Finish) |
| Mating Cycles Longevity | 500 Cycles Minimum Mechanical Rating |
| Manufacturing Origin | Taiwan Design & Made in Taiwan (FT-RF Professional Grade) |
Superior Structural Integrity
Constructed from premium passivated stainless steel, this adapter offers exceptional durability and high mating cycle life, ensuring reliable performance in harsh RF testing fields.
Bulkhead Mounting Design
Specifically engineered for panel-mount configurations, providing a secure, grounded signal transition through chassis walls for defense and telecommunications hardware modules.
Broadband Precision
Maintains a perfectly flat VSWR response up to 10 GHz, making it ideally suited for critical X-band applications, 5G NR testing setups, and advanced microwave circuitry.
High Shielding Effectiveness
The robust stainless steel body paired with precision-machined threads provides maximum EMI/RFI shielding, essential for clean Signal Integrity in dense system racks.
Contact FT-RF Engineering Team
Contact our technical engineering division today to request official quote sheets, custom chassis layout consulting, certified S-parameter plots, or high-volume package pricing.
